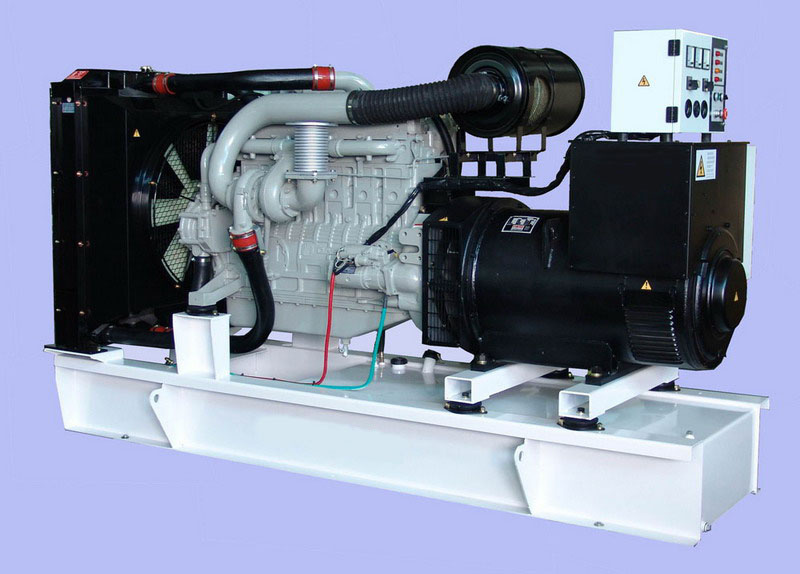

50KVA Doosan Generator
Korea Doosan-Daewoo Series Generators/Diesel Generators/Diesel Generator Sets/Generator Sets/Gensets Power From 25KVA up to 750KVA, with compacted structure and best configuration.
Engine and alternator mounted on the same frame steel skid.
Built-in damper for anti-vibration.
Small size, low weight, easy to operate, installation and maintenance.
World most famous brand diesel engine. Ricardo series engine.
World famous brand AC alternator: Stamford, Marathon, Leroy Somer, etc.
Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485.
Full range protect function and alarm shutdown feature.
Control Systems
Standard control panel is the basic configure for normally operation and usage. The advantages of this panel are easy operation, aomprehensive function and reliable protection and so on. There are indicating gauges, lamps, transfer switches and emergency stop button, etc. The control panel wil stop the whole generator set and alarm as well when malfunction appears.
LED Automatic Control Panel is a kind of intelligent controller with LED displaying the operating mode of the controller and the running state of the generator sets. It can configure the control procedure and protection parameter of the generator set, and completely satisfied the automatic controlling requirement of the generator sets for the user or factory.
LCD Automatic Control Panel is the configuration for nobody on duty controlling generator sets. This kind of panel adopts module control system, with large LCD screen to show the menu. The module can receive output signal from ATS and realize automatic start and stop the generator sets.
1, Korea Doosan Daewoo Diesel Engines
2, CE Approved
3, Competitive Price & Fast Delivery
4, One Year Warranty
General Data Sheet
Genset
Model |
Prime
power
(kw) |
Standby
power (kw) |
Engine
Model |
Broke × Stroke (mm) |
Fuel
consumption (L/H) |
Governor type |
Weight (kg) |
Dimension (LxWxH) (mm) |
|
HF20DS |
20 |
22 |
DB33 |
102*100 |
6.9 |
Electronic |
700 |
1550× 700× 900 |
|
HF30DS |
30 |
36 |
P034TI |
102*100 |
10.6 |
780 |
1550× 700× 1400 |
|
HF45DS |
45 |
50 |
DB58 |
102*118 |
13.8 |
1050 |
2050× 800× 1400 |
|
HF64DS |
64 |
70 |
D1146 |
111*139 |
20.8 |
1250 |
2395× 800× 1400 |
|
HF90DS |
90 |
100 |
D1146T |
111*139 |
27 |
1500 |
2500× 800× 1300 |
|
HF128DS |
128 |
140 |
P086TI-1 |
111*139 |
36 |
1750 |
2600× 950× 1400 |
|
HF155DS |
150 |
170 |
P086TI |
111*139 |
42 |
1850 |
2600× 950× 1400 |
|
HF200DS |
200 |
220 |
P126TI |
123*155 |
54 |
2350 |
3000× 1010× 1480 |
|
HF250DS |
250 |
275 |
P126TI-II |
126*155 |
62 |
2480 |
3000× 1010× 1480 |
|
HF300DS |
300 |
320 |
P158LE-1 |
128*142 |
78 |
2800 |
3000× 1380× 1800 |
|
HF320DS |
320 |
360 |
P158LE |
128*142 |
86 |
2850 |
2900× 1380× 1800 |
|
HF400DS |
400 |
440 |
P180LE |
128*142 |
111 |
3200 |
3150× 1385× 1750 |
|
HF500DS |
500 |
550 |
P222LE |
128*142 |
130 |
3650 |
3350× 1385× 1800 |
|
HF550DS |
550 |
600 |
P222LE-II |
128*142 |
162.6 |
3950 |
3650× 1385× 1800 |
YANCHENG HAIFU POWER MACHINERY Co., Ltd. located in Yancheng High-Technology Development Zone. Here, congregated many world famous manufacturers. HAIFU Power owns the modern diesel genset's production scope covering an area of 10, 000 square meters, with an assembly workshop of 5, 000 square meters.
HAIFU Power devoted itself to research, manufacture and maintenance of famous diesel gensets in the past 15years. Capacity from 5KW up to 1500KW. With the steady quality and advanced manufacturing technique, HAIFU Power has won widely acclamation from both competitors and customers all over the world.
HAIFU Power has long-term cooperation with world leading companies, such as: Cummins, Perkins, Volvo PENTA, Deutz, Lovol, Doosan, Yanmar, Kubota, Stamford, Leroy Somer, Marthon etc.
HAIFU Power excellent products originates from not only scientific management and advanced manufacturing technique, but also our people's continuous quality awareness. Each manufacturing procedures from outside inspection, engine machining, electric wiring to spray-paint are under strict quality control.
Our conception is to supply gensets with advanced technology, reliable quality and environmental-protection. With this conception, HAIFU Power keeps updating of technology and improvement of quality all the time.
ADVANCED, RELIABLE, ENVIRONMENTAL - YOUR BEST CHOICE!
