Home Generator Products 50kVA Cummins Diesel Generator Super Silent

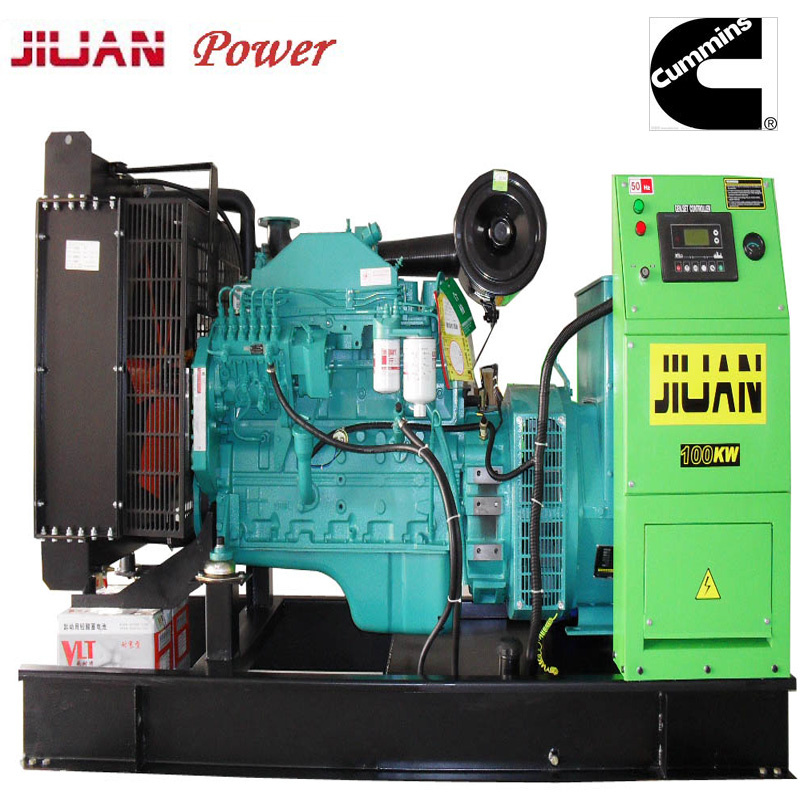

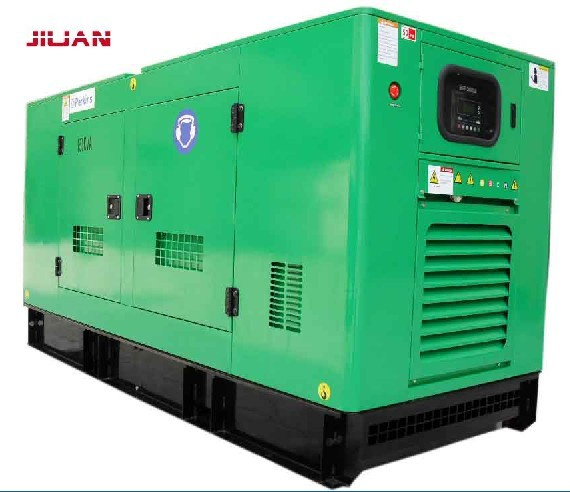

50kVA Cummins Diesel Generator Super Silent

50kVA Cummins Diesel Generator Super Silent
Price: US $ 2000-20000/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
JIUAN Diesel Generator Set Advantage:
·  50Hz@1500rpm or 60Hz@1800rpm all are available
· AVR delivers non fluctuating power
· Panel type digital control panel
· 12 Volt / 24 Volt electric starter ensures easy starting
· Low oil pressure shut down system
· Low fuel cut out protection
· Low water cut out engine protection
· Enclosed structure ensures quieter operation
· Alternator (Dynamo) excitation mode brushless self excitation
· Three-phase output meets differing requirements
· Four Cylinder, four stroke, water cooled diesel engine
· 8 hours running @ full load on a single tank of fuel
· Dual access doors for easy maintenance
· Optional automatic or manual transfer switches available
· ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
· Weatherproof and soundproof, enclosure high grade steel protected by powder coat painting and incorporate internally mounted exhaust silencers
· Noise Level (65-70dBA @ 7m)
· All ratings are at sea level

After-sales Service:
1 year or 1800 running hours subject to the earlier one.
24 hours after-sales contact number: 0086 18520604611

Contact Sales Manager
24 hours after-sales contact number: 0086 15817087202

Our Diesel Generator Set Production Range is as follows:

* Engine (motor) for Choice

1. Cummins (USA ) 20kVA - 2000kVA
2. Deutz (Germany) 20kVA - 150kVA
3. Perkins (UK) 8kVA - 2000kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Lovol (China) 20kVA - 150kVA
6. Yangdong (China) 8kVA - 40kVA
7. Weichai (China) 8kVA - 150kVA
8. Shanghai Engine
9. Yuchai Engine
10. KUBOTA Engine 10kVA - 50kVA

* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System

JIUAN Generator Certificate:

Cummins Generator MODEL CD-C40KW/50KVA
                                                          Generator Powered by Cummins Engine
Prime Power (50HZ) 40KW/50KVA
Standby Power (50HZ) 50kw/63KVA
Power Factor 0.8
Phase Wires 3-phases 4-Wires
Start Model Electric
Protection Low oil-pressure, High water temperature, Over-speed, Over-current
Engine Model 4BTA3.9-G2
Cylinders 4
Cylinder Arrangement L
Bore x Stroke(mm) 102X 120
Compression Ratio 16.5:1
Speed 1500rpm
Cooling Method Water – cooled
Starting Method 24V DC electrical start
Full Load Diesel Consumption (L/H) 13
Engine Displacement (L) 3.9
Inspiration  (L) Natural
Lube Volume  (L) 14.5
Coolant Volume  (L) 25
Noise (Db) ≤ 80
Alternator Model Stanford Copy224D
Alternator Power 40KW/50KVA
Voltage According to customers
Protection IP23
Voltage Regulation ±4%
Insulation Class H
Voltage Control AVR
Net Weigh (KGS) 950
Dimensions (L x W x H) mm 2300*1000*1400
Optional ATS (auto transfer switch)
  Auto Battery Charger
  Base fuel tank (for open type)
Prod Model: CDC50KVA
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Generator Engine: Cummins Dcec
50kVA Cummins: Automatic
Cummins Generator: Silent Super Silent or Open Type
Cooling Method: Water Cooling
Stroke: Four Stroke
Installation Method: Fixed
Type: Basic Diesel Generator
Output Type: AC Three Phase
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.

Our Diesel Generator Set Production Range is as follows:

* Engine (motor) for Choice

1. Cummins (USA ) 20kVA - 1500kVA

2. Perkins (UK) 8kVA-1000kVA

3. Deutz (Germany) 20kVA - 150kVA

4. ISUZU (Japanese) 20kVA - 40kVA

5. Kubota (Japanese) 7kVA-50kVA

6. Lovol (China) 20kVA - 150kVA

7. Yangdong (China) 8kVA - 40kVA

8. Weichai (China) 8kVA - 150kVA

9. Shanghai Engine

10. Yuchai Engine

* Canopy for Choice

1. Silent type (75- 80 dB(A) at 7 meters)

2. Super Silent type (65-70 dB(A) at 7 meters )

3. Open type

4. Trailer type (mobile)

5. Container Type

6. Parallel System

* Alternator for Choice

1. Stamford

2. Leroy Somer

3. Marathon

* Controller

1. Smartgen

2. Deepsea (UK Brand and imported)
