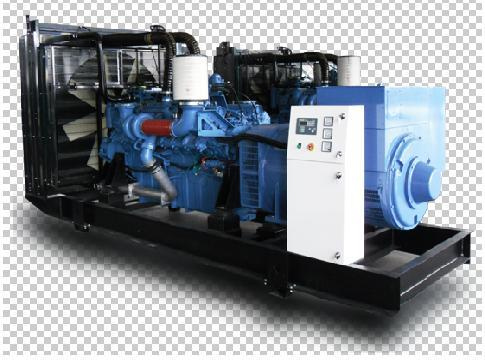

Gas generator set with high quality, low fuel consumption, less vibration and noise, meeting requirments of Class G3 and Class G4
As the knockout products of superwatte, Superwatt gas generator sets are driven by strong power of Lovol engines. It is economy in fuel cusumption and excellent in environmental protection attributing to excellent manufacture of SWT gas generator sets.
50Hz(1500RPM)-3Phase 400V/230V
50Hz gas generator set, gas turbine generator, electricity generation
Genset Model |
GLP34P |
GLP50P |
Prime Power(kW/kVA) |
27/34 |
40/50 |
Standby Power(kW/kVA) |
30/38 |
44/55 |
Engine Model |
1004GN |
1006GN |
Frequency(Hz) |
50 |
Speed(rpm) |
1500 |
Engine Characters |
Nature Aspiration,Water-cooled |
Number of Cylinders |
4 |
6 |
Bore X Stroke(mm) |
100 X 127 |
Displacement(L) |
3.99 |
5.98 |
Speed Stability(%) |
≤5% |
≤5% |
Fuel |
Natural gas |
Valve,Inlet Cold Gap(mm) |
0.2 |
Exhaust Cold Gap(mm) |
0.45 |
Starting system |
Electronic starting |
Governor type |
Electronic |
Gas consumption(m /kW.h) |
≤0.33% |
Altitude capability(m) |
2700-3000 |
Gas pressure(kg/cm ) |
2-4(standard layout)or80-200(optional) |
Weight(kg) |
930 |
Dimension(L*W*H)(mm) |
2000*1100*1150. |
