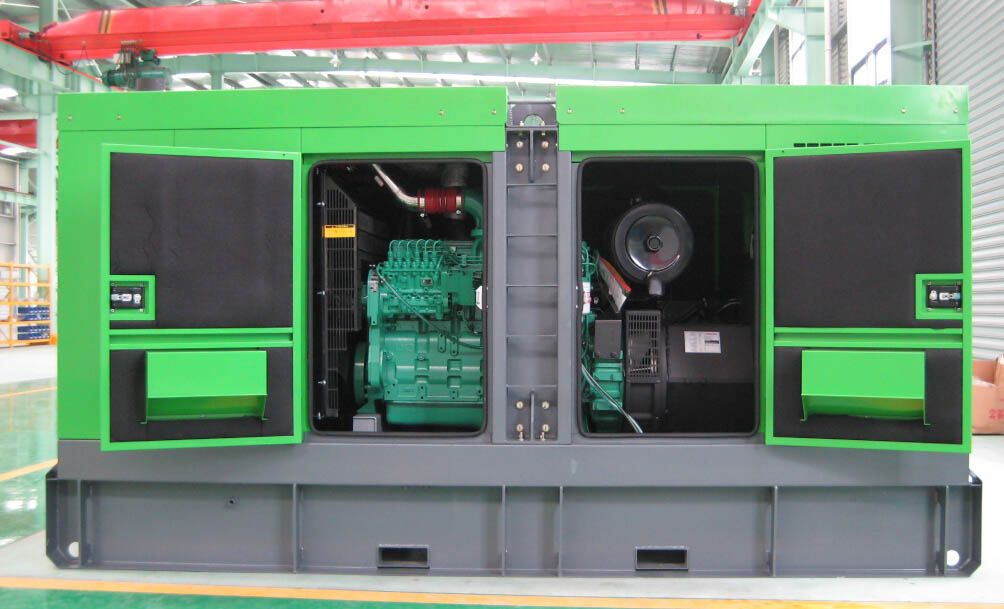

50Hz 380V Cummins 80KW standby soundproof electric generator
Engine:Cummins 6BT5.9-G1
Alternator:Godlike JDG274C
Control pane:Deepsea harsen Gu320b
Power:82kw/103kVA
Type:Soundproof/silent/weatherproof/enclosures
1, Cummins engine incorporating with radiator cooling and battery charging alternator.With 50 degreee radiator.
2, Various Voltage available but coupled alternator model may be changed.
3, Leroy Somer Brushless Alternator, Single Bearing, Flange Connection, IP23, Insulation Class H, AVR Fitted.(Stamford, Engga and Marathon for Option)
4, Vehicle Power Station with 8 Working Hours Base Fuel Tank(for the both of open & silent genset ≤650kVA prime, only Base Frame for other models), AVM Suspension System, Set-mounted Exhaust System, Battery, Battery Charger and Lead supplied
5, Vehicle Power Station with Delixi Breaker, ABB Breaker for Option
6, Complete Operation/Maintenance Manuals for Vehicle Power Station /Engine/Alternator, Vehicle Power Station testing report
7, Warranty:One year or 1000 Working Hours from the shipment date, whichever comes first.
8, Calsion Diesel Generator, Power generator, Electric Generator, Power Station, Genset, Generator, Generator set
Compliance Standards:
To BS4999/5000 PT 99, VDE 0530, UTE5100, NEMA MG1-22, CEMA, IEC 34,
CSAA22.2, AS1359, BSS 5514, ISO 3046 and ISO 8528
| Technical parameters of diesel generator sets: |
| Generator Set |
| Generator Model | GF80C |
| Prime Power | 80kw |
| Rated Voltage | 400/230V |
| Frequency | 50Hz |
| Power Factor | 0.8(lagging) |
| Dimension (L×W×H) (mm) | 2150*850*1300 mm |
| Genset weight (kg) | 1100 kg |
| Diesel Engine |
| Brand | Cummins |
| Type | 6BT5.9-G1 |
| Number of Cylinders | 6 |
| Rotating Speed | 1500RPM |
| Cycle | Four stroke |
| Cooling Method | Water Cooling |
| Bore×Stroke(mm) | 102*120 |
| Displacement(L) | 5.1 |
| Compression Ratio | 17.5:1 |
| Speed Governor | Electrical |
| Cooling System | Water-cooled |
| Total Lubrication System Capacity (L) | / |
| Fuel Consumption at 100% Load | 20.5 L/H |
| Starting Method | 24V Electrical starting |
| Alternator |
| Brand | Shanghai Stamford |
| Model | HJI80 |
| Prime/Standby Power | 80kw |
| Connecting Type | 3 Phase and 4 Wires |
| Number of Bearing | single |
| Protection Grade | IP23 |
| Altitude | ≤1000M |
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating |
| Insulation Class | H |
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.
Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.
GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.
GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to GODLIKE.
