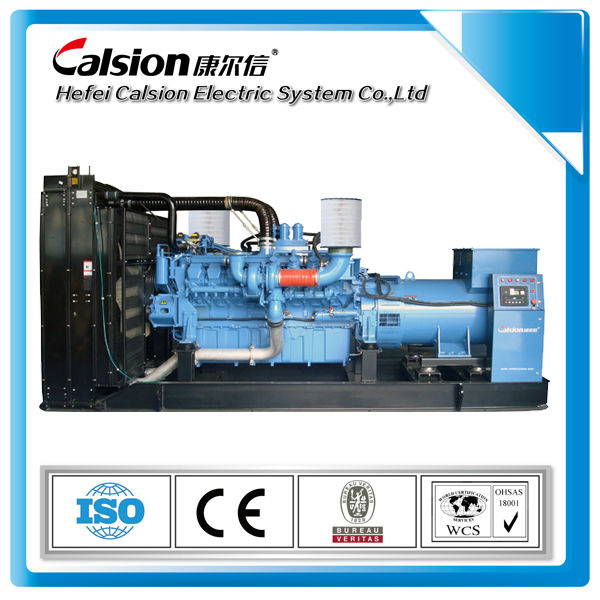

50hz 6.6KV 2000kva Diesel Electric Generator with Germany MTU engine
Diesel Electric Generator Supply Scope:
1, Various Voltage available but coupled alternator model may be changed. For detailed inquiry, pls contact Calsion sales.
2, Leroy Somer Brushless Alternator, Single Bearing, Flange Connection, IP23, Insulation Class H, AVR Fitted. (Stamford, Engga and Marathon for Option)
3, With 8 Working Hours Base Fuel Tank(for the both of open & silent genset ≤ 650kVA prime, only Base Frame for other models), AVM Suspension System, Set-mounted Exhaust System, Battery, Battery Charger and Lead supplied
4, With Delixi Breaker, ABB Breaker for Option
5, Complete Operation/Maintenance Manuals for generator /Engine/Alternator, Cummins generator testing report
6, Warranty: One year or 1000 Working Hours from the shipment date, whichever comes first.
Optional Diesel Electric Generator Accessories:
Engine | Heaters |
|
|
Alternator | Single phase, three phase | Brushless, carbon brush | High Voltage |
Control System | Key Start/Auto Start Controller | Remote Controller | ATS Controller Synchronization Controller |
Fuel System | Outside Fuel Tank |
|
|
Generator Type | Weatherproof/Soundproof Type | Container Type | Trailer/Vehicle type |
Spare Parts | Oil filter, air filter, tank pad, Triangle Belt, tools and Engine Parts Drawing List, etc |
Diesel Electric Generator allocation:
Genset Model | Prime Power (kw/kva) | MTU Engine | Leory Somer Alternator |
C1250M/C1250MS | 1000 | 1250 | 12V4000G21R | LSA50.2 M6 |
C1425M/C1425MS | 1140 | 1425 | 12V4000G23R | LSA50.2 L8 |
C1575M/C1575MS | 1260 | 1575 | 12V4000G23 | LSA50.2VL10 |
C1700M/C1700MS | 1360 | 1700 | 12V4000G23 | LSA50.2 S55 |
C1800M/C1800MS | 1440 | 1800 | 12V4000G63 | LSA50.2 S55 |
C1888M/C1888MS | 1510 | 1888 | 12V4000G63 | LSA51.2 M60 |
C2000M/C2000MS | 1600 | 2000 | 16V4000G23 | LSA51.2 M60 |
C2150M/C2150MS | 1720 | 2150 | 16V4000G23 | LSA51.2 L70 |
C2250M/C2250MS | 1800 | 2250 | 16V4000G63 | LSA51.2VL85 |
C2500M/C2500MS | 2000 | 2500 | 20V4000G23 | LSA51.2VL95 |
C2648M/C2648MS | 2118 | 2648 | 20V4000G23 | LSA53.1 M80 |
C2913M/C2913MS | 2330 | 2913 | 20V4000G63 | LSA53.1 M80 |
C3125M/C3125MS | 2500 | 3125 | 20V4000G63L | LSA 54 M75 |
