Generator Manufacturers and Factories

Home Generator Products 50Hz 300kVA 240kw Googol Diesel Silent Electric Power Generator

50Hz 300kVA 240kw Googol Diesel Silent Electric Power Generator

50Hz 300kVA 240kw Googol Diesel Silent Electric Power Generator
Price: US $ 17500-18500/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T

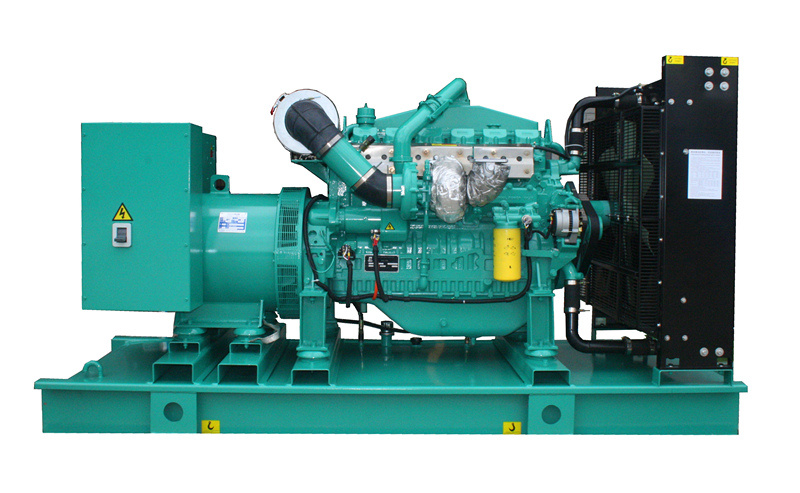

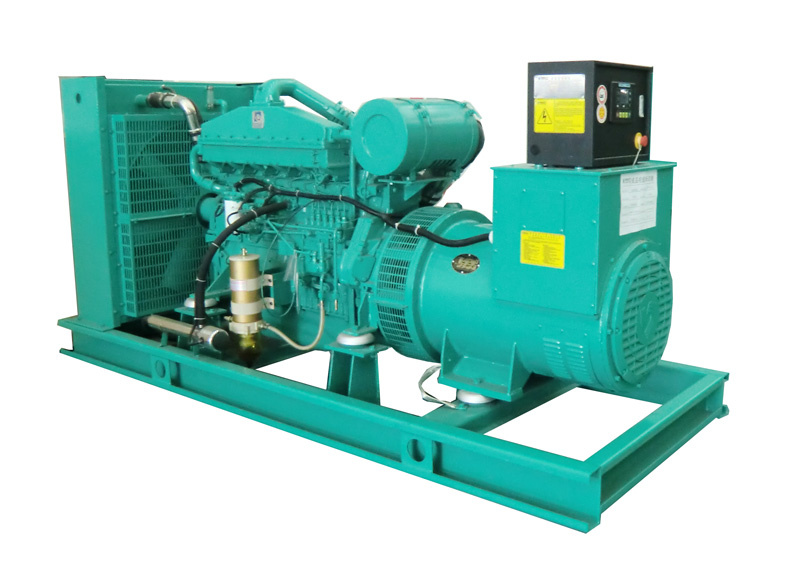

50Hz 300kVA 240kW Googol Diesel Silent Electric Power Generator

Performance Feature
Engine and alternator shall be mounted on a same frame steel skid.
Built-in damper for anti-vibration.
Small size, low weight, easy for operation, installation and maintenance.
World most famous brand diesel engine.
CUMMINS, PERKINS, Volvo PENTA, DOOSAN, DEUTZ, LOVOL, WUXI POWER, GOOGOL, CSR.
World famous brand AC alternator: Stamford, Marathon, Leroy Somer, MVC.
Advanced and reliable controller: Key start, Auto start, AMF & Remote control by PC with RS232 / 485.
Full range protect function and alarm shutdown feature.
Comply with GB/T2820-97, ISO8528 national standard and ISO9001 quality standard.

Alternator Feature
Brushless, 4 poles, rotation magnet.
IP21-23 enclosure is standard for all industrial alternators.
The insulation system is Class H.
Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts.
Wide range of flange adaptors and single bearing disc coupling.
Standard 2/3 pitch windings avoid excessive neutral currents.
Optional accessories available for easy paralleling with mains or other generators.
Optional permanent magnet generator ( PMG ) system provide constant excitation under all condition.
AVR auto voltage regulator, auto exciter, auto adjustment.
Standard: BS5000, VDE0530, NEMA MG1-32, IEC34, IEC60034, AS1359.

Control System
GCS6410 is an Automatic Mains Failure module which is designed to monitor the mains utility and on failure automatically starts the generator and transfers the load. On return of the mains utility the controller automatically returns the load to the mains and stops the generator after a cool down period.
The module also monitors and protects the engine, indicating operational status, fault conditions and metering on the front panel LCD or LED's.
Ture RMS measuring
Configuration of parameters by front panel push buttons or communication software
RS485, RS232, or USB port for remote communication.
Configurable fuel output energise to stop or energise to run.
6 configurable inputs.
3 configurable outputs.
2 analogue inputs configurable for different senders for oil pressure and engine temperature.
With ATS control.

Standard Accessory
Common steel base frame, Damper, Exhaust silencer, Flexible pipe, Battery connecting wires, Operation manual and document.
Optional Accessory
Circuit breaker, Starting battery, Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Control system with RS232/485 communication interface, Battery charger by main supply. Fuel-water separator, Daily fuel tank, ATS & parallelin system, Soundproof canopy and Moving trailer.
Quality Warranty Period
All equipment is guaranteed for a period of 1000 hours running or 12 months from the date when the generator set has been delivered from the factory.
Integrated Power Solutions
Emergency rescue system solutions for mobile power.
Uninterrupted backup power system solutions for villa.
Complex commercial real estate solutions for backup power systems.
Power and pneumatic Integration solutions for mining.
Precision manufacturing and industrial enterprise backup power systems solutions.
Pulp and paper plant backup power systems solutions.
Star hotel and high-level office backup power solutions.
Large data memory center and high-speed generator sets power systems solutions.
Automatic high-speed Integration parallel and the power grid system solutions.
Generator setGenset ModelHGM343
Rating Power (kW/kVA)250/312.5
Standby Power (kW/kVA)275/343
System Voltage 400/230
Rating Ammeter (A)451
Diesel engineGeneral dataEngine modelPTA780-G1
Prime Power (KW)290
Standby Power (KW)330
number of Cylinder & Configuration6 cylinders in line
Bore X Stroke (mm)128X166
Displacement (l)12.8
Compression Ratio15.5:1
Governor typeElectronic governor
Rated speed (rpm)1500
Exhaust systemExhaust gas flow (m³/min)54
Exhaust gas temperature (ºC)480
Max. exhaust back pressure (kPa)10
Air intake systemAspiration TypeTurbocharged & After cooled
Max. intake depression (mbar)6
Combustion air Volume (m³/min)21
Fuel systemRating Fuel Consumption(l/h)64
75% full Fuel Consumption (l/h)48
Lubrication systemTotal oil capacity (l)40
Max permissible oil temp  (ºC)110
Oil pressure at rated rpm (KPA)240-350
Cooling systemTotal Coolant capacity (l)65
Max. temperature of coolant  (ºC)100
Fan cooling air flow (m³/min)490
AlternatorAlternator modelMGA315-250-4S
Rating Voltage(V)400/230
Rating Capacity(KW/KVA)250/312.5
Eff.%93.2%
Power Factor0.8
Exciting typeBrushless self-exciter AVR
Voltage regulation±1%
No. of  Phase3 phase 4 wire
Enclosure ClassIP121
Class of InsulationH
BatteryRating Capacity(AH)2X150AH 12V
DimensionGenerator set dimension  (LXWXH)2900x1120x1550
WeightGenerator set Net Weight (kg)2380


Prod Model: HGM343
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine Model: Googol Pta780-G1
Alternator: Stamford, Marathon, Leroy Somer, Faradi, Engga
Controller: Harsen, Deep Sea, Datakom, Deif, etc.
Engine: ISO9001, GB/T2820-97, ISO8528
Alternator Standard: BS5000, VDE0530, NEMA Mg1-32, IEC34, IEC60034, As1
Optional Parts: Water & Oil Heater, Oil-Water Separator, Air Break
Optional: Silent / Waterproof Canopy, ATS, Parallel Syst
Warranty Period: 1 Year or 1000 Hours Running, Which Is Coming Firs
Speed & Frequency: 1500rpm 50Hz
Rated Voltage: 220/380V Adjustable
Type: Self-Starting Diesel Generator
Installation Method: Fixed
Stroke: Four Stroke
Cooling Method: Water Cooling
Output Type: AC Three Phase
Guangdong Honny Power-tech Co., Ltd was founded in year 1992, and has been one of the leading power generation solutions and manufactures in China.We specialize in assembly, design, sales, installation, maintenance, and service of power generators.Honny owns strong technical team who widely design and install engineering for different standby power supplying requirement.As a starting point with providing most suitable standby power supplying solution, we perform special design and manufacturing for each project.In order to providing fast and convenient service support, with 20 years of continuous development, Honny set up 2 wholly-owned large-scale manufacturing factories, 2 R&D design centers and 41 wholly-owned sale and service offices in south China, east China, northeast China, north China, northwest China and southwest China area.The total business area is up to 250, 000 square meters, nearly 1, 000 employees and annual sales of more than 500 million RMB.

In order to continuously create more value for customers, Honny the first in generator field to establish exclusive service brand "Honny quality care", through setting up E-office system and Honny institute, regular free technical training, regular customers return visiting, information management for each customer, regular draw up training manual follow with the generator field status, establish a strong service network and a series of activities to ensure every customer with enjoying standard, intimate, fast Honny quality care services.

For keeping our constant competitive advantage, in the past 10 years, we invest much to overcome difficulties and obstacles, devote themselves to a number of ongoing new product research and development.We carry out several technical cooperation and joint product research and development work with China South Locomotive Group, France's Total Group(TOTAL), China's first aircraft institute, and many global leading engine parts manufacturers.Among the products, the large capacity AC alternators with independent intellectual property rights by Honny had been used in 2005.Honny's independent intellectual property rights with China's first generation, gas compression multi-functional integrated equipment successfully developed and delivered to users in 2007.With our own intellectual property rights, 275-2200KW high-horsepower high-speed diesel engines gradually will be put into the market in the second quarter of 2010.The success of these products has been developed to effectively fill the gaps in the domestic industry and to become China's ability to master the core technology and equipment manufacturing.

Under 18 years of tireless work and painstaking efforts, Honny reelected for five consecutive years in China's best power solutions integrator from 2004 to 2008, and won the Guangdong high-tech enterprises, Guangdong Famous Brand, Guangdong Top Brand, Dongguan Top 50 private enterprises in 2006-2008 for 3 consecutive years, Dongguan enterprise of observing contract and valuing credit in 2006-2008 for 3 consecutive years, Dongguan patent nurturing enterprise, Dongguan private technology enterprises, the founder Wen Guosheng won the Dongguan inaugural honor outstanding private entrepreneurs.

To promote the health of long-term development of enterprises, Honny launched the "talent, brand, culture, " three major development strategies in 2007.With the "Good attitude, promote development" concept, Honny is committed to building the greatest power solutions provider in the world.
