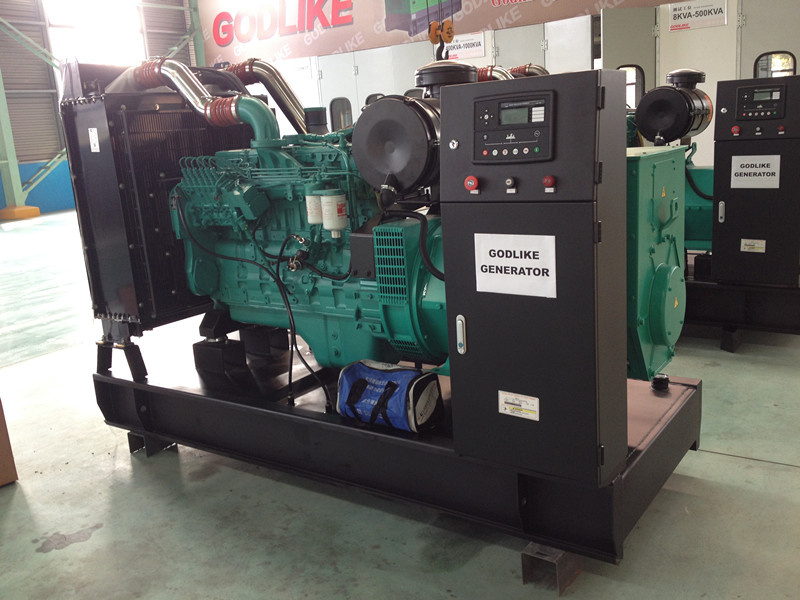

50Hz 160kw/200kVA Open Type Diesel Generators Cummins (6CTAA8.3-G2) (GDC200)

Name: 50Hz 160kw/200kVA Open Type Diesel Generators Cummins (6CTAA8.3-G2) (GDC200)
Brand: aboutgenerator.com
SKU: 758732345
Availability: InStock
Rating: 4.7 (78 reviews)

Price:	US $ 16750/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Jiangsu GodLike Power Technology Co., Ltd.

Showroom Product Company Profile

50Hz 160kw/200kVA Open Type Diesel Generators Cummins (6CTAA8.3-G2) (GDC200)
Scope of Supply:
1-Brand new engine and brushless AVR controlled alternator
2-Set mounted Smartgen Auto Controller
3-MCCB(Circuit Breaker), Emergency stop button, low oil pressure shutdown, high engine temperature shutdown.
4-Rubber Anti Vibration Mounts and skid basefram with 6-8hours integral fuel tank.
5-Genset equipped with battery charger and 24V high performance lead acid starting batteires and connecting with cables.
6-Genset equipped with industrial silencer and flexible exhaust hose.
7-Genset equipped with fan and closed circuit cooled radiator(40degree centigrade).
8-Genset with filtering systems including air filter, fuel filter & lub-oil filter.
9-Supply relative documents(testing report, diagram, operation/maintenance manual/spare parts manuals)for engine and alternator

Engine specification
1.20kw-1000kw CUMMINS engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption

Alternator: Stamford
Option with: Marathon, Lorysomer,
A) three phase brushless generator, self-excited, 4-pole, single bearing
B) AVR self-regulated, voltage regulation rate ≤ ± 1%
C) IP23 protection grade
D) Class H insulation
E) Radio interference restraining accords with stipulation of VDE0875-N and ISO8528
F) Moistureproof, sand-proof, dustproof, salt-proof and vibration-proof

Control system:
1. Automatic cutter which is suitable for the generator power
2. Turn on key
3. A device to measure the generators speed
4. Counter for measuring the Operating hours
5. Device to measure the current overload with a switched current
6. A device to measure the battery voltage
7. Voltmeter with a voltage exchanger
8. A device to measure the frequency
9. Thermostat to regulate the voltage
10. A device to measure the oil pressure
11. Alerting lamps indicating low and high temperature
12. Controller of the current increase and short circuit
13. Emergency stop button

Warranty:
12 months or 1000 running hours from shipment date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset-body instead of external or natural reasons. (Refer to all kinds of natural disaster, shipping, loading, unloading, wrong-operation, etc), we will supply the relevant spare parts free of charge for maintenance; After the warranty period, we can supply the required spare parts for you under cost prices
Our service quality assurance:
1)Before-sale Service: We provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance: Our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service: We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.

Diesel Generator Specifications
Manufacturer:				Jiangsu Godlike Power Generator Co.,Ltd
Model:				GDC200
Prime Power:				160KW / 200KVA
Standby Power:				176KW / 220KVA
Frequency:				50HZ
Voltage:				400/230V
Phase:				3 Phase
P.F(COS¢):				0.8
Fuel:				Diesel
Rated Current:				288A
Start Method:				24V DC Start Battery
Accessory:				Battery, wire, exhaust pipe, muffler
Altitude:				≤1000m
Engine Specifications
Brand and Model:				Cummins NT855-GA
Aspiration:				Turbocharged
Cylinder Arrangement:				6 in line
Displacement:				7.01L
Bore and Stroke:				105×135 mm
Compression Ratio:				16.0:1
Rated RPM:				1500rpm
Maximum Output Power:				192KW
Governor Type:				Electronic
100% Load Fuel Consumption:				205g/Kw.h
Total Lubrication Capacity:				16.5L
Total Coolant Capacity:				21.0L
Cooling System:				Forced water cooling cycle
Alternator Specifications
Manufacturer:				Mecc Alte Alternator (Haimen) Ltd
Model:				ECO38-2SN/4
Rated Capacity:				200KVA
Winding:				100% Copper Wire
Frequency:				50HZ
Speed:				1500 RPM
Connecting Type:				3 Phase and 4 Wires, "Y" type connecting
Power Factor:				0.8
Protection Grade:				IP23
Alternator Warranty:				2 Year No Time Limited
Exciter Type:				Brushless, self-exciting, with AVR
Insulation Class, Temperature Rise:				H/H
Voltage Regulation:				≥±5%
Control System Specifications
Manufacturer:				DEEP SEA ELECTRONICS PLC (UK)
Model:				DSE6020
Type:				AMF Automatic Operation
Operation:				Automatic Start and Auto Mains (Utility) Failure Control
Alarm Protect:				Engine pre-heat, Current monitoring, Comprehensive Shutdown, Charge Failure
Size and Weight
Open Type Overall Size:				2850mm850mm1350mm
Weight:				1400 KG
Soundproof Type Overall Size:				3400mm1130mm1950mm
Weight:				2360 KG

CUMMINS configuration and technical data

50HZ, 3 Phase, 400/230V
No.	GENSET Model	OUTPUT POWER 1500RPM 50HZ				Engine Model	Alternator Model		Cyl.	Disp.	Bore *Stroke	Fuel Cons.
No.	GENSET Model	Prime KVA	Prime KW	Standby KVA	standby KW	CUMMINS	GODLIKE	STAMFORD	(nos)	(L)	(mm)	(g/kw.h)
1	GDC20*S	20	16	23	18	4B3.9-G1/G2	JDG164D	PI 144D	4	3.9	102*120	215
2	GDC25*S	25	20	28	22	4B3.9-G1/G2	JDG184F	PI 144E	4	3.9	102*120	215
3	GDC30*S	30	24	33	26	4BT3.9-G1/G2	JDG184G	PI 144G	4	3.9	102*120	215
4	GDC40*S	40	32	44	35	4BT3.9-G1/G2	JDG184H	PI 144J	4	3.9	102*120	215
5	GDC43*S	43	34	47	37	4BTA3.9-G2	JDG224C	UCI224C	4	3.9	102*120	215
6	GDC50*S	50	40	55	44	4BTA3.9-G2	JDG224D	UCI224D	4	3.9	102*120	215
7	GDC57*S	57	45	63	50	4BTA3.9-G2	JDG224ES	UCI224E	4	3.9	102*120	215
8	GDC60*S	60	48	66	53	4BTA3.9-G2	JDG224E	UCI224E	4	3.9	102*120	215
9	GDC63*S	63	50	69	55	6BT5.9-G2	JDG224E	UCI224E	6	5.9	102*120	215
10	GDC73*S	73	58	80	64	6BT5.9-G2	JDG224F	UCI224F	6	5.9	102*120	215
11	GDC88*S	88	70	96	77	6BT5.9-G2	JDG224G	UCI224G	6	5.9	102*120	215
12	GDC93*S	93	75	103	82	6BT5.9-G2	JDG224H	UCI274C	6	5.9	102*120	215
13	GDC100*S	100	80	110	88	6BT5.9-G1/G2	JDG274C	UCI274C	6	5.9	102*120	215
14	GDC120*S	120	96	132	106	6BTA5.9-G2	JDG274DS	UCI274D	6	5.9	102*120	215
15	GDC135*S	135	108	149	119	6BTAA5.9-G2	JDG274ES	UCI274E	6	5.9	102*120	215
16	GDC138*S	138	110	151	121	6CTA8.3-G2	JDG274ES	UCI274E	6	8.3	114*135	210
17	GDC150*S	150	120	165	132	6CTA8.3-G2	JDG274E	UCI274E	6	8.3	114*135	210
18	GDC160*S	160	128	176	141	6CTA8.3-G2	JDG274F	UCI274F	6	8.3	114*135	210
19	GDC180*S	180	144	198	158	6CTA8.3-G2	JDG274G	UCI274G	6	8.3	114*135	210
20	GDC200*S	200	160	220	176	6CTAA8.3-G2	JDG274H	UCI274H	6	8.3	114*135	210
21	GDC225*S	225	180	248	198	6LTAA8.9-G2	JDG274J	UCD274J	6	8.9	114*135	197
22	GDC250*S	250	200	275	220	6LTAA8.9-G2	JDG274K	UCD274K	6	8.9	114*135	197
23	GDC250*S	250	200	275	220	NTA855-GA	JDG274K	UCD274K	6	10.8	125*147	200
24	GDC250*S	250	200	275	220	MTA11-G2A	JDG274K	UCD274K	6	10.8	125*147	200
25	GDC275*S	275	220	303	242	NTA855-G1A	JDG314DS	HCI444D	6	10.8	125*147	188
26	GDC300*S	300	240	330	264	NTA855-G1B	JDG314D	HCI444D	6	10.8	125*147	188
27	GDC313*S	313	250	344	275	NTA855-G1B	JDG314ESS	HCI444ES	6	10.8	125*147	188
28	GDC325*S	325	260	358	286	NTA855-G1B	JDG314ES	HCI444ES	6	14.0	140*152	200.2
29	GDC350*S	350	280	385	308	NTA855-G2A	JDG314E	HCI444E	6	14.0	140*152	200.2
30	GDC350*S	350	280	385	308	NTA855-G4	JDG314E	HCI444E	6	14.0	140*152	200.2
31	GDC375*S	375	300	413	330	NTAA855-G7	JDG314FS	HCI444FS	6	14.0	140*152	205.4
32	GDC375*S	375	300	413	330	KTA19-G2	JDG314FS	HCI444FS	6	14.0	140*152	205.4
33	GDC400*S	400	320	440	352	NTAA855-G7A	JDG314F	HCI444F	6	14.0	159*159	205.4
34	GDC420*S	420	336	462	370	NTAA855-G7A	JDG354C	HCI544C	6	18.9	159*159	200.7
35	GDC450*S	450	360	495	396	KTA19-G3	JDG354C	HCI544C	6	18.9	159*159	200.7
36	GDC500*S	500	400	550	440	KTA19-G3A	JDG354D	HCI544D	6	18.9	159*159	200.5
37	GDC500*S	500	400	550	440	KTA19-G4	JDG354D	HCI544D	6	18.9	159*159	200.5
38	GDC550*S	550	440	605	484	KTAA19-G5	JDG354ES	HCI544D	6	18.9	159*159	200.5
39	GDC600*S	600	480	660	528	KTAA19-G6	JDG354E	HCI544E	6	18.9	159*159	208
40	GDC600*S	600	480	660	528	KTAA19-G8	JDG354E	HCI544E	6	18.9	159*159	208
41	GDC625*S	625	500	688	550	KTAA19-G6A	JDG354FS	HCI544F-S	6	18.9	159*159	202
42	GDC625*S	625	500	688	550	KT38-G	JDG354FS	HCI544F-S	6	18.9	159*159	202
43	GDC700*S	700	560	770	616	KTA38-GA	JDG354G	HCI544F-S	12	37.8	159*159	213
44	GDC750*S	750	600	825	660	KTA38-G2	JDG404B	LVI634B	12	37.8	159*159	209
45	GDC800*S	800	640	880	704	KTA38-G2B	JDG404C	LVI634C	12	37.8	159*159	196
46	GDC900*S	900	720	990	792	KTA38-G2A	JDG404D	LVI634D	12	37.8	159*159	196
47	GDC1000*S	1000	800	1100	880	KTA38-G4	JDG404E	HCI 634G	12	37.8	159*159	198
48	GDC1125*S	1125	900	1238	990	KTA38-G9	JDG404F	HCI 634G	12	37.8	159*159	198
49	GDC1250*S	1250	1000	1375	1100	KTA50-G3	JDG404G	HCI 634J	12	37.8	159*159	213
50	GDC1375*S	1375	1100	1513	1210	KTA50-G8	HCI 634J	HCI 634K	12	37.8	159*159	213
51	GDC1500*S	1500	1200	1650	1320	KTA50-GS8	LVI 634G	LVI 634G	12	37.8	159*159	213

Contact: Ms Vicki Yuan
Tel: 86 514 80915716

Prod Model:	GDC200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Controller:	Dse 7320, Smartgen Hgm6110, Hgm6120 Is Optional
Engine:	Cummins Brand, Deutz Is Optional
Alternator:	Stamford, Marathon, Engga, Godlike
Function:	ATS, Amf, Synchronised
Frequency:	50Hz, 60Hz Is Optional
Design:	Open, Silent, Mobile Both Avaliable
Type:	Basic Diesel Generator
Installation Method:	Fixed
Stroke:	Four Stroke
Cooling Method:	Water Cooling
Output Type:	AC Three Phase

Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.

Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.

GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.

GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.

Warmly welcome to GODLIKE.
