50Hz 113kVA Soundproof Diesel Generator with Cummins Engine
Price: |
US $ 10500-11700/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Money Gram,Western Union |
Generating Sets Standard Features :
Three phase four wire, output voltage 400V/230V, 50Hz, between 0.8 lagging, protection capability
According with the standard of NAME1 and IP23.
General Features:
Composed of Cummins diesel engine and Stamford or Leroy somer alternator
Oil and fuel filter fitted, water separator
Lube-oil drain valve fitted
Electric Starter Charge motor 24 VD. C
Water-cooled
8-hours operation base tank
Auto start
Optional soundproof and weatherproof canopy
3 pole MCCB Delixi breaker
Operation & Maintenance manual
Special Integrated Steel Base tank and sprayed overall in gloss enamel paint
Voltage Regulation:
Voltage regulation maintanined within ± 0.5%
Between 0.8 and 1.0 lagging and unity
From no load to full load
At speed droop variation upto 4.5%
Frequency Adjustable Ratio:
Change load from 0-100%, within 1.0%( electric speed regulator), within 4.5%( mechanical speed regulator)
Frequency Undulation:
Load from 0-100%, frequency undulation within 0.25%
No load wire volts max undulation ration\ within 1.8%
Three Phase balanced load in the order of 5%
Effect factor of Telecom
TIF better than 50
THF to IEC60034 Part 40 better than 2%
113KVA CUMMINS DIESEL GENSET MAIN TECHNICALDATA (MODEL UPC113)
POWER RATING PRIME STANDBY |
POWER | kVA | 113 | 125 |
kW | 90 | 100 |
Rated Speed | r. p. m | 1500 |
Standard Voltage | V | 400 |
Available Voltages | V | 400/230 - 230/132 - 230 V |
Rated at power factor | Cos Phi |
|
ENGINE PRP STANDBY |
Rated Output | kW | 106 | 116 |
Manufacturer |
| Cummins |
Model |
| 6BTA5.9-G2 |
No. of Cylindirs and Build |
| 4 Cycle; In-line; 6 Cylinder Diesel |
Aspiration and Cooling |
| Turbocharged, After-cooled |
Bore/Stroke | mm | 102X120 |
Compress the ratio |
| 17.0: 1 |
Cooling system |
| Water-cooled |
Engine Speed/Frequency | rpm/Hz | 1500/50HZ |
Coolant Capacity | L | 29.7 |
Starting System |
| Electric 24 volt DC |
Displacement | L | 5.9 |
Lubricant system Capacity | L | 16.3 |
Battery Volatge / Capacity |
| 24VDC |
Governing Type | Type | Electrical |
Air Filter | Type | Dry |
Fuel Consumption | Load | 100% | 75% | 50% |
|
L/h | 27.0 | 20.0 | 14.0 |
|
ALTERNATOR BRAND STAMFORD |
Model |
|
| UCI274D |
Exciter System |
| Self-excited, brushless |
Poles | Num | 4 |
Cooling Fan |
| Cast alloy aluminum |
Bearing |
| Single, double shielded |
Windings |
| 100% copper |
Connection Type |
| Reconnectable |
Insulation Type | Class | Class H |
Pitch |
| 2/3 |
Amortisseur Winding |
| Full |
Voltage Regulator |
| A. V. R. (Electronic) |
Steady Voltage Precision |
| ± 1% |
Underspeed Protection |
| Standard |
Overexcitation Protection |
| IP23 |
TIF (1960 Weightings) |
| < 50 |
Prod Model: |
UPC113 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Cummins Engine: |
6BTA5.9-G2 |
Stamford Alternator: |
Uci274D |
Delivery Time: |
15days After 30% Deposit |
Payment Term: |
30% Deposit by T/T, Balance Paid Before Shipping |
Control Panel: |
Deepsea, Comap, Smartgen Can Be Choosed |
Spare Parts: |
Can Be Sent with Genset by Free |
Fuel Tank: |
8hrs, More Capacity Can Be Designed |
Warranty: |
1 Year or 1000 Hours |
Noise Level: |
65dB@7m Distance |
Voltage: |
3phase 380V, Other Voltage Is Available |
Type: |
Self-Starting Diesel Generator |
Installation Method: |
Fixed |
Stroke: |
Four Stroke |
Cooling Method: |
Water Cooling |
Output Type: |
AC Three Phase |
Speed: |
1500prm 50Hz |
Excitation Mode: |
Self-Excited |
Unite Power Industry Co.; Ltd is one professional manufacturer& exporter of diesel generator sets, gas genset, gasoline genset, genset, welding genset, etc. Power equipment, and power from 5kVA to 3000kVA, There are both domestic and abroad brand of engines we use like \Doosan Daewoo\Deutz, Shangchai\Yuchai\Jichai, Weichai, etc.
Unite Power, owns whole set of modern production equipments and is capable of testing 8 individual generators simultaneously and 2000KW gensets. Besides, its integrated production capacity also extends to production design, hardware stamping, R&D of mechanical and electrical equipments, etc. The annual output reaches 4, 000 sets.
Unite Power always insisted on scientific and technological innovation and dedicating itself to research and develop the technology of power products. We always work hard to attract a lot of scientific research, production and management talents, For long time, large amount of capital was invested in the update of technology, equipments and modern business management, which brings Unite Power not only strong research strengths but also integrated overall strength, and helps to win a high reputation in the market. Now, Unite Power becomes the well-known manufacturer &supplier in this field in the global market, and it is the main producing base for exporting.
Unite Power raises the quality into a vital important place, it formed a mature quality control system during the whole producing process, Customers are fully guaranteed by the caring detail pre-sales service, professional during-sales service and perfect after-sales service. Unite Power promises that the quality of every single diesel generator is committed to the customers' utmost satisfaction, meanwhile, also welcome kindly good partners from all over the world, on basis of win-win co-operations.
Management Concept:
"Sincerity, pragmatic, innovation" is our key values. The values lead us to succeed in our past. We believe it will guide us to win bigger success in the future. The credendum helps us to keep fast growth even in mature business environment. The good reputation is our most valuable resources. We always insist on handling over high-quality products and perfect service. We reach to exceed the customer's expectation all the time. Our Pragmatic team will throw ourselves to seek the best solution that we can offer whole heartedly.
Production capacity&Quality:

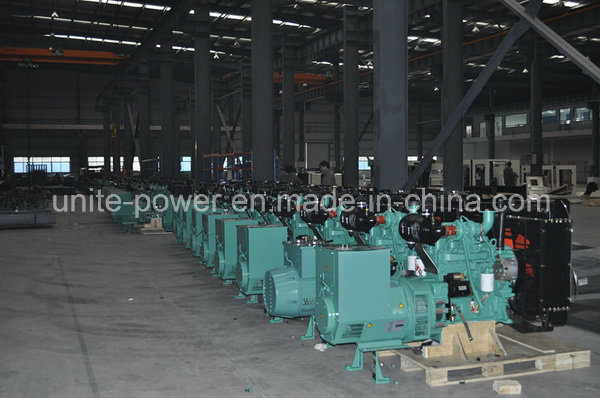

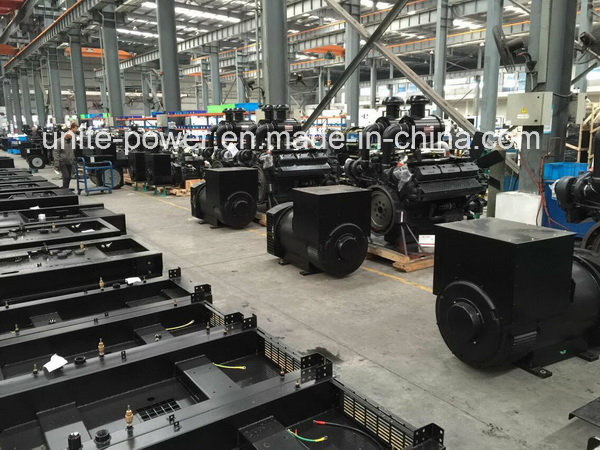

Unite Power generator set apply to outdoor, household, commercial mobile project, power ranging form 5kVA to 3000kVA. And the professional technicians devote to manufacturing good gensets with highest quality standard. Assembly line brings improvement on the productivity and efficiency as well as quality standard. At present, our monthly diesel generator productivity exceeds 1200 sets.
Before warehousing, the generators go through tests under various kind circumstances, including No-load, 50% load, 75% load, full load, and 110%load, in order to make sure every diesel generator has good performance at user's side. Every genset sold is with technical departments signed test reports. The first-class reliability and durability enable generator the ability to meet the harsh environments and high altitudes needs.
