Home Generator Products 50A 12V/24V Solar Energy Controller (WS-MPPT60)

50A 12V/24V Solar Energy Controller (WS-MPPT60)

50A 12V/24V Solar Energy Controller (WS-MPPT60)
Price: US $ 140-170/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,Paypal

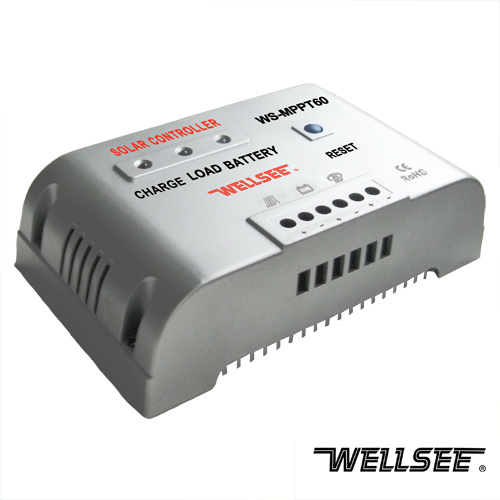

WS-MPPT60 solar battery charge controller
This WS-MPPT solar battery charge controller (also known as WELLSEE intelligent solar charge controller, solar charge controller, PV controller) can intelligently regulate the working voltage of solar panels, letting the solar panels always work at Maximum Power Point of V-A curve. Compared with standard solar controller, this MPPT controller can increase the efficiency of PV modules by 10%-30%. WELLSEE WS-MPPT solar controllers 10A--60A include 12V series, 24V series and 48V series.

MPPT advantage:
Maximum Power Point Tracking (MPPT in short) system allows PV panels to output more Power by adjusting working condition of the electrical module. In Figure1 A indicates that the working state of ordinary controller, that is PV battery working on 12V, only outputting a power point of 53W (the general power point), B indicates that MPPT controller makes PV battery always work at the maximum power point, thus outputting the power point of 75W (the maximum power point).

Product features:
Applicable to various types of batteries,
MPPT function
Temperature sensor battery charging compensation
Overload protection (automatic restoration)
Overcharge protection
Short circuit protection (automatic restoration),
Lightning protection
Reverse discharge protection
Reverse polarity connection protection (automatic restoration)
Under voltage protection

MPPT principle:
The maximum power point is mainly affected by the ambient temperature and the intensity of sunshine. With the intensity of sunshine being constant, the maximum output power decreases with the rise of the temperature. The temperature being constant, when the sunshine intensifies, the open circuit voltage of PV battery basically keeps unchanged. But the short circuit current increases substantially, thus the maximum output power increases substantially.

This WS-MPPT solar battery charge controller can intelligently regulate the working voltage of solar panels, letting the solar panels always work at Maximum Power Point of V-A curve. Compared with ordinary solar controller, this MPPT controller can increase the efficiency of PV modules by about 30%.

However, due to many different factors, such as the difference in solar panel making, the change of the sun illuminance, change of temperature, the efficiency of the controller etc., the actually available increased rate is 10%-30%.
Brand: WELLSEE Dimension: 210*125*50mm
Name: Mppt solar controller Weight: 1100g
Model: WS-MPPT60 Package: 16pcs/carton
WS-MPPT60 40A WS-MPPT60 50A WS-MPPT60 60A
Rated Voltage 12V/24V/48V
Max Load current 40A 50A 60A
Input voltage range 12V~20V / 24V~40V / 48V~80V
Length≤ 1m   Charge loop drop 0.25V
Length≤ 1m Discharge loop drop 0.05V
Over voltage protection 17V / 34V / 58V
Full charge cut 13.7V / 27.4V / 54.8V
Low voltage cut 10.5~11V  / 21V~22V / 42V
Temperature compensation -3mv/° C / cell
No load loss ≤ 30mA
Max wire area 6mm2 6 mm2 6 mm2
Ambient temperature -25° C---+55° C
Prod Model: WS-MPPT60
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application: Solar System Controller
Weight: 1100g
Rated Voltage: 12V/24V
Maximum Current: 50A
Packing: 410*355*320mm/16PCS
Size: 210*125*50mm
Hubei Bluelight Science&Technology Development Co., Ltd is the earliest large-sized joint-stock high-tech enterprise in China that develops and manufactures home medical apparatus, electronic medical apparatus, solar series and security and safety products unified with scientific research, industry and trade as well as manufacturing, supply and sale. The company is now well-developed, owning modern official buildings and high-standard manufacturing factories with branches spreading all over the country and agents in both cities and towns. The company is the star enterprise in Wuhan supported by the Hubei provincial government.

The Bluelight Company specializes in developing and manufacturing a series of products of "Bluelight Eight-Diagram Therapeutic Apparatus" which have been mass-produced and owns many other high-tech achievements besides. By combing 13 therapeutic methods together with a two-ways diagnosis through hands and ears points, Bluelight Eight-Diagram Therapeutic Apparatus could cure disease without any injection, medicine or drug bag, and the medical effect can reach the root cause of illness in one minute.

Thanks to its wide treatment scope, good curative effect and reasonable price, Bluelight Eight-Diagram Therapeutic Apparatus are well sold in all the parts of our country and many countries and regions in Asia, Africa and America, such as Iran, South Korea, Malaysia, Taiwan, Canada, Germany, France, South Africa, Singapore, Thailand, Hongkong, Indonesia, enjoying high popularity among chinese and overseas Chinese throughout the world.

Meanwhile, the company succeeds greatly in electron, biology, chemistry, estate etc., and it has also harvested quite a lot through its vigorous developments of foreign trade after achieving the export permission in recent years. In 2007, The Bluelight Company has passed the ISO9001: 2000 and ISO13485: 2003 certification, which indicates that The Bluelight Company has formed international advanced management platform, and its products are worth trusting to compete with international counterparts in quality and national ones in price.

Bluelight is Hubei famous trademark
and has passed the ISO9001: 2000: 13485 and CE certifications! There are two sets of compact disk about video teaching. We are a large scale R&D manufactory of Hospital multifunction therapeutic apparatus and global supplier of home health care equipment.

With an aim to further develop high and new technology career, The Bluelight Company make investments to establish Wuhan Wellsee Electronics CO., Ltd dedicated to the research and development of solar charging controller, solar charging controller for lamps, solar charging inverter, automotive inverter, security and safety products and so on. Wellsee solar inverter and controller have successfully got the CE and RoHS certification, which means the products are safe, environment-friendly and reliable. Facing the ever changing science & technology world, The Bluelight Company has been making great efforts to meet the people's increasing demand by paying great attention to them.

Facing the great challenges and opportunities in the future, Bluelight always stands in the forefront of science and technology and takes the responsibility to prosper China and the people with well-developed medical industry, and Health Communication, Wealth Creation is the company's tenet. Luo Bang, the general manager of Bluelight Company, with all the staff, is looking forward to making continuous efforts as well as the well-developed management in the company to provide the first-class products and services as always, and cooperating with all domestic and international enterprises and companies manufacturing medical apparatus to develop side by side and contribute more to Chinese medical industry and all people's health!
