Home Generator Products 500W12V Horizontal Wind Turbine Generator with Solar Panel Hybrid off-Grid System

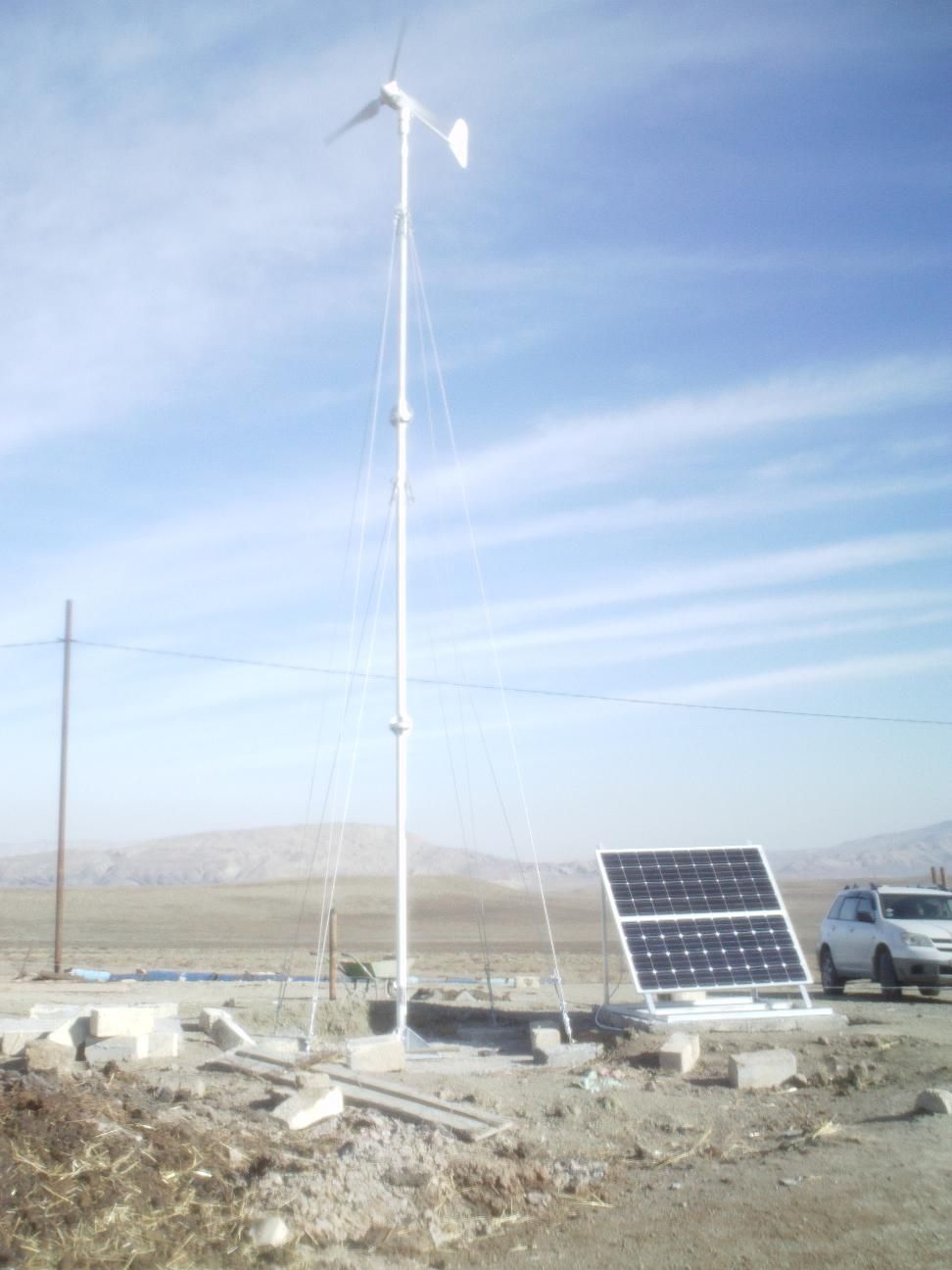

500W12V Horizontal Wind Turbine Generator with Solar Panel Hybrid off-Grid System

500W12V Horizontal Wind Turbine Generator with Solar Panel Hybrid off-Grid System
Price: US $ 1/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
The benefit of the wind turbine

Horizontal axis wind turbine

Lowest cut-in wind speed
1 m/s for power production
No noise, no vibrations
(sound level< 25 dB at 7 m/s from 10 m distance)
Adaptable for hybrid solutions
With solar and other sources of energy
Permanent power supply
From wind/solar and continuous battery charging
Technically advanced Maglev generator
No mechanical friction
Best price-performance ratio All weather resistant
(rain, ice, heat, salt, sand)
Independent of wind direction
Suitable for roof fixation
Maintenance-free
Safety for people and nature


Well used in
Housing, office, farm and factory
Telecommunications Station
TV Transfer Station
Monitoring Station (military, hydrology, observatory)
Wind solar hybrid street light system
Rated voltage 12V\24v\48v
Design-optimization in our own wind-tunnel
Permanent magnet-generator
Very good start-up performance due to low cogging torque at 2, 2m/s wind speed
External hybrid controller for wind- and solar-energy with multi-function display
And integrated electronic/manual stop switch
Universal application for low, middle and high wind
Hand laminated, UV-resistant carbon blades, successfully tested according to DIN EN 61400-2 at hurricane speed 122km / h (5480 rpm, with almost Speed of sound at the blade tips).
Our blades are handmade incorporating high tensile carbon fibre mats. This is a more labour
Intensive process resulting in an optimized blade profile at the lowest weight, which combines
A very quiet operation, blade longetivity and an exceptional safety record.
Aerodynamic design from aircraft-engeneering
Low noise
Durable and low maintenance by external controller and high-quality components


ModelWKH-500
Rated Power500W
Max Power600w
Start-up Wind Speed2m/s
Rated Wind Speed12m/s
Survival Wind Speed45m/s
Output VoltageDC12/24/48V
Working Wind Speed2.0-25m/s
Rotor Diameter1.54m
Material of BladesCarbon fiber composite
Quantity of Blades3/5pcs
Generator typeAC, 3 phases
Controller Braking System3-Phase short circuit by NFB brake
Range of Working Temperature-40ºC-60ºC
Prod Model: WKH-500
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Generator Type: AC, 3 Phases
Controller Braking System: 3-Phase Short Circuit by NFB Brake
Max Power: 600W
Stop Method: Manual & Electromagnetic Brake
Blades Material: Carbon Fibre Composite
Output Voltage: 24/48V
Start-up Wind Speed: 2m/S
Working Wind Speed: 2-25m/S
Survival Wind Speed: 45m/S
Rated Power: 500W
Number Of Blade: Three Blade
Rotating Shaft: Horizontal
Stress Way Of Blade: Resistance
Power: 500W
Hefei Wind Wing Energy Technology Co., Ltd. is the earliest one of the R & D wind energy generation equipment in China. Our company develops under the support of Chinese Wind Power Association, depends on Chinese Academy of Sciences Institute of Automation the long-term technical guidance and the close cooperation. We take the "the national initiative energy crisis subject" as our development goal. Now we have a strong R&D group, and researched and developed a profession leading WIND AND SOLAR SUPPLEMENT new energy generating system.

People are paying attention to our products, for the features: Green energy, environmental protection, regenerative and natural energy, etc. Our systems have widely applied in so many fields: City view, communication station, military army, science & education, weather department, fishing vessel, irrigation, oil well, seawater desalination, open country inspection, and so on.

As the first domestic enterprise developing the WIND AND SOLAR SUPPLEMENT new energy, we have passed ISO9001: 2000 quality and management system certification and EU CE certification. Our WIND AND SOLAR SUPPLEMENT new energy range systems are faithful and popular in the domestic and foreign clients, becoming the profession leading enterprise.

We always persist in the enterprise culture of "being a creditable person, live a worth while life", we insist on providing vast customers with the first-class goods, the top-notch technology heart and soul. We heartedly wish to intensively co-operate with old and new customers for greeting together with the challenge WIND AND SOLAR SUPPLEMENT new energy spring arrival!
