WIND GENERATOR, WIND TURBINE, WIND TURBINE GENERATOR, WIND POWER SYSTEM
NPS-500W wind turbine:
Technical characteristic
(1) Special yawing design: exactly regulate wind rotor rotating speed, automatic yawing when wind speed is over rated wind speed. No slow-moving
(2) Anti-fatigue tail vane: tail vane adopts new material, spring design, improve anti-fatigue largely, extend service life.
(3) Pure mechanical structure, failure rate lower.
Application field
GSM base station, forest-fire prevention, monitor system, sight lighting, island, sentry post, boats, agriculture and so on.
NPS-500W yawing wind turbine output power curve
Strict Testing

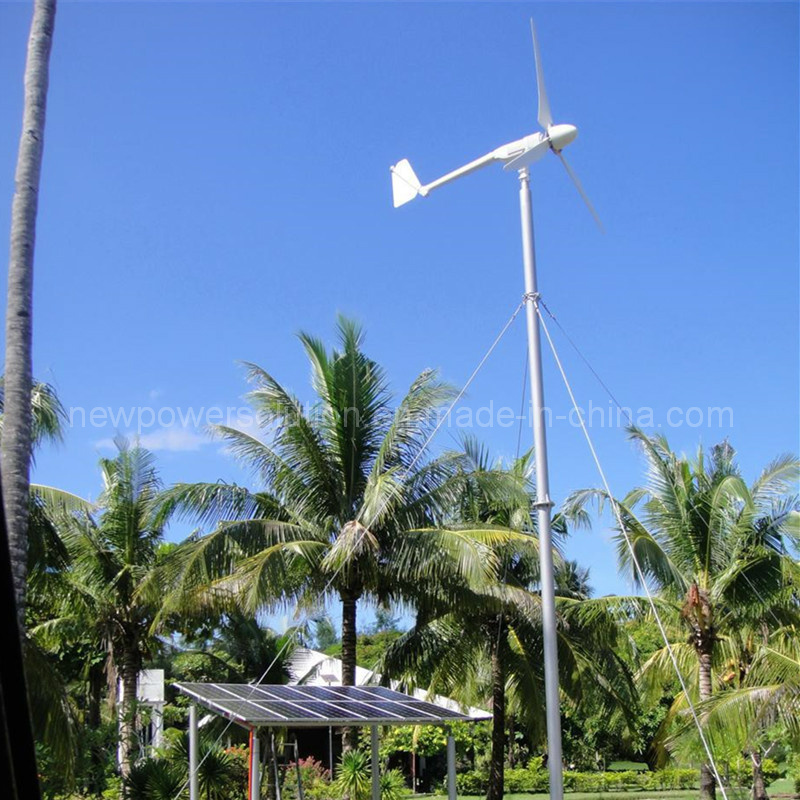

Project Case Pictures
NPS-500W yawing wind turbine technical parameters
Model |
NPS-500W |
Wind rotor diameter(m) |
2.5 |
Blade material & quality |
Reinforced fiber glass*3 |
Rated power(W)/maximum power(W) |
500/750 |
Rated wind speed(m/s) |
9 |
Rated rotating speed(rpm) |
500 |
Working wind speed(m/s) |
3-25 |
Start-up wind speed(m/s) |
3 |
Survive wind speed(m/s) |
40 |
Rated voltage(V) |
DC24/DC48 |
Regulation method |
Yawing |
Generator type |
Three phase, permanent magnet generator |
Wind turbine weight(kg) |
65 |
Tower height/weight(m/kg) |
5.5/80 |
Qingdao Eternal Electronics Co., Ltd. is a professional provider of power protection and new energy solutions. Our main and competitive product is Solar Tracking System. We can also provide other new energy products such as grid-tied PV inverter, solar pump system, solar tile and small wind turbine. Our products have been applied in over 30 countries and regions around the world, providing reliable power supply service for global users.
Our solar tracking technology is advanced in China, and we can provide customized designs and system solutions for your customers. Tracking system can increase the power generation of the solar power station a lot. If you are going to choose solar tracking system, please remember to contact us. You will not regret your choice.
Upholding the marketing concept of 'Strategic Alliance, Share the Results', and the enterprise mission of ' Committed to the development and application of energy saving and green energy', continuously improving customer satisfaction, Eternal Electronics adheres to become an excellent supplier of power management system solutions and services in China and the world, bringing the green healthy energy endowed by nature to households.
