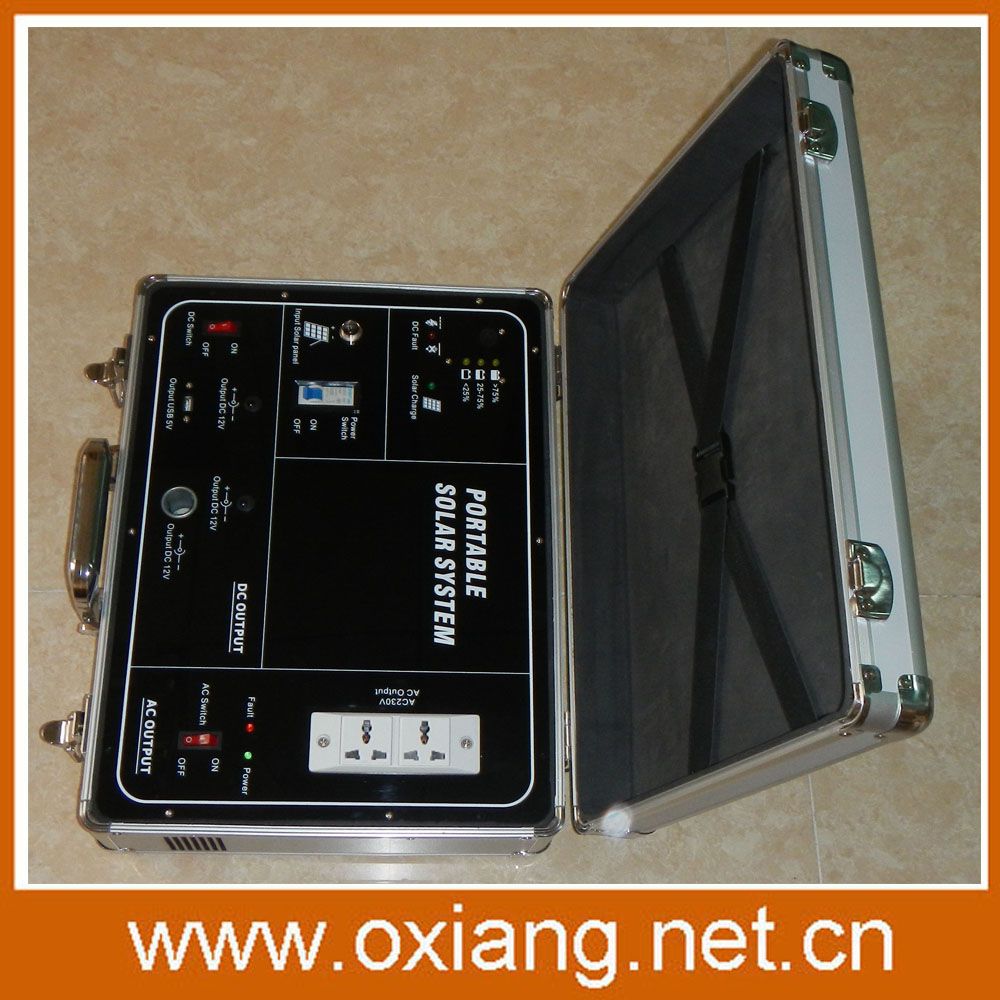

Our mini home use solar generator with reasonable design of light weight, small size, high-power, current transfer ability from DC to AC in efficient way, and two method of battery-charge. Mainly used as back-up power station for home lighting, travel, exploration, post and office. Battery charge method: Solar panels and AC power.
Technical Specificationsworking scope:
Input: Solar panel/AC adaptor
Output: AC/DC/USB port/Car charger
Our mobile power statation mainly use for Resistive load as household linghting, TV, fan, radio and computer.
Not suitable for Capacitive load
As electric motor, refrigerator, air conditioning, Microwave and ovens.
In urgent case, our mobile power station can connect with automobile battery to start automobile.
Battery Charge Notices:
1. AC adapter charge ( different type of AC charge available )
While AC power available, please charge mobile power station with AC adapter.
Non-matching adapter is forbidden, Otherwise, the battery will be damaged.
2. Solar Panel charge
Place solar panel outdoors and remove all covering on surface of solar panels, make sure solar panels face sun in south direction to absorb sunlight fully, . Then plug the power line of the solar panels into "SOLAR CHARGE" socket.
The adopted solar panels with peak power range: 10W-80W. ( Monocrystalline or Polysilicon solar panels), and fully charge time vary with different solar panels.
Specification
| Item No | Specifications | Product Size
(L*W*H)mm | Carton Size ( L x W x H )mm | GW(KG) | Q'ty Per Carton |
|
| SP500A | Solar panels | Pmax | 38Wp | 675 x 490x 30 | 710×530×70 | 4.80 | 6.00 |
| Vmp | 17.5V |
| Imp | 2.28A |
| System voltage | 12VDC | 365×350×175 | 450×420×240 | 10.00 | 11.00 |
| Modify Sine Wave Inverter | Out Capacity | 500W |
| Output wave | modify sine wave |
| Output voltage | AC220V / AC110V |
| Output frequency | 50HZ/60HZ |
| Output current | 2.27A(220V) /
4.54A(110V) |
| Battery | Capacity | 12V/20AH |
| Solar controller | Solar controller | 12V/10AH |
| AC Charger (Constant current output)12V/5A |
