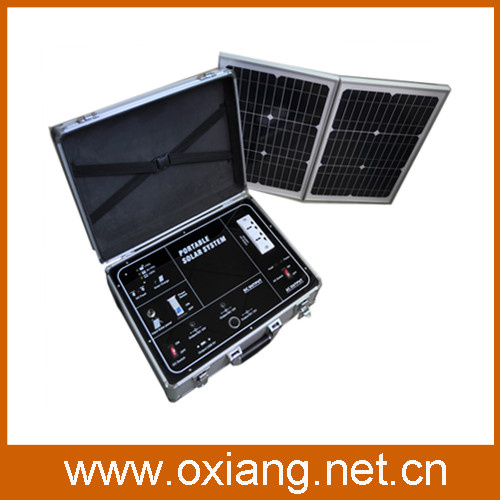

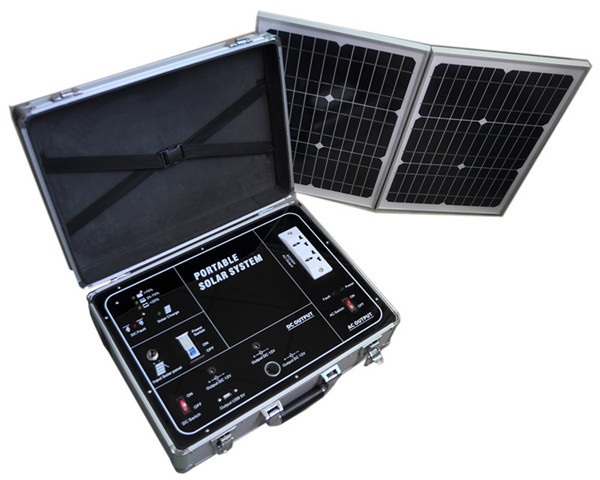

Portable solar generator 500watts 38watts solar panelOur mobile power station with reasonable design of light weight, small size, high-power, current transfer ability from DC to AC in efficient way, and two method of battery-charge. Mainly used as back-up power station for home lighting, travel, exploration, post and office. Battery charge method: Solar panels and AC power
Functions:

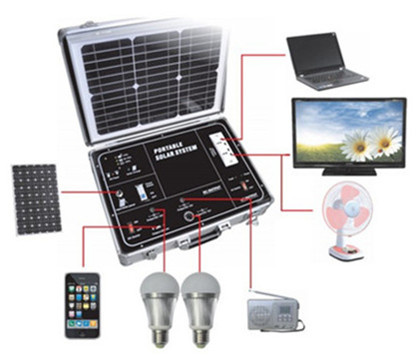

1.The solar power system designed to provide DC power and AC power,supply for lighting mobile phone charging,run the DC fan and radio,and TV,computer etc.
2.Bulitin PWM charge controller,real time display of battery capacity and load status.
3.Built-in maintenance-free lead0acid battery.
4.With several output socket,can output voltage DC12V and USB5V at the same time.
5.Built-in DC to AC power inverter,can output AC220V/50HZ.
6.Voice warning and together LED indicator shows the battery get low.
Feature:
Solar charge:
The solar panel to access the charging socket.The positive and negative cannot be reversed(the solar panel powerThe charging process performed by the charger controller,without user intervention.
Use load:
DC load:first open the power switch,and open the DC switch,the DC load can be used.
AC load:first open the power switch,and open the AC switch.the AC load can be used.
Attention:
DC load:At the same time the DC load power shall not exceed 120W,may cause the machine to enter the state of over-load protection.
AC load:At the same time the AC load power shall not exceed 500W,may cause the inverter over-load protection.
Power station mainly use for Resistive load as household lighting,TV,fan,radio and computer.Not suitable for Capacitive load as electric motor,refrigerator,air conditioning,microwave and ovens.
Optimal working scope:
Our mobile power statation mainly use for Resistive load as household linghting, TV, fan, radio and computer. Not suitable for Capacitive load
as electric motor, refrigerator, air conditioning, Microwave and ovens.
In urgent case, our mobile power station can connect with automobile battery to start automobile.
Notices :
1. AC adapter charge ( different type of AC charge available )
While AC power available, please charge mobile power station with AC adapter.
Non-matching adapter is forbidden, Otherwise, the battery will be damaged.
2. Solar Panel charge
Place solar panel outdoors and remove all covering on surface of solar panels, make sure solar panels face sun in south direction to absorb sunlight fully,. then plug the power line of the solar panels into "SOLAR CHARGE" socket.
The adopted solar panels with peak power range : 10W-80W.( Monocrystalline or Polysilicon solar panels), and fully charge time vary with different solar panels.
3. To achieve the more working time, you can external connect with battery.
Connect red line with positive pole of battery, and back line with negative pole of battery.
Warning:
High voltage inside,not dispart
Avoid collision and impact while moving
Keep good ventilation while operation
Moistureproof and waterproof
Keep away form children

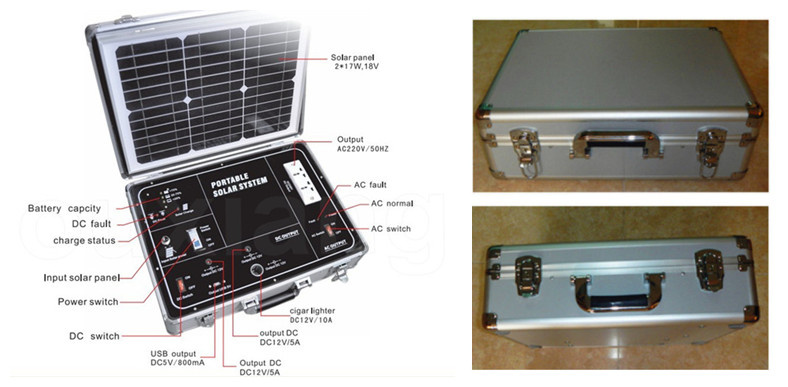

| suitcase portable 500W army using solar system |
| System voltage | DC12V |
| Battery capacity | 20AH/12V |
| Max.charge current | 10A |
| Build-in solar panel power | 38W,open circuit voltage:17.5V |
| Output voltage | DC output:DC socket:12V/5A |
| USB outout:DC5V/800mA |
| Cigar lighter:DC12V/10A |
| Output AC:AC220V/50HZ |
| Load power | DC power: |
| Low voltage dis-connect | DC load LVD:11.0V,AC load LVD:10.0V |
| DC load re-connect voltage | 12.5V |
| High voltage dis-connect | 15.5V |
| Weight | 15kg |
| Dimension | 46*34*16cm |
