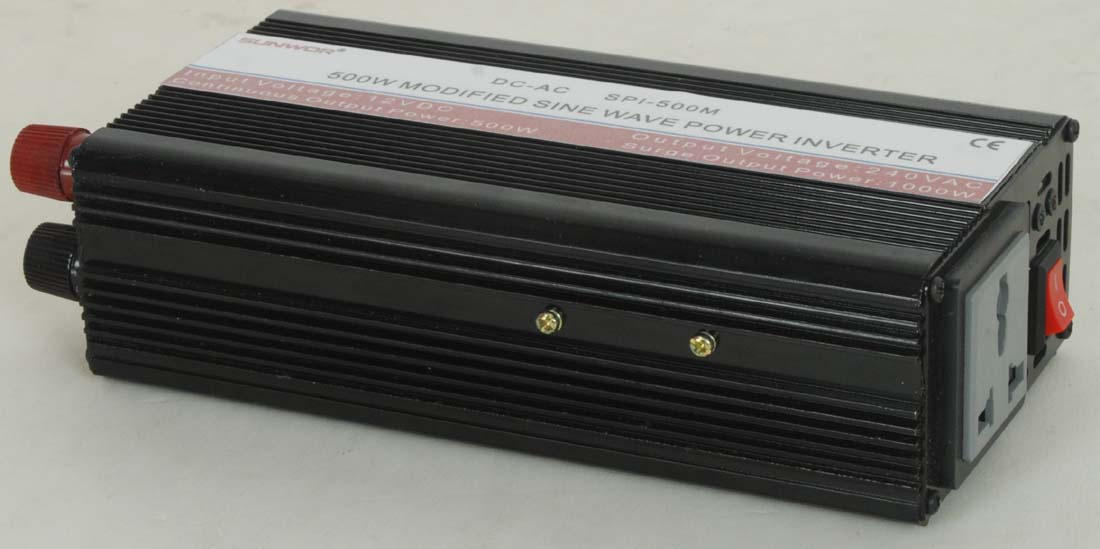

500W Modified Sine Wave Power Inverter SPI-500M
SUNWOR power inverter offers you much benefits by making possible the use of any domestic appliances, from microwave oven to hairdryer, DVD player to power tools. A SUNWOR inverter allows you to easily convert the voltage of your 12VDC or 24VDC or 48VDC battery to 220-240VAC/50Hz or 110-130VAC/60Hz.
SUNWOR offers a complete range of inverters from 100 Watt to 6000W, both pure sine wave and modified sine wave.
Proven technology
SUNWOR inverters have proven themselves in the most extreme conditions for over 3 years. Although the dimensions and connections of the various models have remained the similar, the technology has evolved with the times, resulting in a fast, efficient, one-on-one replacement with minimal downtime.
All inverters are small, light weight and silent. Installation and operation are very easy.
Features
12V or 24V or 48V DC input
Output waveform: Modified sine wave
Power On/Off switch
High efficiency>90%
High-velocity cooling fan
Anodized aluminum case provides durability & max heat dissipation
24PCS/carton, Carton Size: 49.5× 39× 28cm, G. W: 26.50kg
1 year warranty
All protection functions:
SUNWOR Power Inverter is with ALL necessary protection functions.
1. Soft start
2. AC output short-circuit and leakage protection
3. High-low voltage isolation
4. Input DC low voltage alarm, then shutdown
5. Input DC high voltage alarm shutdown
6. Overload shutdown
7. Over heat shutdown
8. Input polarity reverse shutdown
Specification Item No.
SPI-500M12
SPI-500M24
Output AC Voltage 100/110/120VAC, 220/230/40VAC
Continuous Power 500W
Surge Power 1000W
Waveform Modified Sine Wave
Input DC Voltage
12VDC
24VDC
Voltage Range
10.5~15VDC
21~30VDC
No Load Current Draw < 0.6A
Fuse
35× 2PCS
15A× 2PCS
Protection Battery Low Alarm
10.5+0.5V
21+1V
Battery Less Shutdown
10+0.5V
20+1V
Overload
>600W, shut down, re-operate automatically when load in normal
Over Voltage
15~16VDC
30~32VDC
Over Temperature
>65oC, Shut off, re-operate automatically when temperature goes down.
Short Circuit
Shut off, re-operate automatically after fault condition is removed.
Input Polarity Reverse
Fuse burnt, replace with a new fuse.
Sunwor develops, design and manufactures safe and reliable power solutions worldwide.
SUNWOR has long experience in producing and exporting in this field. Now we produce more than 300 kinds of power supply and cable accessory. We produce Modified Sine Wave Power Inverter, Pure Sine
Wave Power Inverter, Modified Sine Wave Power Inverter with Charger, Pure Sine Wave Power Inverter with Charger, Metal Case Switching Power Supply, LED Water-proof Driver, DIN-rail Power Supply, Plastic Power Adaptor, Cable Terminal, Cable Lugs...
Quality is totally guaranteed here. We have hi-tech quality control equipments and modern production lines. Most important, there are more than 30 senior engineers and senior technicians working in our company. Under rigorous pre-production inspections, producing inspections and final-product inspections, every product is fully assured with top-reliable quality, novel design as well as excellent performance.
ODM&OEM order is perfectly fulfilled by us.
Over 70% of new business come from repeat-customers and word-of-mouth advertisement. This reflects our commitment to your needs and the quality of our service.
Our mission:
To produce worldwide safe&reliable power solutions with continuous innovative technologies.
Our values:
Every staff is equal in dignity and personality.
Enterprising spirit and initiative is encouraged.
Mutual respect and understanding is advocated.
SUNWOR welcome all the clients to establish very close and long term cooperation.
Interntional Agent is wanted.
