Product Description:
1. Windmill is compact, safe and stable with low vibration
2. High utilization with CE,
3. Easy installation and maintance
As Manufacturer of small wind turbine for over 5 years, we offer you:
Stable products
Practical solutions
Competitive price
Best after sales service
Welcome to contact us, we are ready to offer what available.

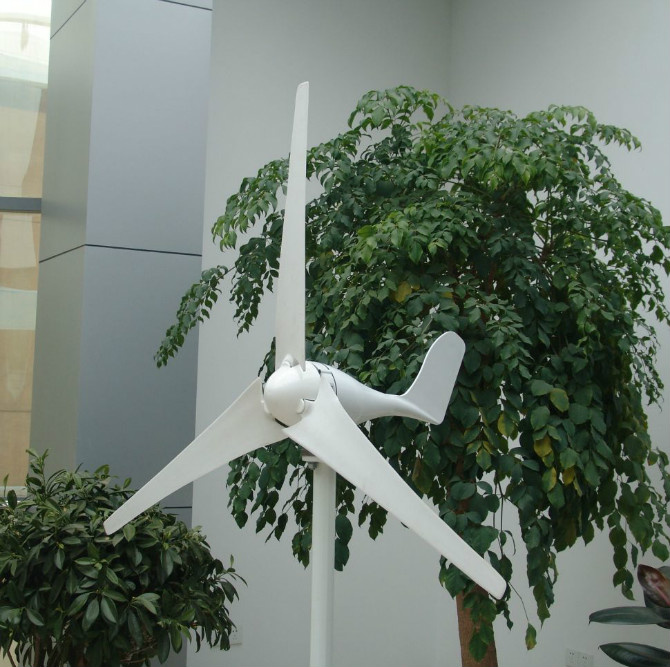

Wind Generator Specifications
1, windmill generator
2, net weight 15kg, high wind energy utilization
4, low vibration operation
5, low resistance
Wind Generator Features:
1. Low start up speed, 3 or 5 blades optional for different wind speed areas, high wind energy utilization
2. Easy installation, tube or flange connection optional
3. Blades using new art of precision injection molding, matched with optimized aerodynamic shape and structure, which enhance the wind energy utilization and annual output.
4. Body of casting aluminum alloy, with 2 bearings swivel, making it survive stronger wind and run more safely
5. Patented permanent magnet ac generator with special stator, effectively reduce torque, well match the wind wheel and generator, and ensure the performance of whole system.
6. Controller, inverter can be matched accroding to customers' specific needs
Wind solar hybrid street light system
For whole system, it needs
Wind turbine+ solar panel+hybrid controller+ pole+led light + battery+wires
Model
|
YC-NE500
|
Rated power
|
500W
|
Maximun power
|
530W
|
Rated voltage
|
12/24/48V
|
Start-up wind turbine
|
2.5m/s
|
Rated wind speed
|
13m/s
|
Survival wind turbine
|
45m/s
|
Top net weight
|
15kg
|
Wheel diameter
|
1.8m
|
Number of blades
|
3
|
Blades material
|
Nylon fiber
|
generator
|
Three phase permanent magnet ac synchronous generator
|
magnet
|
NdFeB
|
Generator case
|
Casting aluminum alloy
|
Control system
|
Electromagnet/wind wheel yaw
|
Speed regulation
|
Automatically adjust windward direction
|
Working temperature
|
-40 ° C - 80 ° C
|
Design life
|
20 y
|
Gross weight
|
17kg
|
Package Dimension
|
930*370*260mm
|
