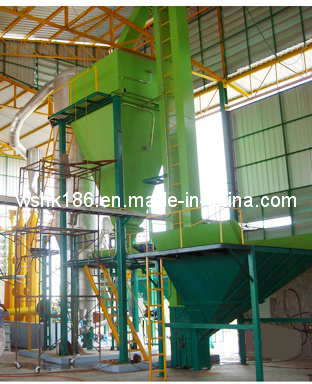

AVESPEED 500kw power with wood chips rice husk etc biomass energy plant
Beijing AVESPEED COMMERCIAL &TRADING Co., Limited is also a global leader in the production of biomass gasification equipment, gas generator set, oil filtration and purification equipment etc.
With sophisticated patent technology and expertise.
AVESPEED has developed an internationally acclaimed fluid-bed biomass gasification furnace (patented) product, which efficiently gasifies biomass fuel, such as rice husk, sawdust, woodchips, crop stalk, biogas etc. The pyrolysis gas is used for power generation and other purposes. We also produce 200 different types of oil purification, air-dry generating and SF6 retrieving devices equipment.
Our highly reputable, power plant, mechanical, transportation, petrochemical and military fields products are widely used, with more than 23, 000 sets of equipment currently working efficiently all over the world
|
Type |
LHC-200 |
LHC-300 |
LHC-400 |
LHC-500 |
LHC-600 |
LHC-800 |
LHC-1000 |
LHC-2000 |
|
Rated output power(kw) |
200 |
300 |
400 |
500 |
600 |
800 |
1000 |
2000 |
|
Production volume of biomass gas(Nm 3 /hr) |
800 |
1150 |
1500 |
1900 |
2250 |
3000 |
3650 |
6000 |
|
Gas temperature of gasification furnace outlet( degree celsius ) |
700~800 |
700~800 |
700~800 |
700-800 |
700~800 |
700~800 |
700~800 |
700~800 |
|
Gas temperature of the outlet after cleaning and cooling ( degree celsius ) |
|
|
< 45 |
|
Consumption of biomass fuel(ton/hr) |
0.3~0.36 |
0.45~0.54 |
0.6~0.72 |
0.75-0.9 |
0.9~1.08 |
1.2~1.44 |
1.5~1.8 |
2.6~3.6 |
|
Volume of circulating water flow(m 3 /hr) |
6~8 |
9~12 |
12~15 |
17-19 |
18~23 |
24~30 |
30~37 |
60~75 |
|
Gross weight of gasification furnace(ton) |
21.8 |
23.4 |
26.7 |
28 |
30.8 |
34.8 |
38.7 |
90 |
|
Ash removing manner |
|
|
Dry type(Screw-conveyer collection & discharge) |
|
Device of gas cleaning & cooling system |
|
|
Cyclone Separator x 2+Spray scrubber x 2+ Venturi scrubber x2+Spray scrubber+Spray
Filter(removing dust, tar and cooling)+ Roots Balower+Alkali water washer gas-water Separator |
Beijing Avespeed Commercial & Trading Co., Limited is the leading manufacturer and supplier of diesel engines for marine propulsion, marine Gen-sets, stationery Gen-sets and power plant applications in China. AVESPEED manufactures diesel engines with unit output from 150KW to 4500KW, which can be used as propulsion of merchant vessels and special vessels from 1000 to 30000 tons DWT. AVESPEED manufactures marine auxiliary diesel generators with unit output from 150KW to 4500KW and stationery HFO generators with unit output from 500KW to 8000KW.
AVESPEED designs and builds turn-key power plant with an output up to 100MW as base load power plant, peaking power plant or industrial self-captive power plant in cement, textile, mining or oil and gas industries etc. The power fuel can be diesel oil, bio-diesel, heavy fuel oil (HFO) or bi-fuel. AVESPEED has been set up more than 200 heavy fuel oil (HFO) power plant projects in the world in recent years, especially in Nigeria, we have set up more than 60 HFO power plant projects there.
All of our marine diesel engines have achieved type approvals and work test approvals of, CCS, China Ships Inspection Bureau, and China Fishing Ships Inspection Bureau. Many products are rated as "National Grade New Products" and "Industry Brand Products" and awarded with "National Prize for Progress in Science and Technology", Now AVESPEED diesel engines are widely used for deep sea fishery, inshore fishing ships, ocean shipping, inland water navigation, passenger cargo ship transport, harbor tug, engineering ships, enforcement ships, naval auxiliaries etc.
New energy products developed in recent years including natural gas generator sets, biomass generator sets, tyre oil/vegetable generator sets and dual-fuel generator sets with unit output from 50KW to 1000KW.
AVESPEED also involves in the development and manufacture of the crystal silicon (mono and poly) solar panel/module, photovoltaic system, and other photovoltaic products. We supply solar panels ranging from 45W to 290W. AVESPEED's on-grid and off-grid inverters are the sole in China certified by TUV. The PV inverters range from 1KW to 1000KW.
Our products and manufacturing processes fully comply with product safety requirements, including TUV/IEC61215 & 61730, CSA/UL1703, MCS, CE and UKAS. Additionally, we have implemented best practices to protect the environment and conserve energy.
So far, our customers spread dozens of countries and regions in Europe, Middle East, Africa, South America, Southeast Asia and West Asia. AVESPEED is willing to cooperate with relevant famous enterprises and far-sighted, strong-willed and talented people at home and abroad by supplying our high-quality products and excellent service.
