Home Generator Products 500kw Power Natural Gas Generator Set

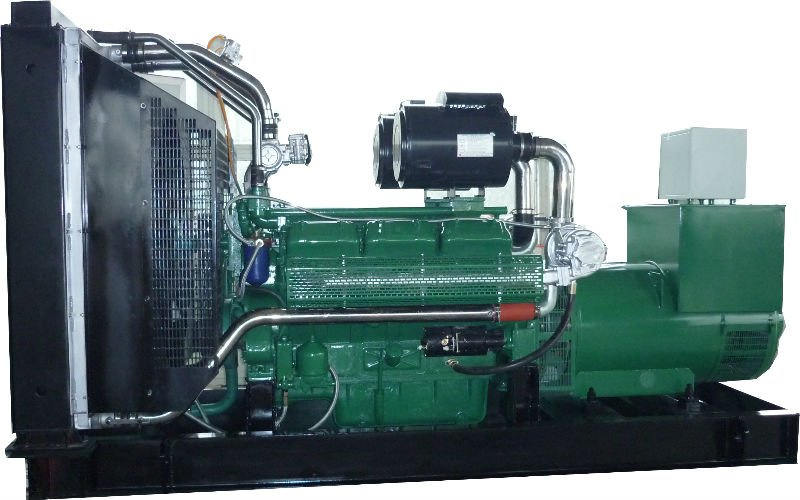

500kw Power Natural Gas Generator Set

500kw Power Natural Gas Generator Set
Price: US $ 1000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Technologies option the Vehicular gas engines on the generator set with the ECI control system for the fuel and air.
The noise as the same as the gas truck and bus, and the Emission get the standard of Euro 4.
The powers are strong for long time service.
The generator control system is by automatic, only need the operator one key to run or stop the machine, completed to control the engines and alternator.
The LED display could monitor the running status of the engine and alternator, if the machine was at fault, the control system will provide the Fault Code and Solutions on LED display.

The following is the main specificatin of lower price 500kw power natural gas generator set
CUMMINS 500kw Natural Gas Generator Set
Rated Output(KW) 500
Standby Output(KW) 550
Voltage(V) 400
Current(A) 902
Size(mm) 3620*1700*2310
Approximate weight(KG) 6880
Emission levels (Nox) Euro II emission(mg/m³)
Engine of CUMMINS 500kw Natural Gas Generator Set
Engine Model KT38
Type 12 cylinders V type
Bore * Stroke (mm) 159*159
Displacement(L) 37.8
Compression ratio 9.5:1
Rated speed(rpm) 1500/1800
Inlet type Exhaust Turbocharger/Air-Air Intercooler
Cooling type Cooling water tank
Fuel System Low and high pressure
ESC Type Special for U.S. GAC natural gas
Ignition sequence 1R-6L-5R-2L-3R-4L-6R-1L-2R-5L-4R-3L
The allowed maximum speed(Natural gas supply closed at this time) 2160 rpm
The allowed maximum rotating speed (The ignition system shut down at this time) 2160 rpm
Oil Capacity 135 L
Cooling water capacity 290 L
Maximum engine back pressure 10.2 kpa
Gas consumption(m 3/kw@h) <0.3
Alternator of CUMMINS SCG500 Natural Gas Generator Set
Alternator Model Engga EG355L-500N
Excitation Method Brushless Permanent Magnet
Winding pitch 2/3 pitch
Number of poles 4
Bearing number 1
Stator Windings 6ends
Insulation Class H class
Protection class IP 21 or IP 23
Prod Model: WTQ500GF
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Waranty Time: 1 Year Since The B/L Date
Certificate: CE
Color: as Per Request
Engine: Cummins
Insulation Class: H
Gas Source: Natural Gas
Shandong Weituo Group Co., Ltd. Were established in the early 1950' s and have more than 60 years of machinery production experience. Our product ranges from diesel engines, gas engine, generator sets, tractors from 17HP-120HP, farming implements and so on. We are also is the sole agent of large power tractor from 350--600HP of Germany DTU brand in Asia area.

We have 7 scientific research centers where our products are designed. In our production centers we use specialized casting, machining, pressing and assembly machines, 12 production lines and more than 1, 000 other units of equipment. This collection helps us to achieve a capacity of 200000 engines, 150000 generator sets and 200, 000 tractors annually.

Our tractors include TS series from 17HP to 28HP, TY series from 18HP to 30HP, greenhouse and gardon series compact tractor from 18HP to 30HP, AOYE series from 35HP to 60HP, SWT series from 70HP to 120HP and all kinds of farm implements. We have more than 60 years of tractor manufacturing history and have rich experiences in manufacturing and exporting. Our tractors are famous for its low price and steady propety and long life.

Our engines include three series which feature more than 300 varieties with power ratings varying from 20 to 660kW. You can select from diesel, gas or other fuel-powered options. We have turbo-charged models, with or without a cooler, altiplano models and models that use European technology. The latter reaches new standards in terms of dynamics, durability, low emissions and economical savings. These engines are used in agricultural equipemnt, generator set, ship, pump, air compressor and construction machinery and so on.

Our generator sets series include internal combustion engines and dynamotors that range from 5 to 1, 000KW. We offer automated units, mobile power stations, gas generator sets and more. The noise level for low-noise gensets can reach 60dB at 1M. Our generators are used in industry, standby power in hospital, malls and hotels, telecom

To fasten the company's development, SWT is building "Tractor Industrial Garden"(which occupies 100, 000 square meters in Weifang Economy and Technical Exploiting District) and "Power Industrial Garden"(which occupies 140, 000 square meters in Weifang Fangzi District). Of which Power Industrial Garden will get moving qualification at the middle of 2009. Tractor Industrial Garden mainly produces big and middle series tractors, TY series tractors and various implements. And Power Industrial Garden mainly produces diesel engine, gas engine, generator sets and power equipment parts, etc.

When the two Industrial Gardens are putting into production, SWT will develop into one of the largest enterprise, integrated with products such as tractors, engines, generator sets, various types of machinery parts and components casting process.
