Home Generator Products 500kw Natural Gas Generator

500kw Natural Gas Generator

500kw Natural Gas Generator
Price: US $ 120000-150000/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: L/C,D/P
Model number: 500GF18-T/500GF18-TK/500GF18-TK1
Output type: AC Three Phase
Speed: 1200/1500r/min
Frequency: 50Hz
Rated power: 500KW
Rated voltage: 400/230

1. Model 12V190ZDT-2
2. Advanced control panel
3. Water-cooled engine

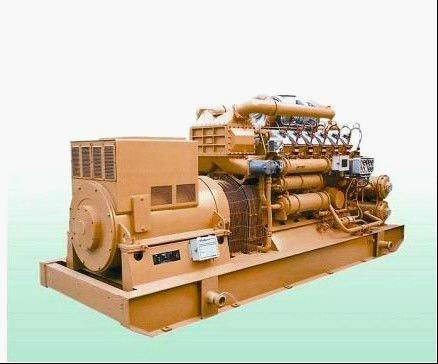

500kW natural gas generator sets
Main specification
Model of generating sets Model of gas engine Model of Generator Rated power(kW/kVA) Rated volt-agte(V) Rated frequ-ency(Hz) Startingmethod Controlmethod Overall dimensionLxBxH(mm) Packing dimensionLxBxH(mm) Net weight(kg)
500GF18-T 12V190DT-2 1FC6 456-6TA42 500/625 400/230 50 24VDC electric starting Auto /manual control 5925X2040X2778 5240X2040X2880 13800
500GF18-TK 12V190DT-2 1FC6 456-6TA42 500/625 400/230 50 4733X2040X2778 4817X2040X2950 12000
500GF18-TK1 12V190DT-2 1FC6 456-6TA42 500/625 400/230 50 4733X2040X2778 5240X2040X2880 12000
Note: Generator can be selected according to customer's need or actual production.

Main electrical performance data
Voltage Frequency
Stable regulating rate Instantaneous regulating rate Recover time Fluctuation Stable regulating rate Instantaneous regulating rate Recover time Fluctuation
± 2.5% +20% -15% 1.5s 0.5% 5% ± 10% 7s 0.5%
Voltage adjustment range: Idle load voltage adjusted 95~105% rated voltage

Control panel
Control panels for natural gas generating sets are used to control the electric energy transporting of generating set. They have the functions of under-voltage, overcurrent, auto speed governing and reverse power protections etc. Meanwhile, they can monitor the speed, water temp, oil temp, oil pressure and exhaust temp of the engine. And also they are fitted with sound and light alarm devices.
Main  specification
Model  of  generating  sets Model  of  gas  engine Model  of  Generator Rated  power
(kW/kVA)
Rated  volt-agte
(V)
Rated  frequ-ency
(Hz)
Starting
method
Control
method
Overall  dimension
LxBxH(mm)
Packing  dimension
LxBxH(mm)
Net  weight
(kg)
500GF18-T 12V190DT-2 1FC6  456-6TA42 500/625 400/230 50 24VDC  electric  starting Auto  /manual  control 5925x2040x2778 5240x2040x2880 13800
500GF18-TK 12V190DT-2 1FC6  456-6TA42 500/625 400/230 50 4733x2040x2778 4817x2040x2950 12000
500GF18-TK1 12V190DT-2 1FC6  456-6TA42 500/625 400/230 50 4733x2040x2778 5240x2040x2880 12000
Note: Generator  can  be  selected  according  to  customer' s  need  or  actual  production.

Main  electrical  performance  data
Voltage   Frequency
Stable  regulating  rate Instantaneous  regulating  rate Recover  time Fluctuation Stable  regulating  rate Instantaneous  regulating  rate Recover  time Fluctuation
± 2.5% +20%  -15% 1.5s 0.5% 5% ± 10% 7s 0.5%
Voltage  adjustment  range:   idle  load  voltage  adjusted  95~105%  rated  voltage

Control  panel
Control  panels  for  natural  gas  generating  sets  are  used  to  control  the  electric  energy  transporting  of  generating  set.   They  have  the  functions  of  under-voltage,   overcurrent,   auto  speed  governing  and  reverse  power  protections  etc.   Meanwhile,   they  can  monitor  the  speed,   water  temp,   oil  temp,   oil  pressure  and  exhaust  temp  of  the  engine.   And  also  they  are  fitted  with  sound  and  light  alarm  devices.
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gas Source: Gas
Jinan Guohua Green Power Equipment Co., Ltd. was established in 2010 and is a professional manufacturer engaged in the research, development, production, sale and service of gas generators and diesel generators with different power ranges. We are located in the beautiful city of spring - Jinan, Shandong Province, China, and have convenient transportation access.

Taking combustible gas as the fuel for engine can solve the electricity and power problems in the area with rich combustible gas, and also reduce the pollution of directly venting combustible gas into atmosphere. To meet the market requirement, we develop several series of gas engines and generating sets based on self experience, professional qualification as well as absorbing world advanced technology and sophisticated experience. The gas engines include series 190 with 4 cylinders, 6 cylinders, 8 cylinders and 12 cylinders, and series 135 with 4 cylinders, 6 cylinders and 12 cylinders. The engines can be divided into outer mixing, mechanical inner mixing, electronic inner mixing, electronic lean-burnt, etc. Engine power range is from 8kw to 1500kw. The fuel gas includes natural gas, coke oven gas, biogas, coal mine gas, refinery gas and so on, which can meet the utilizing requirements of different areas and different gas compositions. Now our products are widely used as generating sets, compressor sets and other power take-off sets in the areas with rich fuel gas, for example oil fields.

Dedicated to strict quality control and thoughtful customer services, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment, including ABB robot assembly lines.

Our main products are natural gas generators, biogas generators, gas generators and diesel generators, with such brands as JiChai, Volvo and Cummins. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Western Europe, South America, Southeast Asia, Africa, etc. We also welcome OEM and ODM orders.

Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.

Jinan Guohua Green Power Equipment Co., Ltd a subsidiary of JDEC(Jinan Diesel Engine Co., Ltd. ). Jinan Diesel Engine Co., Ltd(JDEC) is the only internal-combustion engine manufacturing enterprise belonging to China National Petroleum Corporation(CNPC). It is also the main manufacture of off-highway medium&large power engine in China. At present, it covers area 600, 000square meter and has more than 2000 employees. The total asset is more than 800 million. In 1995, JDEC got the CCS(China Classification Society) ISO 9001 Quality System Approval. In 1996, it was listed in Shenzhen Stock Exchange as Shiyoujichai.

The main products named Jichai include diesel engines, diesel gensets, gas engine and gas gensets. These are widely used for oil field, railway, metallurgy, petrifaction, navy vessels, normal power supply and spare power, etc. They are not only sold well in 30 domestic provinces and regions but exported to more than 30 countries, Indonesia, Thailand, Kampuchea, Vietnam, Bangal, Pakistan, Lazakstan, Iran, Tunisia, Sudan, etc.

JDEC owns international advanced machining center, products testing center, physical&chemical test center and measuring center.

In 2005, JDEC cooperated with AVL of Austria and manufactured the high-speed medium 140 diesel engines, high-speed large 190 diesel engines and medium-speed 260 diesel engines coexisted with a power range from 30KW to 6300KW.
