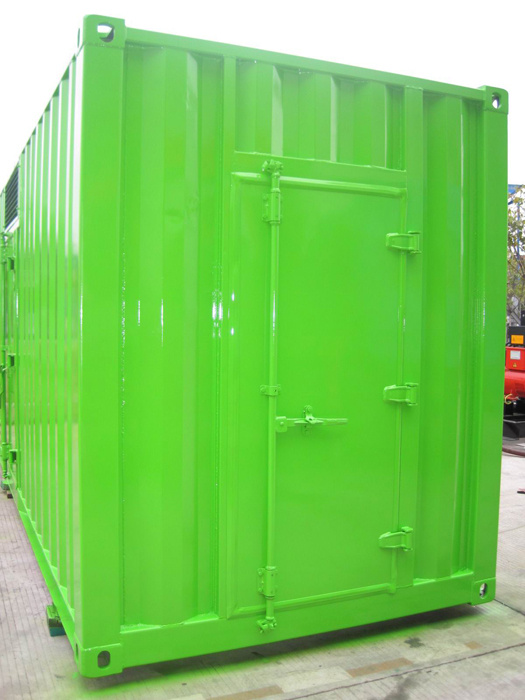

500kw Natural gas biogas biomass gas landfilled gas powered generator
1. Proven gas engine technology.
2. Designed Life time: 20 years, overhaul term: 25000 hours.
3. Over 80% cogeneration efficiency.
4. Economical and low-cost running: Lower gas and oil consumption.
5. Before-sale service: Proposal for right solution and genset selection, customized service.
6. After-sale Service: 1500 hours or one year covering all manufacturing defects.
7. Free of charge training for operation and maintenance. (at Avespeed headquarter)
8. Cylinder Block: High quality alloy cast iron for the rigidity performance and good stability.
9. Crankshaft and Rod: Robust and fully balanced crankshaft design for a more steadily rotation and higher strength.
10. Lubrication System: Dual spin-on filter can separate impurity above 10um effectively and lower cost.
11. Less accumulated carbon, reduces the abrasion between cylinder and valve, it can much prolong genset lifetime.
12. Compact design: Small size and weight
13. Wide spare parts availability: Base on Cummins engine parts, the engine base body made of the parts from the supplying factory for Cummins engine China factory.
14. Environment-friendly: State-of-the-art gas mixer_IMPCO, perfect air fuel ratio, especially designed firebox, sufficient combustion to reduce gas consumption and increase engine heat efficiency, effectively lessen NOX emission.
15. ISO standard production:
Long life and durable engine parts produced strictly accord to ISO9001-2000 International Quality Management System
16. Advanced ignition sensor and ECU (Electronic Control Unit) ignition system with computer core:
Precise ignition at right cylinder and right time, prompt startup ability to avoid the ratio of detonation and make stable engine.
17. Adopting high-precision special gas engine speed governor: Precise speed governing, instant recovering ability so as to fit different loads upon the three signals: Rotating speed, load and temperature.
18. Precisely-controlled engine air intake and exhaust time.
19. Equipped with the most well-known brand generator_Leroy Somer.
20. Using advanced intelligent PLC genset controller: Capable computer chip, with full monitoring, control, alarm and protecting function, all-in-one configuration for all kinds of demands.
21. Electrical system: 24V cranking motor starting and battery charging system.
22. Self-contained power genset, needs few accessories.
23. Parallel operation with genset or city power grid for option.
24. Instant startup configuration for option.
|
Description/Genset Type |
120GF153-T |
260GF1-RT |
400GF-PT |
500GF1-RT |
600GF1-RT |
|
Electrical Output ( kW ) |
120 |
260 |
400 |
500 |
600 |
|
Voltage ( V ) |
400 |
400 |
400 |
400 |
400 |
|
Engine Type |
T4190ZL |
T6190ZL |
TP12V190-2A |
T12V190ZL-2 |
T12V190ZL-2A |
|
Aspiration |
Naturally
Aspirated |
Turbocharged
Inter cooled |
Naturally
Aspirated |
Turbocharged
Inter cooled |
Turbocharged
Inter cooled |
|
Arrangement of cylinder |
4 – In Line
4-Stroke-Cycle |
6- In Line
4-Stroke-Cycle |
V – 12
4-Stroke-Cycle |
V – 12
4-Stroke-Cycle |
V – 12 4-Stroke-Cycle |
|
Bore/Stroke (mm) |
190/210 |
190/210 |
190/210 |
190/210 |
190/210 |
|
Engine Speed (rpm) |
1000 |
1000 |
1000 |
1000 |
1000 |
Fuel Consumption
(MJ/kWh) |
11.25 |
12.50 |
14.00 |
11.20 |
11.00 |
|
Exhaust temp. (centigrade ) |
≤ 550 |
≤ 550 |
≤ 550 |
≤ 550 |
≤ 550 |
|
Ignition mode |
Spark-Ignited |
Spark-Ignited |
Spark-Ignited |
Spark-Ignited |
Spark-Ignited |
|
Starting Mode |
24V DC Power |
24V DC Power |
24V DC Power |
24V DC Power |
24V DC Power |
|
Total Displacement (Lit) |
23.80 |
35.70 |
71.45 |
71.45 |
71.45 |
|
Insulation |
Class F |
Class F |
Class F |
Class F |
Class F |
|
Excitement |
Brushless excited |
Brushless excited |
Brushless excited |
Brushless
excited |
Brushless
excited |
|
Length (mm) |
4010 |
4650 |
5925 |
5357 |
5357 |
|
Width (mm) |
1600 |
1970 |
1970 |
1970 |
1970 |
|
Height (mm) |
2030 |
2170 |
2458 |
2690 |
2689 |
|
Weight(kg) |
6100 |
8000 |
12500 |
12500 |
13000 |
Beijing Avespeed Commercial & Trading Co., Limited is the leading manufacturer and supplier of diesel engines for marine propulsion, marine Gen-sets, stationery Gen-sets and power plant applications in China. AVESPEED manufactures diesel engines with unit output from 150KW to 4500KW, which can be used as propulsion of merchant vessels and special vessels from 1000 to 30000 tons DWT. AVESPEED manufactures marine auxiliary diesel generators with unit output from 150KW to 4500KW and stationery HFO generators with unit output from 500KW to 8000KW.
AVESPEED designs and builds turn-key power plant with an output up to 100MW as base load power plant, peaking power plant or industrial self-captive power plant in cement, textile, mining or oil and gas industries etc. The power fuel can be diesel oil, bio-diesel, heavy fuel oil (HFO) or bi-fuel. AVESPEED has been set up more than 200 heavy fuel oil (HFO) power plant projects in the world in recent years, especially in Nigeria, we have set up more than 60 HFO power plant projects there.
All of our marine diesel engines have achieved type approvals and work test approvals of, CCS, China Ships Inspection Bureau, and China Fishing Ships Inspection Bureau. Many products are rated as "National Grade New Products" and "Industry Brand Products" and awarded with "National Prize for Progress in Science and Technology", Now AVESPEED diesel engines are widely used for deep sea fishery, inshore fishing ships, ocean shipping, inland water navigation, passenger cargo ship transport, harbor tug, engineering ships, enforcement ships, naval auxiliaries etc.
New energy products developed in recent years including natural gas generator sets, biomass generator sets, tyre oil/vegetable generator sets and dual-fuel generator sets with unit output from 50KW to 1000KW.
AVESPEED also involves in the development and manufacture of the crystal silicon (mono and poly) solar panel/module, photovoltaic system, and other photovoltaic products. We supply solar panels ranging from 45W to 290W. AVESPEED's on-grid and off-grid inverters are the sole in China certified by TUV. The PV inverters range from 1KW to 1000KW.
Our products and manufacturing processes fully comply with product safety requirements, including TUV/IEC61215 & 61730, CSA/UL1703, MCS, CE and UKAS. Additionally, we have implemented best practices to protect the environment and conserve energy.
So far, our customers spread dozens of countries and regions in Europe, Middle East, Africa, South America, Southeast Asia and West Asia. AVESPEED is willing to cooperate with relevant famous enterprises and far-sighted, strong-willed and talented people at home and abroad by supplying our high-quality products and excellent service.
