500kw Low Oil Consumption Diesel Generator Set/Generating Set
| Price: |
US $ 75000set/sets |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set/sets |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |

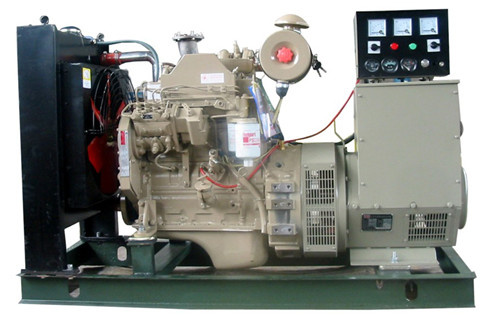

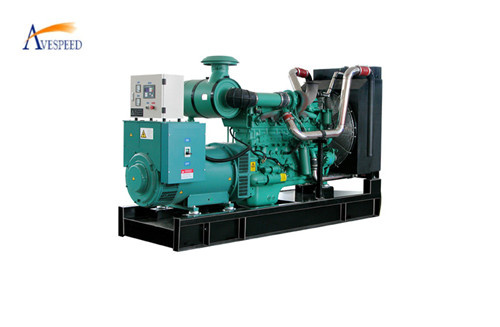

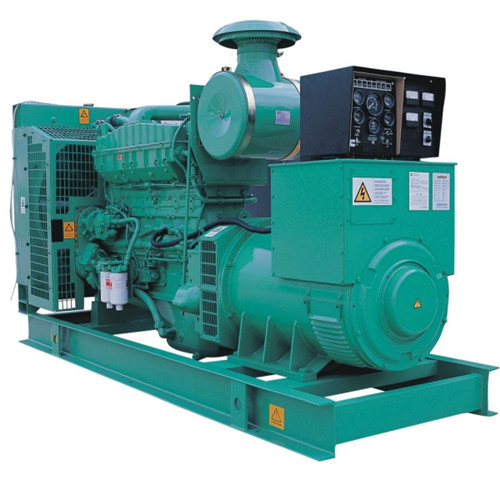

500kw low oil consumption diesel generator set/generating set
Generator set(Intro):
Avespeed generator set adopts unique PT supply electronic governed system, low oil consumption, flat fuel curve of diesel generator set, better economy under usual operating condition. Its starting system is 24V DC motor, 30A direct charger, supply starting current 625A~1800A at 0º C.
Whole features:
1. The standard gensets are heavy duty, durable 4-stroke gensets with outstanding transient response;
2. Output voltage: 380~480V (can be optional);
3. Frequency: 50/60Hz;
4. Rotating speed: 1500/1800Rpm
Genset parameter:
1. Power factor:Between 0.8-1.0(lag);
2. Fluctuation from no load to full load rotating speed down within 4.5%
3.Steady frequency regulating ratio:Load from 0-100%, not exceed 1.0%(electronic governing), not exceed 4.5% (mechanical governing)
4.Random frequency fluctuation load:From 0-100%, frequency fluctuation not exceed 0.25%. Opne circuit voltage, waveform distortion not exceed 3%. Three phase balanced load, waveform distortion not exceed 5%.
5.Fuel system:Unique PT fuel supply electronic governing system, low fuel consumption, flat fuel curve of diesel gensets, better economy under usual operating condition.
6.Starting system:24V DC starting motor, 30A direct charger, supply starting current 625A-1800A at 0º C.
You must also like these diesel generator sets:
Product packages:

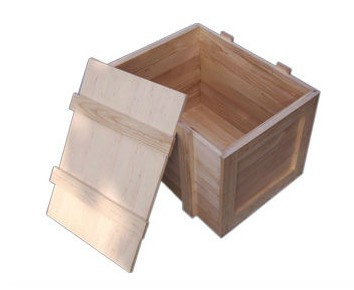

Export wooden case (standard) or Plywood case (optional)
| AVESPEED generator set(Data) |
| Genset Model | Engine model | Continuous Power | Frequency | Full-load Diesel consumption | Weight | Dimension |
| KVA | KW | HZ | L/H | kg | (L*W*H)mm |
| AVGC35M | 4BTA3.9-GM47 | 44 | 35 | 50 | 13 | 854 | 2020*700*1200 |
| AVGC64M | 6BT5.9-GM80 | 80 | 64 | 50 | 23 | 1186 | 2020*700*1200 |
| AVGC88M | 6CT8.3-GM115 | 110 | 88 | 50 | 33 | 1506 | 2140*800*1300 |
| AVGC120M | 6CTA8.3-GM155 | 150 | 120 | 50 | 44 | 1606 | 2140*800*1300 |
| AVGC180M | NTA855G1M | 220 | 180 | 50 | 62 | 3000 | 3000*970*1650 |
| AVGC200M | NTA855G1M | 250 | 200 | 50 | 62 | 3100 | 3000*970*1650 |
| AVGC240M | NTA855G2M | 300 | 240 | 50 | 70 | 3200 | 3000*970*1650 |
| AVGC270M | NTA855-G4M | 338 | 270 | 50 | 76 | 3200 | 3000*970*1650 |
| AVGC300M | KTA19G2M | 375 | 300 | 50 | 83 | 4250 | 3300*1000*1900 |
| AVGC360M | KTA19G3M | 450 | 360 | 50 | 97 | 4600 | 3300*1000*1900 |
| AVGC400M | KTA19G4M | 500 | 400 | 50 | 107 | 4700 | 3300*1000*1900 |
| AVGC500M | KTA38GM | 625 | 500 | 50 | 140 | 8060 | 4300*1350*2450 |
| AVGC600M | KTA38G2M | 750 | 600 | 50 | 167 | 8350 | 4300*1350*2450 |
| AVGC800M | KTA38G5M | 1000 | 800 | 50 | 209 | 8500 | 4400*1350*2450 |
| Prod Model: |
AVGC500M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Key Word: |
Diesel Generator |
| Genset Model: |
Avgc500m |
| Engine Model: |
Kta38GM |
| Continuous Power: |
500/625(Kw/kVA) |
| Frequency: |
50(Hz) |
| Full-Load Diesel Consumption: |
140(L/H) |
| Dimension(mm): |
4300*1350*2450 |
| Weight(Kg): |
8060 |
| Starting System: |
24V DC Starting Motor |
| Power Factor: |
Between 0.8-1.0(Lag) |
| Type: |
Self-Starting Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
