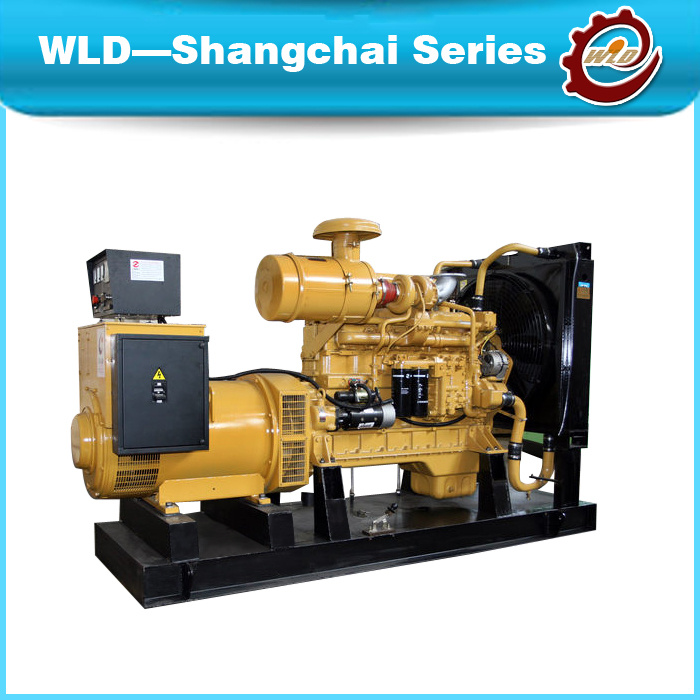

500kw/625kva 4 stroke Diesel Generator Set Specification:
SDEC-Shaichai is the leading manufacturer of diesel engines in China. Tens of years marketing reputation proves a reliable performance, economic investment and cheap maintenance cost which is client's benefit consideration. The disel generator set with completed after sale service sys and net in and abroad make thing easier.
Soundproof/Silent box:
-Excellent ventilation
-Fuel tank mounted on baseframe for 12 Hours working
-Highly Corrosion Resistant construction
-Excellent Access for Maintenance
-Security and Safety
-1m<80DBA / 7m<70DBA
Control panel:
-Automatic control panel(AMF), LED display.
-Four protection systems
-Emergency stop
-DSE/COMAP/SMARTGEN/HARSON
Optional:
- Trailer type
- Soundproof / water proof
- ATS(automatic transfer switch)
- water Heater
- Parallel system
- Remote system
Other products we can supply:
As a big generator OEM factory specialized in manufacturing, sales and leasing Services. We can provide Diesel Generator Set, portable Generators, Silent Generation sets, Electric Genset, Natural Gas Generating set etc. Under the famous brand of CUMMINS, DEUZT, SHANGCHAI(SEDC), YUCHAI etc. With power ranging 0.65-3000kVA; AC alternator under the brand of STAMFORD, MARATHON, FARADAY etc. We also offer spare parts for SFH, SEDC and HINO.
|
500kw/625kva 4 stroke Diesel Genset Specification : |
|
Genset Modle |
DS500 |
|
Dimension(mm) |
3650*1750*2000 |
|
Weight(kg) |
3850 |
|
Prime Power(KW) |
500 |
|
Rated current (A) |
900 |
|
Powerfactor(CosPhi) |
0.8 |
|
Altitude |
≤1000m |
|
Base Fuel Tank |
Eight hours(Standard) |
|
Engine Features: |
|
Engine model |
12V135BZLD1 |
|
Type of Governor |
Electronic governor |
|
Type |
V 12 cyclinder |
|
Bore*Stroke(mm) |
135*155 |
|
Compression ratio" |
16:1 |
|
Voltageregulation |
±0.5% |
|
fuel consumption rate(g/kw.h) |
≤200g/kw.h |
|
Alternator Features: |
|
brand |
Stamford, Simens, Marathon, Farady at option |
|
Voltage control |
AVR |
|
Numberofphase |
3 |
|
Overspeed |
2250RPM |
|
Excitertype |
AREP |
|
Insulation class |
H |
|
protection class |
IP22/IP23 |
|
Totalharmonics (TGH/THC) |
< 3.5 % |
|
Waveform NEMA = TIF |
<50 |
|
Waveform I.E.C. = THF |
<2% |
|
Bearing |
single |
|
Coupling |
Direct |
