500kVA Cummins Diesel Generator Set Parameter
Genset Specification:
-Genset Modle: DC400
-Prime Power: 400kw/500kVA
-Stangdby Power: 440kw/550kVA
-Rated current: 720A
-Rated Voltage: 400/230V
-Speed: 1500/1800rpm
-Frequency: 50/60Hz
-Output Type: AC Three Phase
-Power factor (Cos Phi): 0.8
-Altitude: ≤ 1000 m
-Base Fuel Tank: Eight hours(Standard)
-Standards: JB/T 1403-1999, GB/T 12501-1990
-Warranty: 1 Year or 1500 running hours
Engine Specification:
-Engine model: KTA19-G4
-Type of Governor: Electronic governor
-Type: 6 cyclinder in line
-Bore*Stroke: 159× 159mm
-Compression ratio: 17: 1
-Voltage regulation: ± 0.5%
-Fuel consumption rate: ≤ 209g/kw. H
Alternator Specification:
-Brand: Stamford, Simens, Marathon, Farady at option
-AVR model: R448 V50
-Number of phase: 3
-Overspeed: 2250RPM
-Exciter type: AREP
-Sustained short circuit curren --300% (3 IN): 10s
-Insulation class: H
-protection class IP22
-Total harmonics (TGH/THC): < 3.5 %
-Wave form NEMA = TIF: < 50
-Wave form i. e. C. = THF: < 2%
-Bearing: Single
-Coupling: Direct
Features:
-Complete system designed and built at ISO9001 certified facility.
-Factory tested to design specifications at full load conditions.
-With a range of options & accessories.
-Optimized ambient temperature design, keeps full prime power output.

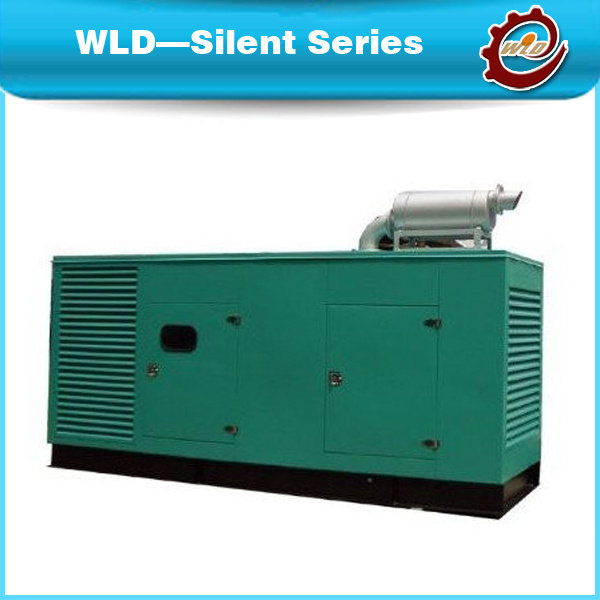

-Unique design and built-in high performance muffler, maximum minimizes the noise level.
-Holistic disassembly structure canpoy design and both sides doors, easy to examine and maintenance.
-Forklift slots and hook eyelets, more convenient and safety to make transportation.
-Fuel inlet and power outlet distribution panel equiped, more user-friendly and safety to operate.
-Strong outdoor plastic powder coating, brings high anti-rust protection and long time service life.
