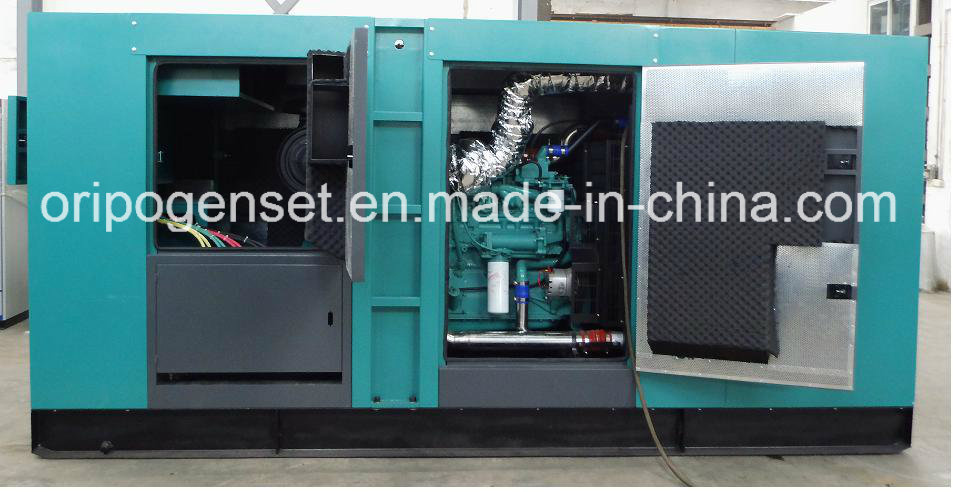

500kVA Silent Type Cummins Generator with CE/ISO/SGS Certificate
| Price: |
US $ 1set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
Engine of generator power plants :diesel genset
Brand: Cummins
Model: KTAA19-G4
Origin: Manufactured by Chongqing Cummins Engine Co., Ltd
Start Model: DC24V electric start
Steady Speed Droop:≤1%
6 cylinders ,in-line,4 stroke
AC generator head:
Brand: Leadtech
model: LTG274J
Matertials:100%copper
Freqency&Speed:50HZ,1500RPM
Insulation&Protection:H, IP22
Rated Voltage: 230/400V
Frequency regulation: ≤±0.5 %(stable)
Voltage regulator: standard AVR
brushless,self-excited,AC synchronous, single bearing
Auto start control system:
Brand:Smartgen 6110 or Smartgen 6120(with ATS) optional. Customers can also select other brand such as HGM6310, HGM6320, DSE3110, DSE5110, DSE7110 and DSE7210 etc.
(1)Widely used in all types of generator automatic control system for compact structure,advanced circuits,simple connections and high reliability.
(2)LCD display,automatic control, Chinese and English display interface. Can be adjust from front panel, or use the PC through programming interface, also can use a PC via RSR485 interface and monitoring.
(3) Function:high water temperature, low oil pressure, low speed and over load protection,etc.
ATS(Automatic Transfer switch)
It's widely used in hospital,airport,hotel,school and other emergency power supply equipments.
Once the main power failure, the control panel will received the signal to start the genset within 5 seconds, ATS will switch to the load wires to connect genset power supply,and the whole process takes less than 15 seconds. After the main power recovered 30 seconds, ATS automatically switch the load wires to connect main power supply,the genset will stop after running 180 seconds
Vibration Insulator:
Rubber paad mounting isolate base from engine/generator assembly Rubber pad mountings isolate base from engine/generator assembly make it stable:
Silencer
Intermal high-efficent prevent silencer. which can reduce the niise in outlet smoking vent
Super Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6. 1m<80DBA / 7m<70DBA
Our main products include various generator sets from 8KVA-1340KVA, such as style of open type, soundproofing, Rainproof,trailer, vehicle mounted, marine and other normal generator sets, auto transfer switch panels (ATS) and auto parallel connection switch panels. Our products are widely used in factories, buildings, marketplaces, hotels, railways, airports and ports
Our engines are from Cummins, , Shangchai-China and Weichai-China. Equipped alternators are from Stamford, Marathon, Leroysomer, Leadtech Etc.| GENSET TYPE | open/sound proof/weather proof/trailer/container |
| Genset output power range | 23kva-2000kva |
| Rated voltage | 220/380V,230/400V,240/415V,120/240V
240/416V,254/440V,266/460V,277/480V |
| Frequency | 50/60HZ |
| Power factor | 0.8 |
| Rated speed | 1500/1800rpm |
| Aspiration | Natural/turbocharged |
| Cooling system | Water cooled |
| Governor type | Mechanical/electrical |
| Starting system | 24V DC electric starting |
| output type | AC three phase/single phase |
| Motor | Brushless & self-excited |
| R.R.I.Suppression | BS EN 61000-6-4/BS EN61000-6-2 |
What is prime power,and what is standby power?
Prime Power : Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(eqvISO8528); A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
Standby Power : The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload allowed, utility parallel or negotiated outage operation capability is available at this rating.
| Prod Model: |
OCL500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Self-Starting Diesel Generator |
| Installation Method: |
Portable |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
Oripo Established in 1998, Oripo Power Engineering Co., Ltd is professional leading manufacturer, suppliers, exporter and authorized dealers of diesel gensets. With over 20, 000 square meters and a staff nearly 200, the headqauter is loacted in Foshan city, adjacent to Guangzhou which is the trade center of Guandong province. We offering power genset, industrial genset, silent genset, weather proof genset, Cummins genset, Perkins genset, Yuchai genset, Shanghai Dongfeng genset, Deutz genset, Weichai electric genset, China domestic genset, silent diesel generator, portable power generator, trailer diesel generator and electric power generator.
Currently, Oripo cooperated with multinational companies formed a strategic partnership. Import CUMMINS, PERKINS series generator sets, and purchase engine from with Cummins, SDEC, Yuchai, LOVOL, Deutz, alternater with STAMFORD, MARATHON, LEADTECH and other international or domestic famous brand. Establish a long-term friendly cooperation relations with the branded engine and alternator company, authorized to be the OEM partner, In 2009, Oripoe authorized by Cummins, Shanghai Dongfeng and Yuchai to provide OEM service. As professional qualified manufacturer provide OEM genset, spare parts, after sale service, in order to better serve customers and laid a solid foundation.
During the last ten odd years, Oripo has been dedicated to pursuing professional production, thus prevailing in the market with its superior quality, cutting-edge technology and tailor-made services. Moreover, with an endeavor to expand our business operations, we adhere to ethical business practices, transparent business dealings and work to attain the confidence and trust of our clients.
