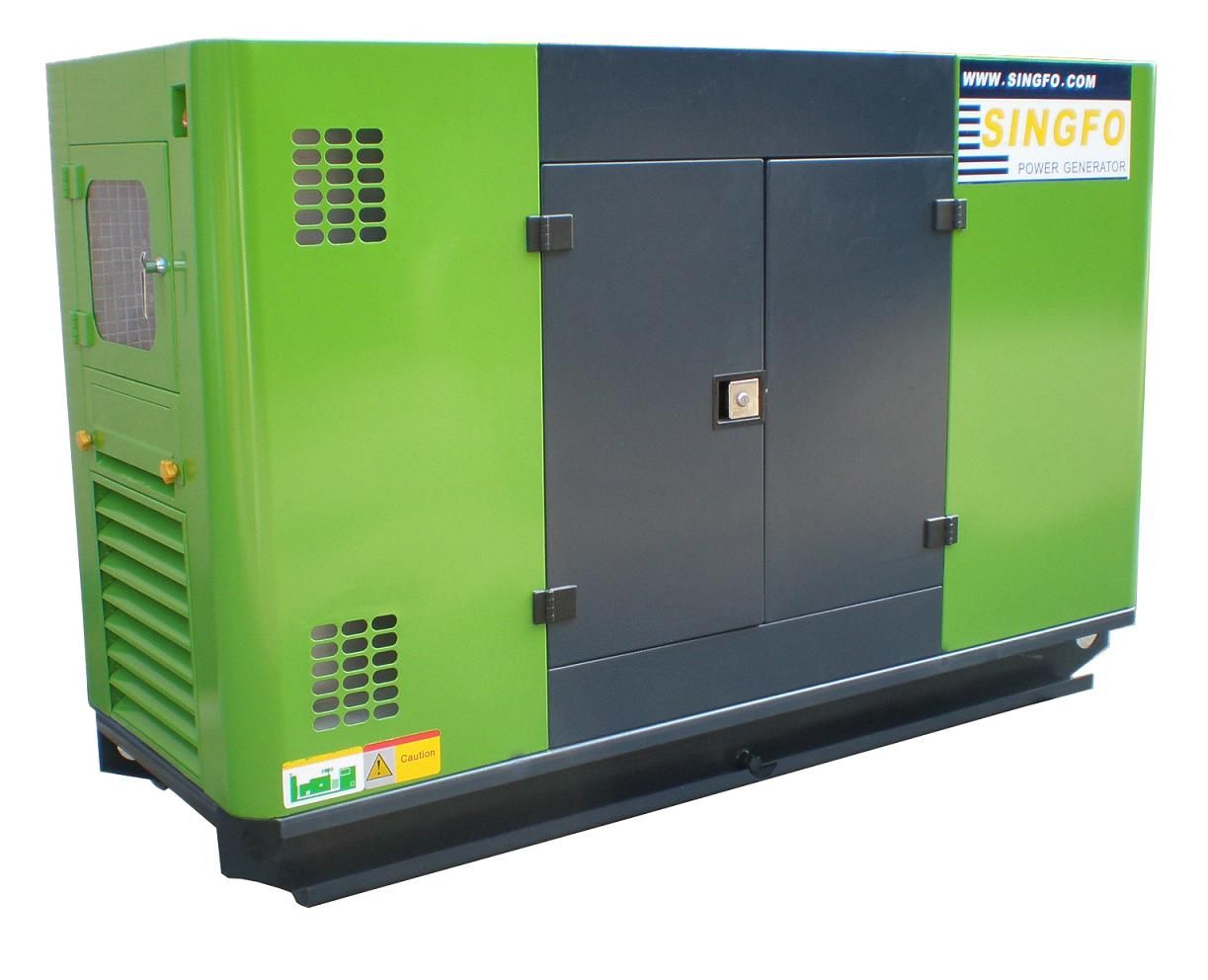

500kVA Diesel Genset
50Hz
Prime power: 360KW/450kVA
Standby power: 400KW/500kVA
Parameters:
1. Power factor: COSΦ =0.8lagging
2. Noise level: 72-75dB
3. Start-up mode: Electric
4. Fuel consumption: 72L/H
5. Rated currency(AMPS) 720AMP
6. Protections for low oil pressure, high water temperature, over-speed, over-current
7. Package dimension: 3750mm*1500mm*1850L*W*Hweight: 3590Kg
Engine:
1. Model: KTA19-G3
2. Power: 448kw
3. Rated Voltage: 380/220V
4. Cylinders/ layout: 6L
5. Voltage Control: AVR
6. Insulation: H
7. Start-up mode: DC24V electric start
8. Protection: IP23
9. Overload: 110%
10. Displacement: 19L
11. Inter-Cooling: Air inter-cooling
12. Steady Speed Droop ≤ 1%
13. Speed-Governing: Electric
Alternator parameters:
1. Stamford modela: HCI544C
2. Power: 360KW/450kVA
3. Rated voltage: 380/220V.
