Generator Manufacturers and Factories

Home Generator Products 500kVA Biogas Generator Sets with Cummins Engine

500kVA Biogas Generator Sets with Cummins Engine

500kVA Biogas Generator Sets with Cummins Engine
Price: US $ 1980/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

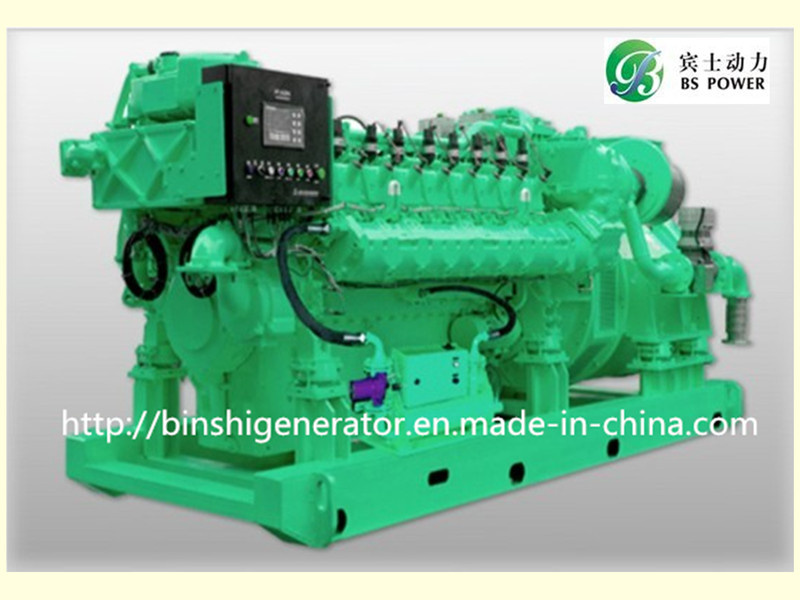

500KVA Biogas Generator Sets With Cummins Engine
Binshi Gas Generator Sets Description:

Genset Information:
Model: BCF400-B. Cummins Power KTAA38
Prime Power: 500KVA
Voltage Class: 400V
Electrical Efficiency: 36.7%
Heat Efficiency: 52.8%
Overall Efficiency: 89.5%
Frequency/Speed: 1500rmp
Storage Battery Quantity Specifications: 2x200Ah
Gen-set Dimention: 4500x1700x2400(mm)
Weight: 8200KG

Engine:
Feature: V12 Cylinder, 60 degree angel, 4 stroke, Turbocharge mid-cooling.
Ignition System: Atronic Import from US
Speed Regulating System: Yunsida 10Nm
Control Module: Deepsea from UK. DSE7320 or DSE8610 as your demond
Direction of Rotation: Anticlockwise. Face to flywheel side
Bore & Stroke: 159× 159(mm)
Displacement: 37.8L
Compression Ratio: 10.5
Fuel type: Biogas
Dry Weight: 3723KG

Faraday Alternator:
Model: FD5M-4
Prime Power: 400kw
1 Hour Overload Capacity: 110%
Power factors: 0.8
Frequency: 50Hz@1500rpm/60Hz@1800rpm
Voltage: 400V
Weight: 1308KG
Resist Radio interference level: <50
Insulation class: H
Protection class: IP23
Environment temperature: 40 degree centigrade
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Prime Power: 500kVA
Rated Voltage: 400/230V
Rated Frequency: 50/60 Hz
Rated Speed: 1500/1800rpm
Gas Source: Biogas
Guangdong Binshi Power Technology Co., Ltd is one of the leading manufacturers of diesel and gas generator sets (generator, genset, diesel generator, power generator, silent generator, generating set, power generation). With years' professional experience in generator set design, manufacturing, sale and service, BS Power has won good reputation both at home and abroad.

BS Power has built a number of production bases and service centers across the country. Among them, the South China production base and after-sales service center which is located in Dongguan-the famous manufacturing city in the world, covering an area of 8, 000 square meters, owns more than 100 employees, in which 58 percent is engineering technicians, and has numbers of senior engineers. BS Power is people-oriented, creating the best technical management, marketing and planning talents. With abundant resources and innovative research capabilities, BS Power has established a research and development center with famous domestic universities.

In order to improve BS Power's production and technology capability. The second production base, which is located in Hubei Province with the total investment of 7, 000 million yuan, covering an area of 35, 000 square meters, has been put into production.

BS Power has established long-term close partnership with the world famous generator manufactures, such as Cummins in USA, Perkins in UK, MTU and Deutz in Germany, Doosan in Korea, and the genset is equipped with the famous alternator manufactures, like Marathon (USA), Leroy-somer(France) and Engga(UK). Meanwhile, BS Power has achieved ISO9001: 2008 Quality Certification System and ISO14001: 2004 Environmental Management System.

BS Power sincerely wishes to cooperate with distributors of gensets worldwide to expand its high-quality products in your market to reach the win-win goal in the future. Information about BS Power(manufacturer), products will be offered on your request.
