| Price: | US $ 2000-20000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,EXW |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union,Money Gram |
Diesel Generator open type or silent type (soundproof type)
Generator Diesel Engine: Cummins, Perkins, Perkins Lovol, Deutz, WeiChai, Yangdong, Quanchai, ISUZU etc.
Generator with alternator: Stamford, Marathon, Leroy Somer etc.
Diesel Generator Rated output: 5KVA - 2000KVA
Rated frequency 50/60 HZ
Rated voltage 230/400, 220/380, according to customers
Power factor: 0.8(lag)
Super Silent type Noise level at 7m ≤65DB
Excitation Mode: (Brushless) Self-excitation and constant voltage (AVR)
Starting system: Electric start 12V/24V
Protection System: High water temperature protection, Engine oil alarm, Over load Protection
Overfrequency protection, Emergency stop
Control System: Digital Control Panel; Meter Panel
JIUAN Diesel Power Generator Set Advantage:
After-sales Service:
1 year or 1800 running hours subject to the earlier one.
24 hours after-sales contact number: 0086 18520604611
Contact Sales Manager
24 hours after-sales contact number: 0086 15817087202
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20KVA - 2000KVA
2. Deutz (Germany) 20KVA - 150KVA
3. Perkins (UK) 8KVA - 2000KVA
4. ISUZU (Japanese) 20KVA - 40KVA
5. Lovol (China) 20KVA - 150KVA
6. Yangdong (China) 8KVA - 40KVA
7. Weichai (China) 8KVA - 150KVA
8. Shanghai Engine
9. Yuchai Engine
10. KUBOTA Engine 10KVA - 50KVA
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
Terms of Payment:
More Diesel Generator Details:
|

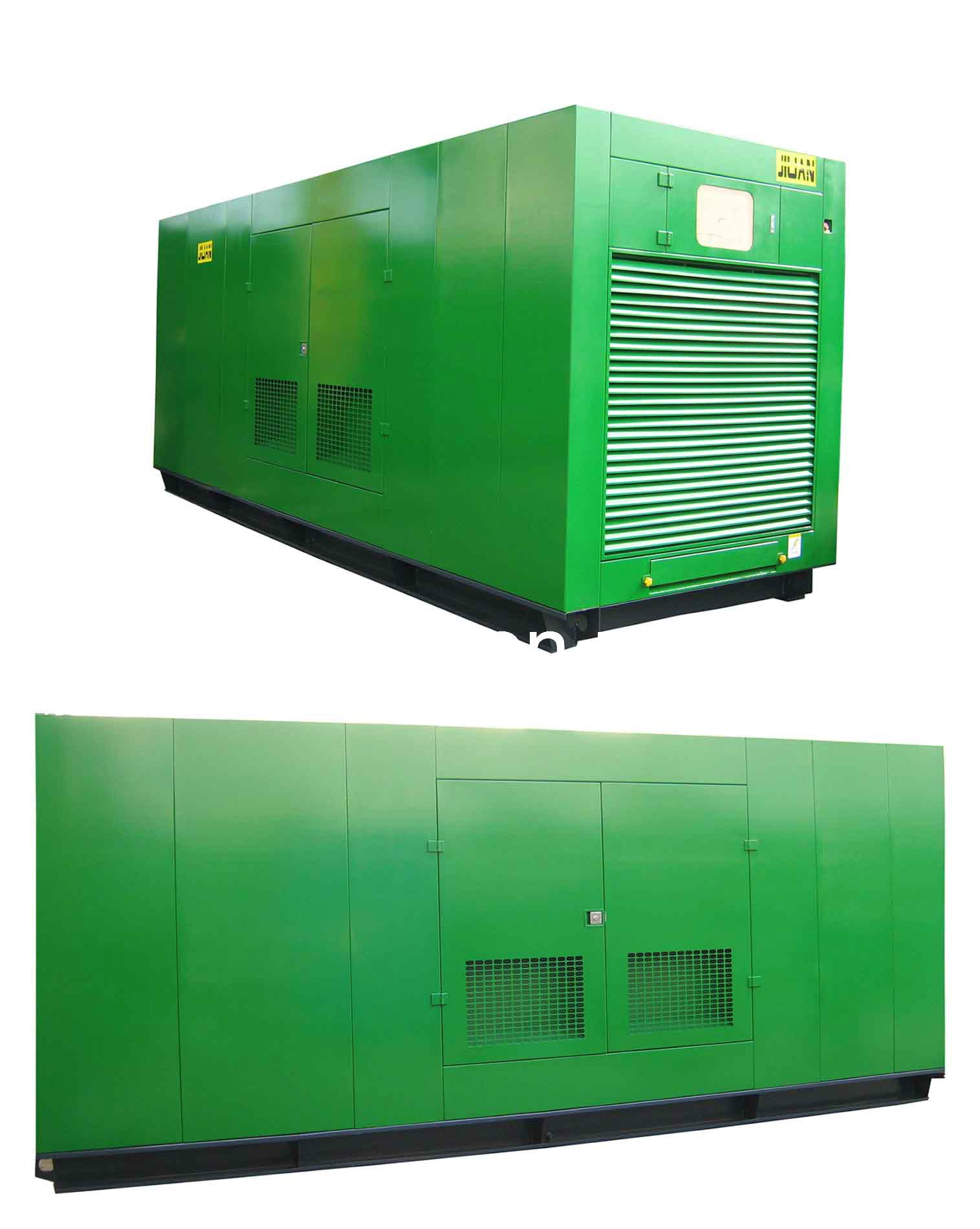

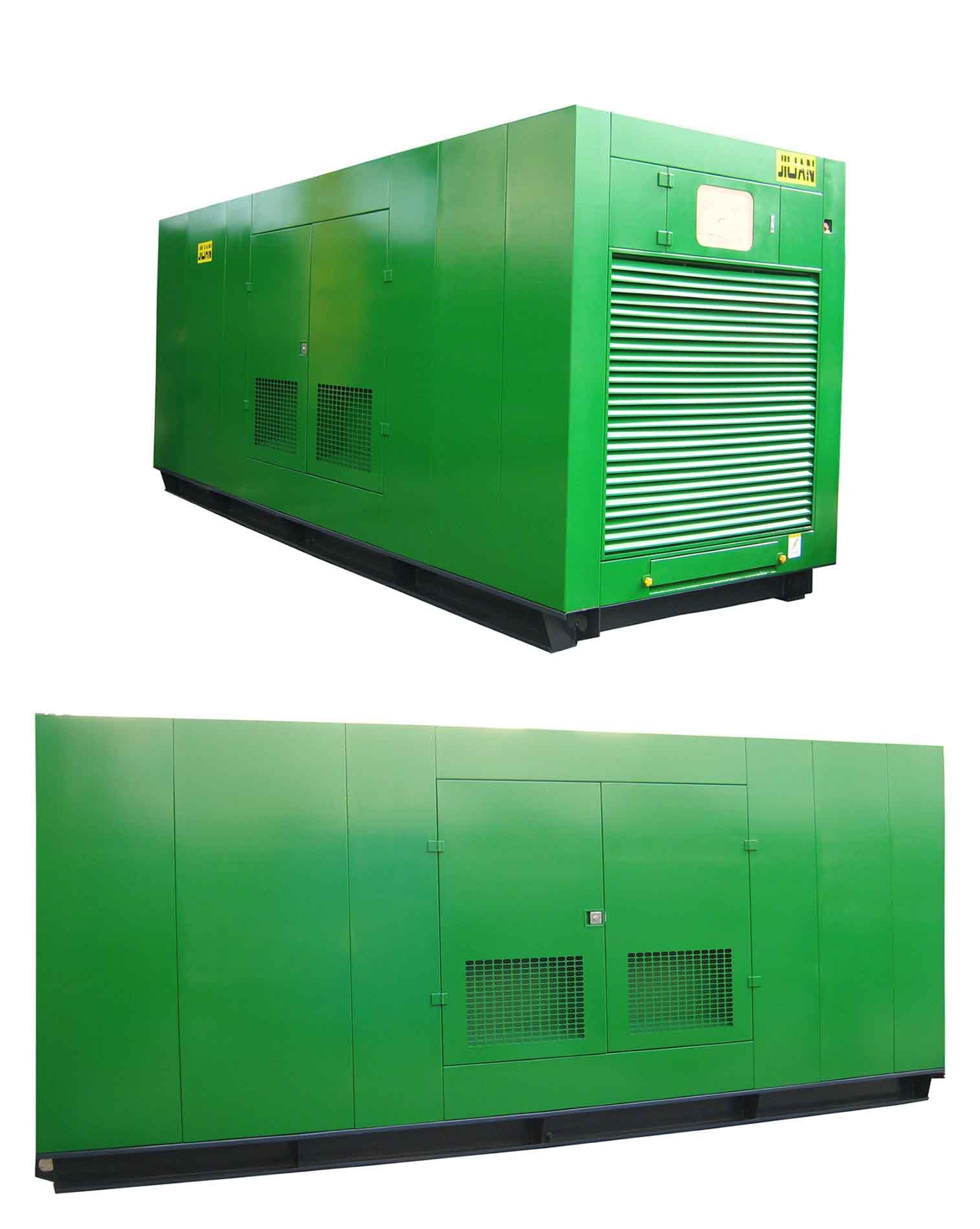

500KVA Silent Cummins Diesel Power Generator MODEL |
CDC500KVA/400KW |
| 500KVA Diesel Power Generator Powered by Cummins Engine | |
| Prime Power (50HZ) | 360KW/450KVA |
| Standby Power (50HZ) | 400kw/500KVA |
| Power Factor | 0.8 (Lagging) |
| Phase Wires | 3-phases 4-Wires |
| Start Model | Electric |
| Protection |
Low oil-pressure, High water temperature, Over-speed, Over-current |
|
500KVA Silent Cummins Diesel Power Generator Engine Model |
KTA19-G3 |
| Cylinders | 6 |
| Cylinder Arrangement | L |
| Bore x Stroke(mm) | 159X 159 |
| Compression Ratio | 13.9:1 |
| Speed | 1500rpm |
| Cooling Method | Water – cooled |
| Starting Method | 24V DC electrical start |
| Full Load Diesel Consumption (L/H) | 97 |
| Engine Displacement (L) | 19 |
| Inspiration (L) | Turbocharged Intercooled |
| Lube Volume (L) | 50 |
| Coolant Volume (L) | 95 |
| Noise (Db) | ≤ 80 |
|
500KVA silent Cummins Diesel Power Generator Alternator Model |
Stamford Copy HCI544C/Marathon/Leroy Somer/Samford |
| Alternator Power | 360KW/450KVA |
| Voltage | 380V/220V,400V/230V,220V/127V |
| Protection | IP23 |
|
500KVA Silent Cummins Diesel Generator Voltage Regulation |
±1% |
| Insulation Class | H |
| Voltage Control | AVR |
| Net Weigh (KGS) | 6300 |
| Dimensions (L x W x H) mm | 4500*1800*1900 (S) |
| Optional | ATS (auto transfer switch) |
| Auto Battery Charger | |
| Base Fuel Tank (for open type) | |
| Prod Model: | CDC500KVA |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diesel Generator: | Cummins 500kVA |
| OEM Factory: | Jiuan |
| Engine: | Cummins |
| Alternator: | Stamford; Marathon; |
| Control System: | Automatic LED Screen Auto Start, Auto Transfer |
| Cooling Method: | Water Cooling |
| Stroke: | Four Stroke |
| Installation Method: | Fixed |
| Type: | Basic Diesel Generator |
| Output Type: | AC Three Phase |
