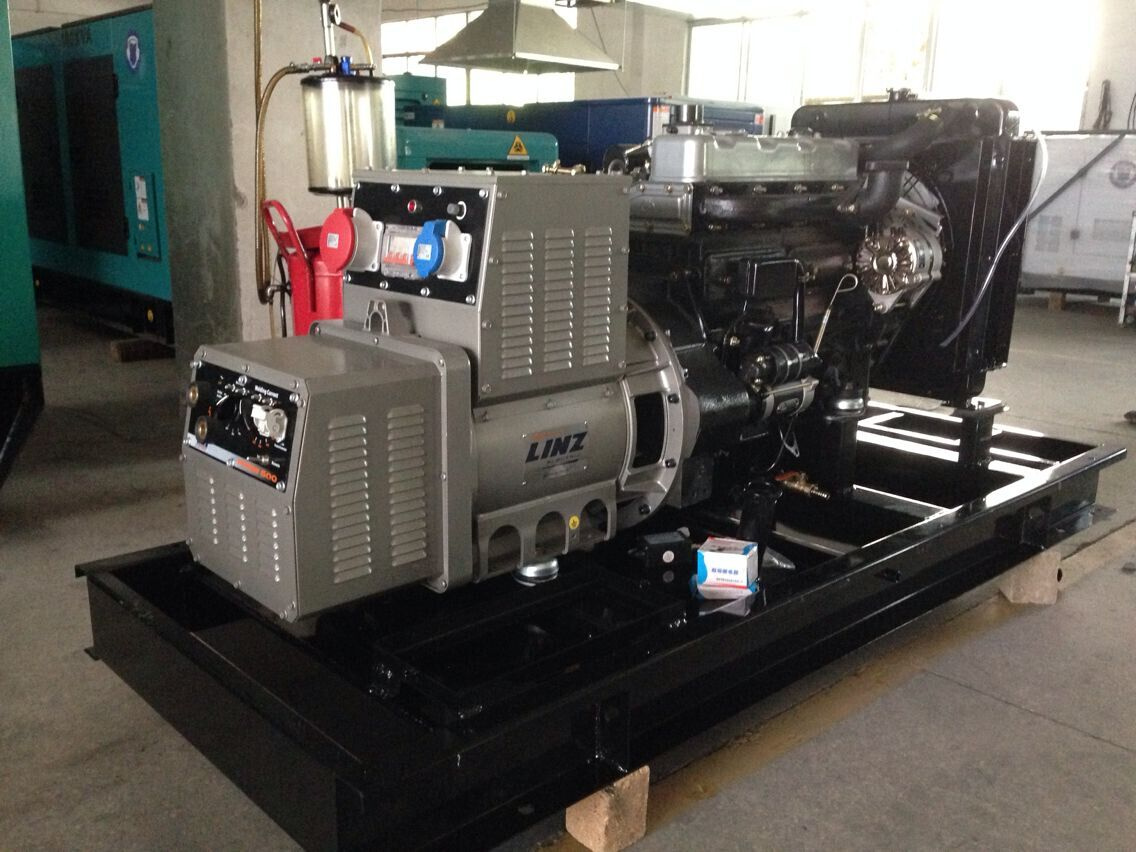

500A Fuel Free Energy Diesel Generator Welding Machine Silent Generator

professional generator oem factor in guangzhou
. stock available
. generator 150kva
. sgs soncup

1. factory directly! professional generator oem factory guangzhou
2. super silent 60db(a) at 7 meters
3. certificate: sgs, soncap approval


1. description of products
AIR COOLED DEUTZ ENGINE WELDER GENERATOR SET - Model: CDD-400DC

Welder Generator Set Model	CDD-400DC
Welder current (ADC)	400A DC max current at 35%
	310A dc max current at 60%
Welder Gen.Set Powered by DEUTZ Engine
Diesel Engine Model	F3L912D
Engine Characters	3cylinder in line air cooled 4 stroke naturally intake
Bore×Stroke (mm×mm)	100×120
Displacement	2.282L
Compression Ratio	17:1
Prime Power/Speed(KW/rpm)	26/1500
Speed Governor	Machine
Cooling System	Air cooled
Total Lubrication System Capacity (L)	11L
Fuel Consumption at 100% Load(L/Hr)	7.2L/H(at 1500RPM)
Starter Motor	DC12V
Flywheel Alternator	AC12V
ALTERNATOR MODEL	LINZ ALTERNATOR PROW18 400DC
WELDER
No Load voltage(VDC)	72VDC
Regulation range(ADC)	35-400ADC
Max current at 35%	400A
Max current at 60%	310A
Welding voltage(VDC)	20-36VDC
Electrode diameter mm (rutile,basic cellulosic, incox)	1-6mm
ALTERNATOR
Frequency(HZ)	50HZ
Voltage (V)	380/220V
Revolutions per minute	1500rpm
Three phase power(KVA)	13KVA
Single phase Power(KVA)	5KVA
Power Factor (cos¢)	0.8
Insulation Grade	H
Protection Grade	IP23
Brush/Brushless	Brushless
Dimensions (LxWxH)  mm	1500x850x900 open type 1600x1550x1200 trailer canopy
Gross Weight (KGS)	650kgs for waterproof canopy 1000kgs for trailer canopy
20FT	12 PCS for open type 3PCS for trailer canopy

after-sales service
1 year or 1800 running hours subject to the earlier one.
24 hours after-sales contact number: 0086 18520604611

terms of payment

t/t
western union
cash

1. trade terms of products

generator warranty	1800 hours or 1 year subject to the earlier one.
delivery items	fob,cnf,cif,exw,delivery guangzhou
delivery time	15-20 days after receiving advanced payment.
generator moq	1pcs
package	pe film+pearl wool+iron frame (standard export packing)
certificate	sgs;cummins authorized factory;tuv;son cap
loading port	guangzhou,shenzhen,shanghai
payment	t/t cash or western union
please give detail needs in your inquiry, so that we can make power solutions for you.

introduction of compay
business type: manufacturer
location: guangzhou,china (mainland)
year established: 2008
registration no.:440111000040106

main products:
professional diesel generator oem factory.
cummins engine for genset;
perkins engine for genset;
china engine for genset;
isuzu engine for genset;
kubota engine for genset;
lovol engine for genset;
diesel welding for genset;
diesel water pump;
genset spare parts


production line of product

our diesel generator set production range is as follows:
* engine (motor) for choice

1. cummins (usa ) 20kva - 2000kva
2. deutz (germany) 20kva - 150kva
3. perkins (uk) 8kva - 2000kva
4. isuzu (japanese) 20kva - 40kva
5. lovol (china) 20kva - 150kva
6. yangdong (china) 8kva - 50kva
7. weichai (china) 8kva - 150kva
8. shanghai engine
9. yuchai engine
10. kubota engine 10kva - 50kva

* canopy for choice
1. silent type (75- 80 db(a) at 7 meters)
2. super silent type (65-70 db(a) at 7 meters )
3. open type
4. trailer type (mobile)
5. container type
6. parallel system

* alternator for choice (brushless with avr)
1.stamford newage
2.leroy somer
3.marathon
4.leateck

features of gen.set with deutz engine

1.12 months world-wide warranty service
2.short delivery time,as we always have deutz engine in stock
3.spare parts are easy to get from worldwide market with much cheaper price
4.perfect after-sales service network
5.both 50hz @1500rpm and 60hz@1800rpm are available
6.rigorous test including 50% load,100% load and 110% load
7.stronger power with reasonable price
8.international brand feel free to use
9.deutz brand has air-cooled engine and water cooled engine for option

standard configuration of generator with deutz design:

1.original engine - germany brand

2.alternator coupled with stamford alternator,leroy somer alternator,marathon alternator,copy stamford alternator

3.soundproof canopy, super silent, open frame, trailer mounted,containerized

4.controller smartgen 6120 with amf as standard or deepsea 6020

5.circuit breaker chnt,abb,schneider,ask

6.base fuel tank 8 hours continuous running for soundproof type, 24 hours continuous running for super silent type.

7.free-maintenance battery with auto battery charger

8.industrial silencer each 2 pcs per set with flexible exhaust hose.


alternator features:

world famous brand ac alternator: stamford,leroy somer, marathon,faraday,copy stamford
brush less with avr
1.brush less 4 poles,rotation magnet
2.avr voltage regulation less than ±1%,avr self-regulated
3.protection class ip23
4.insulation system is class "h"

control system features:

standard smartgen 6120 or deepsea dse6020

language display: english;spanish;russian;chinese

data display: power,voltage,current,frequecny,speed,oil pressure,water temperature,fuel level

protection (auto alarm system):high voltage;low voltage;high speed;low speed;over current;lose phase;low oil pressure;high water temperature

functions: auto start;auto stop;ats(auto transfer system);amf(auto mains failure system)

why choose us

good reasons why you choose jiuan generator:

1.professional generator oem factory in guangzhou.

2.14 years experience in generator and exporting.

3.high quality products at affordable prices.

4.products lines verified by professional inspectors.
5. place orders safety.

6. all engines and alternators are brand new and original - credible.
7. controller deepsea or smartgen -big brand.

8. air breaker abb chnt schneider ask - safety.

9. 1% parts free are available for your order.

welcome to contact us
www.jiuan-power.com
