1 The blade is made of glass fibre reinforced plastic.
2 Rotor is made of neodymium iron boron.
3 Main technical data as follows:
(1). Machine Type: Vertical-axis wind power generator
(2). Blade form: Propeller
(3). Blade number: 5 PCS
(4). Blade material: Glass fiber reinforced plastic
(5). Type of generator: Permanent-magnet 3 phase AC
(6). Type of tower: Guy wire or free standing

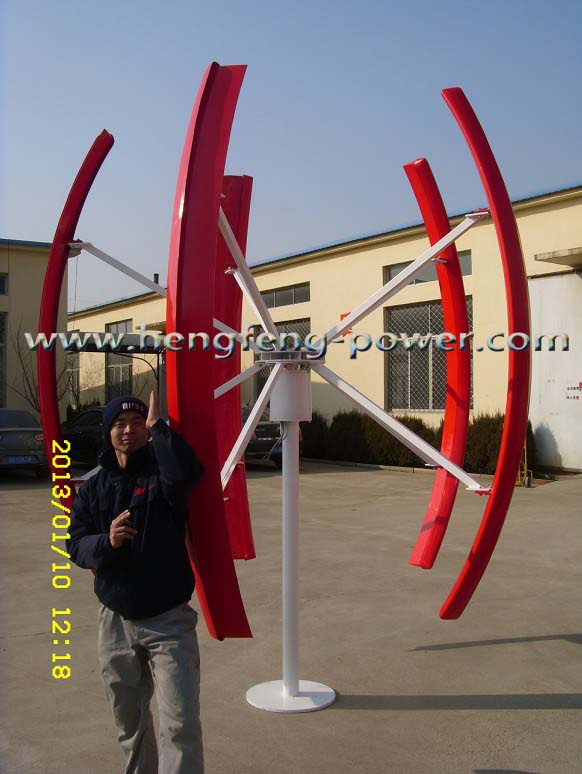

HF-VAC-5KW vertical axis wind generator
Rated Power: 5KW
Blades: C-shaped
Blades number: 5 pc
Rotor Diameter: 3.8 m
Blade Length: 3650 mm
Blade Width: 300 mm
Blade Weight: 20 kg
Rated Rotated Speed: 100 r/m
Rated Wind Speed: 10m/s
Output Voltage: 220v
Start Up Wind Speed: 2m/s
Operating Wind peed: 3-25m/s
Security Wind Speed: 40m/s
Output Controller System: Charger and inverter
Battery: 12V200AH 18pcs
Can Supply Power for: Refrigerators, Washing machines, Water pumps, Cookers, Color television sets, Lighting, Electric fans, Charge
Product advantage:
1. Generator: Our generator with cooling function. It can not burn out when the wind is very strong.
2. The wire package in the generator is made of copper wire which can resist 16degree heat. High insulated performance, high magnetic permeability, high generating efficiency.
3. The magnetic sheet is Neodymium iron boron not ferrite. Neodymium iron with longer life time than ferrite and not easy to demagnetize. The stator is made of 470 silicon steel sheet. Not iron sheet.
4. Blades: Streamline shape tree PCS FRP blades. Unidirectional fiber fabric, use of epoxy rein mold made by hand. Not hollow it is inner foam. Low noise, no need to adjust and good quality of balance, no shaking. Strength, fatigue resistance.
5. Controller is solar and wind hybrid, have manual brake button. 200% immediate protection foundation.
6. Inverters are pure sine wave, not square wave or vehicle-bone inverter.
The material of tower is steel tube, PET paint, anti-decaying, antiseptic, rust-proof.
Qingdao Hengfeng Wind Power Generator Co., Ltd is one of the leading wind turbine manufacturer in China. Company start at 2004, Workshop covers more than 5000 square meters. It is about 1 hour by car to Qingdao Airport. And 30 minutes to Qingdao port. The traffic is very convenient.
Our company mainly produces 150 watts to 100 kilowatts of small and medium horizontal axis, vertical axis wind turbines, wind and solar power supply system, widely used in off-grid and on-grid power generation system. Produced in strict accordance with the ISO9001 international standard production system management, we have standard production line and automated packaging line, strict product testing system, advanced test equipment, to ensure provide customers the highest quality products and services; All products have achieved CE certification. Hengfeng has unrivalled experience and has built up a global reputation for their robust and reliable performance.
Our products has been export to more than 60 countries, for example, Europe, Middle East, Southeast Asia, Australia etc; Widely applied for island, military, maritime monitor, home use, commercial business and remote area etc, we have integrated design, production, sale and after-sale service. If you are thinking about reducing your domestic energy bills or providing a multi-site energy solution for your business, HENGFENG can help achieve your renewable energy aspirations. We make sure that your wind turbine choice will work productively for you and deliver all-round environmental benefits.
