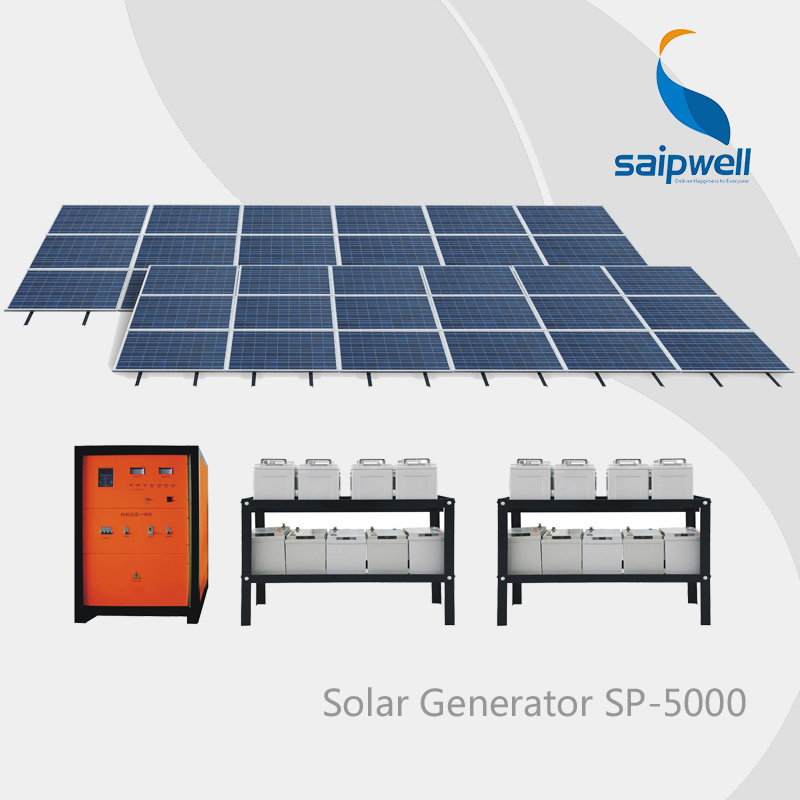

Saipwell 5000VA High Power Solar System (SP-5000H)
Specifications
Solar power system
1. Top Sale, No MOQ
2. Long warranty: 25 years.
3. High quality, Low price
4. CE ISO ROHS
High quality solar energy system/solar energy systemfor home/off grid solar energy system1-10kw / portable solar energy system 5kw (with IGBT of Mitsubishi Inverter)
Introduction:
We adopt the PV generating technology to develop and the product has the features of no pollution, no noise and maintenance-free. The system can provide the charge functions of house using.
1. Avoid using the machine under such conditions as having flammable or explosive or erosive gas and too hot places.
2. This system equips with solar panel and battery. Under the condition of fully charged, it can supply power for many electric products. ( the parameters differ according to the different geographical, using condition and using time).
Features:
Simple structure of the system.
Suitable for living in scattered villages or driving travel
Easy, convenient, quick, safe, green
FAQ
Question: What can be included for this system?
Answer:
This system includes: Solar panels, inverter, controller, battery, solar pv cable, bracket, and disconnectors.
Question: What's the advantage for this solar system?
Answer:
1. Steady operating
2. The most advantage: On grid energy backup(not means sell electricity, just backup)
3. CE Certified
4. Easy installation according to our instructions
5. Professional parts supply
Question: How to place and install them before we use?
Answer:
The system can be put on ground outside house, but must be kept away from water or spray. And the solar panels must be placed away from shadow, the less dust the better in the air. And the solar panel must be placed to a certain angle(20-45 angle) which will be faced directly to the sun
Question: What about the lifetime?
Answer:
The life time for solar panel is 25years, another parts is for 6-15years.
Package data:
PartSize (L*W*H mm) Weight(kg)
Power box 500*640*930 65
Solar panel 1200*850*1530 405
Solar panel bracket 1660*85*900 226
Battery 1070*744*765 1017
Battery bracket 2270*85*150 65
Solar on grid system: Solar panel+grid tie inverter
Solar off grid system: Solar panel+hybird inverter(controller, inverter)+battery
(other parts as PV array combiner, rack, cable can optional)
Contact Us
Tel: 0086-021-56026033-8052
Mobile: +86 15026900836
http://www.saipgroup.com/
We're Professonal, as always~
|
Technical data: |
|
|
|
|
|
Item No. |
SP-5000H |
|
Capacity |
5000VA |
|
System voltage |
220VDC |
|
Best output power everyday |
13512WH |
|
Inverter |
Output wave |
Pure sine wave |
|
Output voltage |
AC110/220V |
|
Output frequency |
50HZ/60HZ |
|
Output current |
18.2A(220V) / 36.4A(110V) |
|
Precision of output voltage |
± 3% |
|
Precision of output frequency |
± 0.1% |
|
False output wave of AC |
< 3% |
|
Overload ability |
120%, 30 seconds |
|
Invert efficiency |
> 85% |
|
Solar panel |
Pmax |
3600W |
|
Vmp |
315V |
|
Imp |
11.4A |
|
Battery |
Capacity |
216V200AH |
|
Package data: |
|
Part |
Size (L*W*H mm) |
Weight(kg) |
20' (pcs) |
40' (pcs) |
|
Power box |
500*640*930 |
65 |
8 |
20 |
|
Solar panel |
1200*850*1530 |
405 |
|
Solar panel bracket |
1660*85*900 |
226 |
|
Battery |
1070*744*765 |
1017 |
|
Battery bracket |
2270*85*150 |
65 |
|
Load reference: |
|
Name of Load |
Power(W) |
Quantity |
Working Time per Day (H) |
Working Days |
|
Color TV |
65W |
1 |
6 |
3 days |
|
Satellite TV Receivers |
25W |
1 |
6 |
|
LCD Computer |
100W |
1 |
4 |
|
Energy-saving lamp |
11W |
6 |
6 |
|
Printer |
30W |
1 |
1 |
|
Electrograph |
150W |
1 |
1 |
|
Water Pump |
200W |
1 |
2 |
|
Refrigeratory |
100W |
1 |
24 |
|
Washing machine |
300W |
1 |
1 |
|
Air-condition |
1000W |
2 |
7 |
Shanghai Saipwell Electric Co., Ltd. is a subordinate of saip electric group company limited, which is wholly invested by our group company. Depending on our group company's advanced technology and equipment introduced form developed countries, we have tremendous technical capabilities. Buondi mainly develops and produces thermostats, heaters, hiboxes and all kinds of waterproof enclosures, solar charge controller, solar generator, wind generator etc.
