5000W China Permanent Magnet Wind Generator
With Patent Design
| Sunning Series 5000W Wind Turbine Generator |
| Rated output power | 5000W |
| Maximum outpower | 5100W |
| Rated voltage | 48V |
| Start-up wind speed | 1.5m/s |
| Cut-in wind speed | 2.0m/s |
| Rated RPM | 400 |
| Rated wind speed | 12m/s |
| Rated current | 104.1A |
| Rotor diameter | 4.1m |
| Blades | 3 |
| Over speed protection | The controller of Electromagnetic braking magnetic damping and blades stall |
| Working temperature | -40ºC~120ºC |
| Survival wind speed | 60m/s |
| Noise | <45 db (average wind speed of 5m/s) |
| Material of blades | Nylon & Glass fiber |
| Type of generator | Brushless three phase permanent magnet generator |
| Material of generator | Aluminum alloy Shell |
| Net weight | 120kg |
| Connection | Flange connection |
| Type | Downwind rotor |
| Warranty | 2 Years |
| Certificate | ISO9001:2008 CE RoHs |
5000W China Permanent Magnet Wind Generator With Patent Design Features(48V)
1. Equipped with famous brand sealed bearing
2. Waterproofing
3. Efficient Aero-dynamic design
4. High strength, corrosion resisting aluminium alloy
5. Unique neodymium iron boron permanent magnetic material
6. Low noise level
5000W China Permanent Magnet Wind Generator With Patent Design Performance(48V)
1. Low start-up wind speed ONLY 3M/S
2. Large range of wind speed usability(3.5m/s-25m/s)
3. Cp value about 0.43
4. All-over automatic system
5000W China Permanent Magnet Wind Generator With Patent Design Quality Guarantee(48V)
1. Two-year limited guarantee
2. Highest quality manufacturing standards(ISO9001)
3. Wide range of temperature tolerance(-20ºC65ºC)
4. High saltfog, dust and sand resistance
5. Strong wind resistance and high survival wind speed
6. Durable materials and components
5000W China Permanent Magnet Wind Generator With Patent Design Easy Transportation And Installation(48V)
1. Light and compact size
2. Intuitive online installation guides
3. Wide installation and maintenance network worldwide
4. Perfect after-sales service system

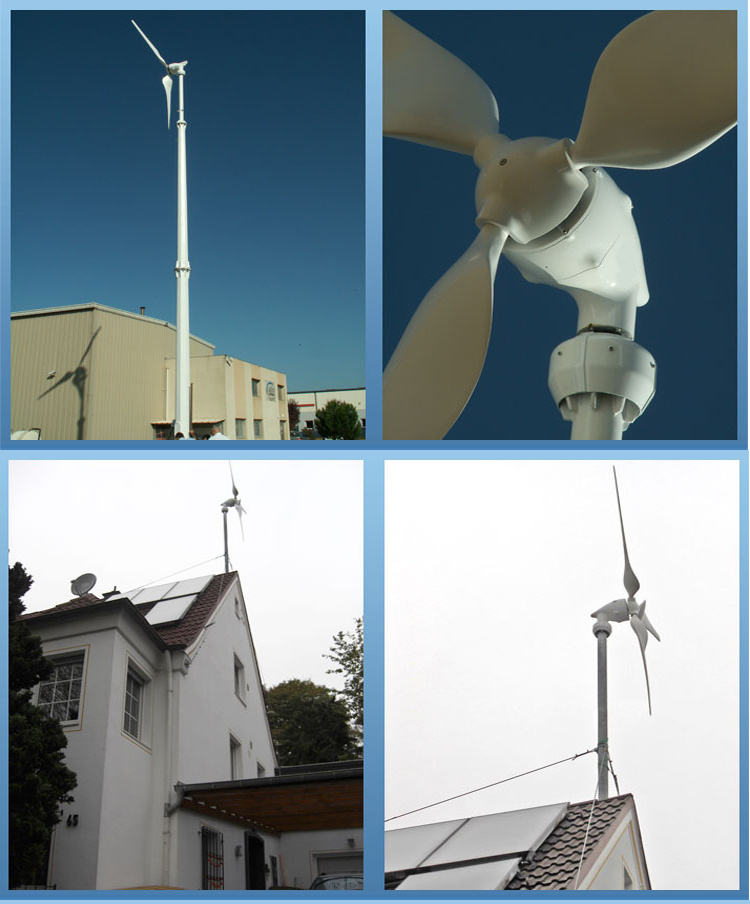

The wind turbine generator (48V)

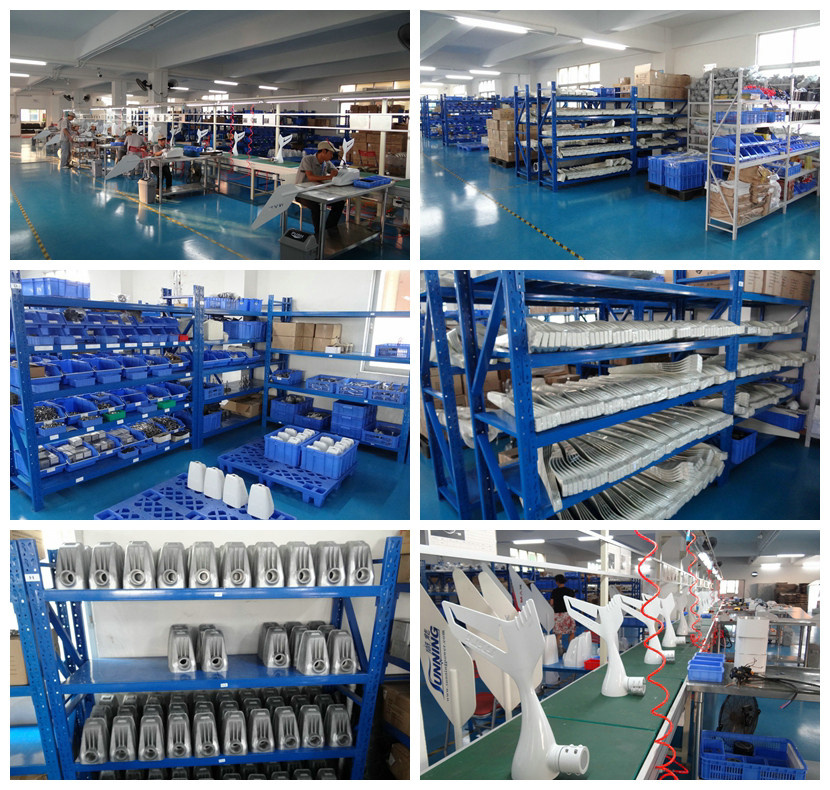

Our factory
About our team
Our wind turbine is widely use at the area of street light system, off grid CCTV system, outdoor advertisement, small house power etc.
