Home Generator Products 50-2000kw Wood Chips Biomass Gasifier with Gas Generaor Set

50-2000kw Wood Chips Biomass Gasifier with Gas Generaor Set

50-2000kw Wood Chips Biomass Gasifier with Gas Generaor Set
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T

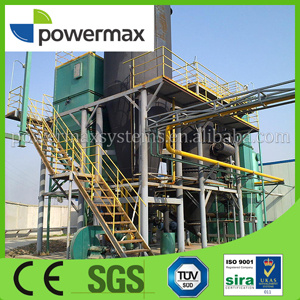

POWERMAX BIOMASS GASIFICATION POWER PLANT The basic principle of POWERMAX's biomass gasification system(abbreviated as BGPS) is to convert Agriculture and forestry products and wood processing remains (including rick husks, wood powder, branches, offcuts, corn straws, rice straws, wheat straws, cotton straws, fruit shells, coconut shells, palm shells, bagasse, corncobs and etc.) into combustible gas . It is then used as fuel in gas engine to generate electricity. Biomass gasification successfully conquers the disadvantages of biomass, such as low flammability and wide diversity. Biomass gasification system is characteristic of small land requirement and environment friendly. It's one of the most effective way of biomass utilization. Our biomass gasification process includes three steps. The First step is biomass gasification, which convert biomass into syngas. The Second step is syngas purification. The producer gas coming from gasifier usually contains contaminants including dust, coke, tar and etc. The contaminants will be removed by the purification system to ensure normal operation of gas engine. The Third step is power generating in gas engine. The high temperature exhaust gas may be reused by waste heat boiler to generate steam or hot water for civil or industrial use). Steam turbine may also be considered to make a gas-steam combined cycle power plant, which will increase the total efficiency. Matching Set of  Gasification Systems and Gas Generator Sets The POWERMAX biomass gasification power generation systems are based on a modular concept and are able to applicable for 50-20000KW biomass power station. There are four series of biomass gasification system offered by POWERMAX which ranges from 50-2000KW of power generation: CFBG (Circulating Fluidized Bed Gasifier) Series, UFBG(Updraft Fixed Bed Gasifier) Series, DFBG(Downdraft Fixed Bed Gasifier) Series, TFBG(Twin-fire Fixed Bed Gasifier). A series biomass generator sets from 50KW to 1000KW are developed by POWERMAX to combine with POWERMAX advanced gasification technology. These gas generator sets are using the high efficiency Siemens technology alternators, Chinese top brand medium speed gas engine(500-1000rpm) with advanced European engine control systems. The high performance of the POWERMAX biomass gasification plants and the later production of electricity with the gensets represents a competitive solution when compared with conventional boiler-fired system.   Comparing with other renewable power generating system, POWERMAX-BGPS is characteristic of:   1). Flexibility. Gas engine, gas turbine and even waste heat recovery boiler may be used considering various power plant capacity requirements. It ensures high power generating efficiency. Different capacities of biomass power generation plant can be designed with various types of POWERMAX-BGPS system. 2). Clean technology. Biomass, as one kind of renewable energy, may reduce the emission of carbon dioxide, sulfur dioxide causing from fossil fuel. Nitrogen oxides emission is very limited in our biomass gasification power generating system because of low temperature (700°C~1200°C). 3). Economic. POWERMAX-BGPS is capacity flexible. Even small size biomass power plant is also profitable. Simple process and less land requirements make biomass gasification power plant more economic comparing with other renewable energy. Generally speaking, biomass gasification power generating is the most economic technology in renewable power generating plant, the cost of which is nearly the same as small-size conventional power plant.
Prod Model: 50-2000kw
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type Of Gasifier(1): Circulating Fluidized Bed Gasifier
Type Of Gasifier(2): Updraft Fixed Bed Gasifier
Type Of Gasifier(3): Downdraft Fixed Bed Gasifier
Type Of Gas Cleanning: Dry Type Gas Cleaning System
Frequency: 50/60Hz
Rated Voltage (V): 220/400/440/6300/6600/11000/13800
Rated Power: 50-2000kw
Biomass Moisture (%): Less Than 16% (Wet Basis)
Biomass Size: 10-75mm
Heat Value Of Gas: Higher Than 1100-1300 Kcal/Nm3
Power: 50-2000kw
Wuxi Teneng Power Machinery Co., Ltd. is located in Wuxi City Jiangsu Province, which is a city on the Yangtze River between Suzhou and Nanjing, and is located in the south of Jiangsu Province, half way between the cities of Shanghai and Nanjing, with Shanghai 128km to its east and Nanjing 183km to its west.



Our company was founded in 1986, which has a strong technical design, developing capabilities and professional processing capacity. It is a group company which manufactures biomass gasification equipment, coal gasification equipment and gas generator set.



The business covers: Product design, R & D, manufacture, sales, project contracting, installation and debugging, project delivery, staff training, maintenance and technical advice. The company' S main products include: Biomass Gasifier, Biomass Gasification Boiler, Biomass gasification power generation systems, Coal Gasifier, Coal gasification power generation systems, gas purification equipment and all kinds of gas generator sets.



After years of research and development, our company has developed a series of high efficiency biomass gasifier systems, coal gasifier systems and gas purification equipment with independent intellectual property rights, such as downdraft fixed bed gasifier, updraft fixed bed gasifier, double fire type fixed bed gasifier, circulating fluidized bed gasifier, dry gas cleaning system, electrostatic precipitator for biomass gasifier and etc. We also successfully developed a series of the biomass and coal gas generator sets such as 50kw, 100kw, 120kw, 150kw, 200kw, 250kw, 300kw, 350kw, 400kw, 500kw, 800kw, 1000kw and etc which are supporting the gasification system. Our company' S products are widely used in Shandong, Henan, Zhejiang, Jiangsu, Anhui, Jiangxi province and are also exported to Philippines, Cambodia, Myanmar, Thailand, Vietnam, Indonesia, India, Italy, Greece, Lithuania and Africa, Europe, South America and other countries and regions.



Our company has passed ISO9001 quality management system certificate and ISO14001 environmental management systems which are awarded by Royal U. K. UKAS Certification Authority, and our product has passed the EU export licensing CE certificate and etc.



In the building of "first, common development" spirit of enterprise, and "steady and sure, reputation to be first" corporate style of workhigh quality products", Wuxi Teneng Power machinery Co., Ltd. Would also put "high-quality service" as an important factor in the development of the enterprise. It persists in the "customer.



We put "The pursuit of perfect quality, Meeting customers' Demand "as the quality policy, and provide more products of high quality and superior services to the masses of users at home and abroad.



We will sincerely welcome domestic and foreign customers to visit and win-win cooperation to create a happy tomorrow!
