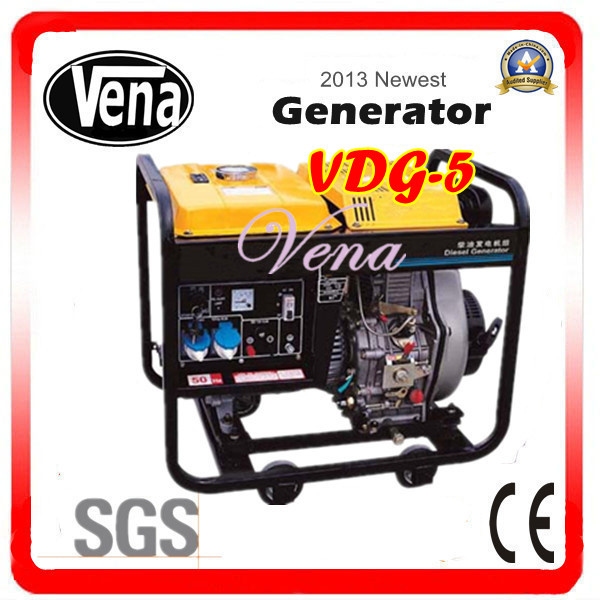

5 kw portable diesel generator VDG-5
***Specification of the diesel generator
Rated frequency: 50Hz
Rated Voltage: 220V
Rated power: 4.8kW
Max power: 6.0KW
Rated Rotation speed: 3000 rpm
Max Rotation speed: 3600 rpm
Power factor: Cosφ =1
Phase: Single phase
Engine type: Single cylinder, air-cooled
Displacement: 406ml
Bore x Stoke: 86x72mm
Compression ratio: 19: 1
Starting method: Electric start system
Fuel consumption rate: 273g/kW. H
Packing size: 745x505x655mm
Net weight: 95kg
Gross Weight: 98kg
***diesel generator Model Advantage:
1. Easy to Move
2. New Appearance
3. Easier Operation
4. Boxes Type, Low Noise
5. Utomatic Transfer Switch
6. Electrical Speed Control
7. Green Power, Less Pollution
The unit can quickly and automatically start and operate when the mains failure; And it also can automatically switch back to the mains and stop and wating.
***Features and benefits of diesel generator
A) Powered by 4-Stroke OHV gasoline Engine.
B) Large muffler for quiet operation.
C) Standard configuration of voltmeter.
D) Neat and economical for classical design.
E) Circuit breaker protects overload operation.
F) Emergency low oil alert warn the low lube oil level.
G) AVR alternator provides stable voltage and current.
*** Advantage of the diesel generator
1. It reduce the fuel consumption, stronger the durability and longer the life largely, if fitted with large capacity of fuel tank, can run for 12hours.
2. Machine oil shortage alarming system, providing auto self-protection, running steadily and reliable, shocking light.
3. Gasoline generator sets adopt different diesel engines and brushless generators.
4. DC output will be offered as request, 60Hz and other types of generator aggregates available as specified by customers
5. Compact size for economic storage
6. More effective engine power transmission
7. More beneficial to environment with less emission
8. The types of generator sets are quick-starting, stable-running, little vibration, low noise, light weight, small volume, compact structure, suitable for areas on mining, factory, working on field, engaging in construction and army as movable power or electric power in ship, also suitable for areas on animal husbandry, fishery, forest, orchard, guesthouse and business as standby power.
***FAQs of the diesel generator
1. Q: What is the material of your products?
A: Iron, Steel, plastic, etc.
2. Q: How about quality control in your factory?
A: "Quality is first, Customers are friends".
We are always paying great attentions to quality controlling from the beginning to the end. Every piece of goods is tested strictly one by one before packing.
We keep goods to meet the standard of CE, CCC, ISO9001: 2000.
3. Q: How about guarantee?
A: It's within three years after goods is discharged in the destination.
During that period, if some breakdown easily spare parts need to change, my factory offers free.
For example, fuel cock, spark plug, starting hand, etc.
|
Model |
VG-8 |
VG-6 |
VDG-3 |
VDG-6 |
VDG-5 |
|
AC Frequency(Hz) |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
|
AC Output volatge(V) |
110;120;110/220;120/240,220;230;115/230 (OPTIONAL) |
|
Cont.AC Output(KVA) |
8.0 |
6.0 |
2.8 |
6.0 |
4.8 |
|
Max.AC Output(KVA) |
8.5 |
6.5 |
3.0 |
6.5 |
6.0 |
|
DC Output(V/A) |
12/8.3 |
12/8.3 |
12/8.3 |
12/8.3 |
12/8.3 |
|
Type |
Single cylinder,air-cooled ,4-stroke OHV Gasoline/ diesel engine |
|
Starting System |
electric |
Hand/operated |
Recoil /electric |
Recoil /electric |
Recoil /electric |
|
Fuel |
Unleaded gasoline |
Air-cooled diesel |
|
Packing Dimensions(mm) |
755*695*600 |
700*530*575 |
665*505*5655 |
720*495*650 |
745*505*655 |
|
Net Weight(kg) |
95 |
86 |
64 |
110 |
95 |
|
Gross Weight(kg) |
100 |
89 |
66 |
115 |
98 |
