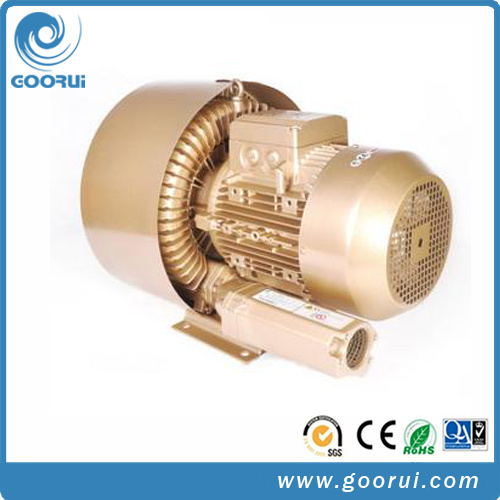

5.5kw Double Stage High Pressure Air Ring Blower
Goorui Side Channel Blower Material:
Goorui Side Channel Blower adopts ADC12 aluminium alloy materials(Benz wheel Material ) and high precision high temperature Sweden SKF bearings.
Goorui Side Channel Blower's advantages: - Energy-saving operation through higher efficiency
- Variable output control
- Pulsation-free compression
- Virtually maintenance-free
- The rotating parts are not in contact with the casing. No friction during operation, No internal lubrication needed
- ADC12 aluminum alloy, Processed on precision CNC machine
- Designed and improved by latest technology and molded with high strength material
- Sealing ring is placed between housing & motor to prevent entry of foreign matter. This improves service life
- Two- pole motor with TEFC IP54 and insulation F, high temperature resistance upto180o
- In front bearing structure ensures dynamic stability
- All products are strictly tested before leaving the factory
- Wide range of power configuration and sizes
- Long term durability
- Simple operation

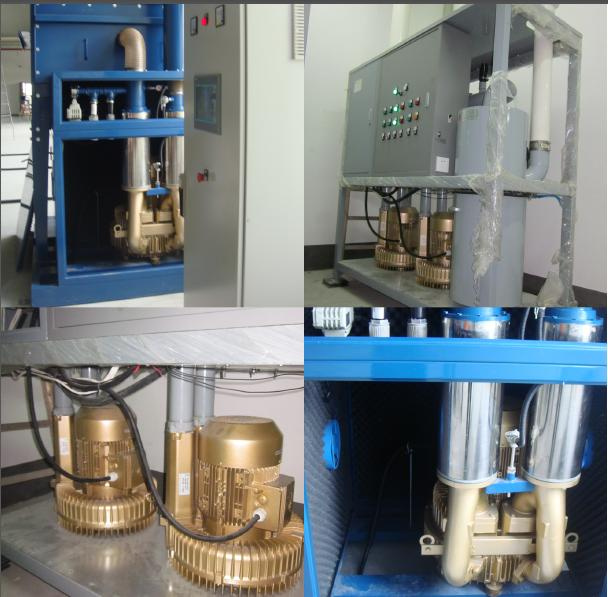

Goorui Side Channel Blower Applications:- Agriculture(Fish pond and aeration tanks)
- Beverage(bottle drying)
- Bio fuels
- Food and vegetable processing
- Medical and Health service(Dental cart and dental vacuum)
- Package (Air knives blown-off / Labeling/Drying)
- Plastics/Rubber(Air knives blown-off/ Bottle blow moulding/ Extruder Degassing/Pneumatic conveying/ Thermoforming)
- Printing
- Paper and pulp/ paper converting
- Textile industry
- Transportation/Loading/Unloading(Pneumatic conveying/material handling)
- Water treatment/sewage treatment
- Woodworking(CNC Routing/bulk handling)
Why Choose Goorui Side Channel Blower:
10 Years experience in vacuum field and solutions.
We have 36 core technology patents.
All our products adopt SKF & NSK bearing.
Our product can heat-resistant up to 130`C.
Power: 150W to 25KW.
Airflow up to 2400m3/H.
Pressure up to 1000mbar.
Vacuum up to -730mbar
CE, SGS, RoHS, ISO9001:2008certified
Qualifications and awards:

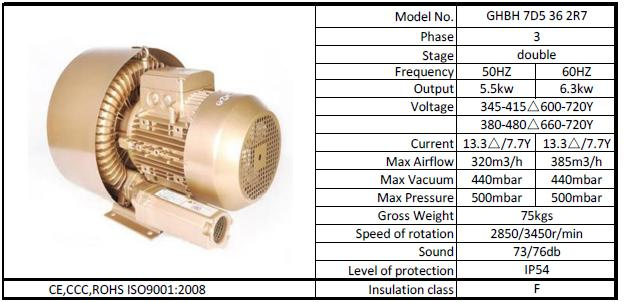

| Model | Frequency | Power | Voltage | Current | Max. Air Flow | Max. Static Pressure | Max. Static Pressure | Noise | Dimensions (L*W*H) | Weight |
| In stock | Hz | KW | V | A | m3/h | mbar | mbar | dB(A) | mm | Kg |
| GHBH 7D5 36 2R7 | 50 | 5.5 | 345-415 | 13.3 | 320 | -440 | 500 | 73 | 570*426*424 | 70 |
| 60 | 6.3 | 345-415 | 13.3 | 385 | -440 | 500 | 76 |
Dongguan Foersheng Mechanical &Electrical Technology Company Limited (FLS) is one of the world's leading side channel blower manufacturer with over 10 years experience in blower and motors R&D, producing, marketing and after sales service.
FLS has own a manufactory center in Dongguan City and sales subsidiaries in 4 cities, Dongguan, Shanghai, Chengdu and Qingdao. Its sales network covers over 20 countries worldwide, including Asia, Europe, Africa and American, etc.
Our service includes
1. Supply & manufacture of side channel blower (ring blower/regenerative blower), air flow capabilities range from 60 to 2550 m3/h, vacuum capabilities 60 to 1000mbar. Supply & manufacture of explosion proof blowers and bare shaft (belt drive style ) blower.
2. On site performance testing of side channel blowers.
3. Also supply accessories (silencer, pressure relief valve, filter, filter barrels), frequency inventor, liquid ring vacuum pump. etc.
Our Blower features are:
1.100% oil free air delivery
2. No routine maintenance
3. Quiet operation, low noise
4. Versatile /ATEX /IE motor options
5. CE, UL, CCC, RoHS, ISO9001
6. Insulation class: F, Protection class: IP54
Industries application:
1. Agriculture(Fish pond and aeration tanks)
2. Food and vegetable processing
3. Dental cart and dental vacuum
4. Air knives blown-off / Labeling/Drying
5. Air knives blown-off/ Bottle blow mould / Extruder Degassing/Pneumatic conveying/ Thermoforming)
6. Printing/CNC table material holding
7. Paper and pulp/ paper converting
8. Textile industry
9. Pneumatic conveying/ Biogas conveying /material handling
10. Water treatment/Sewage treatment
11. Woodworking(CNC Routing/bulk handling)
