1. High efficient
2. CE ROHS certification
3. Low wind speed starting
|

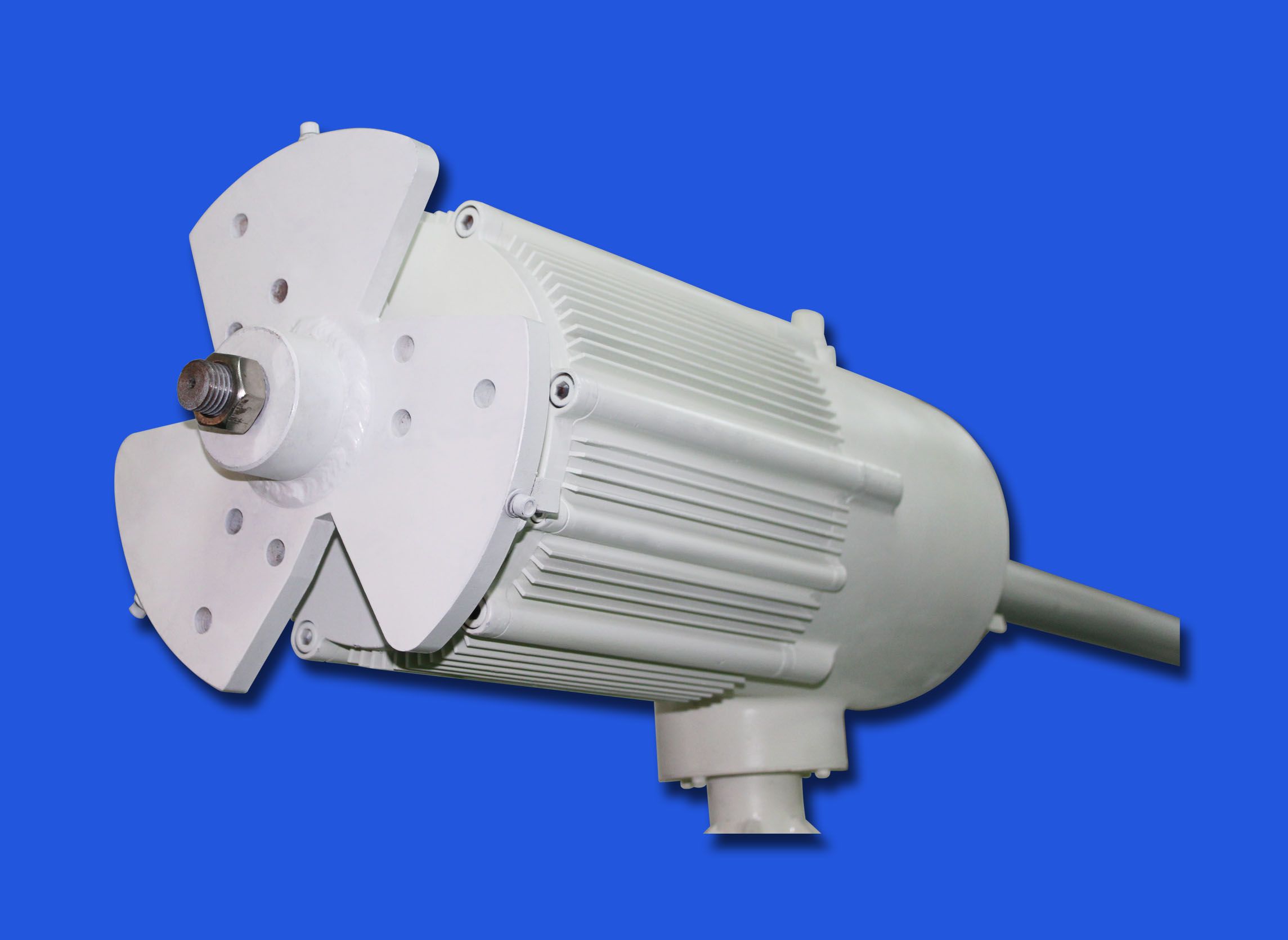

Model |
P-5000 |
P-10000 |
|
Name |
Wind King |
Wind King |
|
Rated power |
5000W |
10000W |
|
Rated DC voltage |
DC 96V |
DC 192V |
|
Rated current |
52A |
52A |
|
Rated speed |
225r/m |
160r/m |
|
Max power |
5700W |
11500W |
|
Number of blade |
3 pcs |
3 pcs |
|
Starting wind speed |
3m/s |
3m/s |
|
Cut-in wind speed |
3.5m/s |
3.5m/s |
|
Cut-out wind speed |
20m/s |
20m/s |
|
Security wind speed |
45m/s |
45m/s |
|
Rated wind speed |
12m/s |
12m/s |
|
Engine |
Three-phase permanent magnel generator |
Three-phase permanent magnel generator |
|
Rotor diameter |
5150mm |
7210mm |
|
Blade material |
FRP (fiber glass reinforced plastics) |
FRP (fiber glass reinforced plastics) |
|
Output line anti-winding device |
Over all three-phase commutator |
Over all three-phase commutator |
|
Over-speed wind protection |
Centrifugal variable plasma control + Manual magnetic braking + Unloading pool brake |
Centrifugal variable plasma control + Manual magnetic braking + Unloading pool brake |
|
Life span |
15 years |
15 years |
|
Equipment surface protection |
Galvanization plastic coating |
Galvanization plastic coating |
|
Working temperature |
-40°C-70°C |
-40°C-70°C |
|
N.W. |
115kg |
210kg |
|
Packing material |
Wooden case and foam material |
Wooden case and foam material |
|
packing dimension |
|
|
|
G.W. |
150kg |
260kg |
Shanghai U-light Industrial Co., Ltd., is devoted to the development, production and trade of solar products. We own our professional R&D team and production base. With the quick development of the company, we have exported products to different countries in Asia, Europe, Middle-east, South Africa, and also have sound share in the local market.
Our main solar products include solar panel, solar street light, solar camping lantern, solar road studs, solar lawn light, other solar light, solar water heater, solar water pump, etc.
Inheriting the spirit of everlasting innovating, growing and struggling, people of U-light will continue to play a roll in the development of the solar energy application field while going ahead and working hard right along.
With the high quality products and perfect customer service, we believe we will be your best business partners.
