| Price: | US $ 5000unit |
|---|---|
| Trade Terms: | others |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Model | LIGHT SOURCE | ULT8E | ULT10E | ||
| TIER 2 ENGINE | |||||
| Make | Laidong | Laidong | Laidong | ||
| Model | KM385BD | KM385BD | 480D | ||
| Number of Cylinder | 3 | 3 | 3 | ||
| Displacement-(L) | 1.5 | 1.5 | 1.8 | ||
| Cooling | Water | Water | Water | ||
| Rated Speed-rpm | 1500 | 1500 | 1500 | ||
| Power-KW | 8 | 8 | 10 | ||
| Electrical | 12V | 12V | 12V | ||
| Fuel | Diesel | Diesel | Diesel | ||
| Fuel capacity - (L) | 27 | 27 | 27 | ||
| Runtime w/4 Lights-hr | 62 | 62 | 62 | ||
| GENERATOR | |||||
| Make | Stamford | Stamford | Stamford | ||
| Output-kw | 6 | 6 | 8 | ||
| Frequency-Hz | 50 | 50 | 50 | ||
| Suitable For Lights | 4 Lights Max | 4 Lights Max | 6 Lights Max | ||
| Available Receptacles | (1)230V, 20A GFCI Duplex; (1)400V, 30A | (1)230V, 15A GFCI Duplex; (1)400V, 30A | (1)230V, 15A GFCI Duplex; (1)400V, 30A | ||
| DIMENSION | |||||
| Overall Length including Drawbar- (mm) | 4370 | 4625 | 4625 | ||
| Overall Width-(mm) | 1575 | 2010 | 2010 | ||
| Overall Height Travel Position-(mm) | 1790 | 2260 | 2260 | ||
| Track Width-(mm) | 1245 | 1625 | 1625 | ||
| Tower Height-(mm) | 9 | 9 | 9 | ||
| Tire Size | ST175/80D13 | ST175/80D13 | ST175/80D13 | ||
| Shipping weight-(kg) | 830 | 960 | 960 | ||
| Working weight-(kg) | 900 | 1030 | 1030 | ||
| Max Axle Capacity-(kg) | 1360 | 1590 | 1590 | ||
| LIGHT TOWER HIGHLIGHTS | |||||
| FLOODLIGHTS | |||||
| - Four 1, 000watt metel halide lamps designe for large area coverage | |||||
| - Aluminum reflector housings and tempered impact-resistant glass lenses | |||||
| - Weather-resistant, twist-lock connections for attaching floodlights | |||||
| ENGINE | |||||
| - Dependable Laidong power | |||||
| - Automatic protective shutdowns for high engine coolant temperature and low engine oil pressure | |||||
| TOWER | |||||
| - Telescoping mast, with 360-degree rotation and position lock | |||||
| - Extends 12’ to 30’ with dual, hand-operated winches and patented automatic safety brake | |||||
| - Mast retracts and stows horizontally for travel | |||||
| - Patented tower locking system to prevent telescoping during travel | |||||
| - Able to stand up to 65-mph wind speed with outriggers extended and jacks down | |||||
| - Combination hitch with 3" pintle eye and 2" ball hitch (lightsource) | |||||
| OPTIONAL EQUIPMENT | |||||
| ALUMINUM GLARE SHIELD DIRECTS LIGHT DOWNWARD | |||||
| ELECTRIC WINCHES WITH AUTOMATIC SAFETY STOP | |||||
| ULT8E9 AND ULT10E OPTIONS | |||||
| - Fuel gauge with low fuel shutdown | |||||
| - Fuel/water separator | |||||
| - Electric or hydraulic brakes | |||||
| - Super quiet package for even lower decibel output | |||||
| ULT8E AND ULT10E OPTIONS | |||||
| - High pressure sodium 1, 000 watt lamps | |||||
| interchangeable with metal halide bulbs | |||||
| Ideal for foggy, dusty enviroments | |||||
| - Tungsten halogen 1, 000 watt lamps (ULT8E Only) and 1, 500 watt lamp(ULT10E Only) | |||||
| - Internal lamp storage | |||||
| - Achieve a larger illuminated area with two additional lamps (ULT10E Only) | |||||
| LIGHTSOURCE | |||||
| - Low fuel shutdown with indicator light | |||||
| - 50Hz model available | |||||
| WARRANTY INFORMATION | |||||
| LIGHT TOWER PACKAGE WARRANTY | |||||
| - 1 year/2, 000-hour warranty | |||||
| GENERATOR WARRANTY | |||||
| - 2 year/4, 000-hour Warranty for lightsource | |||||
| - 1 year/2, 000-hour warranty from for ULT8E AND ULT10E | |||||
| ENGINE WARRANTY | |||||
| - 2 year/2, 000-hour full Warranty | |||||
| - 3 year/3, 000-hour major Components, parts only Mobile diesel generator Light Tower | |||||
| Prod Model: | UD8LT |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Genset Power: | 8/10kw |
| Voltage: | 127/220/230/240V |
| Place Of Origin: | Zhejiang, China |
| Lamp: | 4X1000W or 6X500W |
| Model Number: | Ud8lt |
| Frequency: | 50-60Hz |
| Warranty: | 2 Years |
| Phase: | Single Phase |

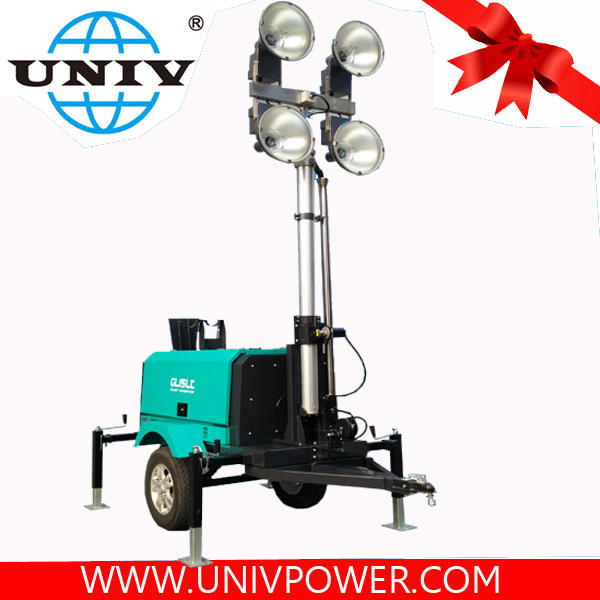

| Product Name: | Mobile Lighting Tower |
| Bulb Type: | Halogen |
| IP Rating: | IP66 |
| Material: | Metal Halide Light |
| Battery Type: | Gel Battery |
| Usage: | Construction and Mining |
| Certification: | EPA, ISO9001, CE, Soncap |
