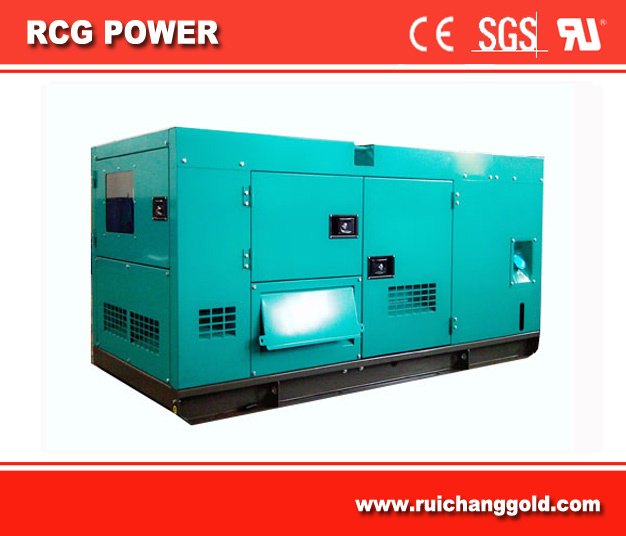

Specification for Denyo type 20kVA Yanmar diesel generator sets:
1.50Hz 1500rpm Rated power: 20kVA /16KW
Note: 60Hz 1800rpm is also available
2. YANMAR engine imported from Japan & stamford Diesel generator
3. Brand: Ruichang Gold
4. Engine: YANMAR engine 4TNV84T-GGE imported from Japan
5. Alternator: Stamford PI 144D Made by Newage
6. Ruichang Gold Free Standing Control Cubicle
7. Standard Configuration:
1) Engine and Alternator SAE Coupling
2) Heavy Duty Base Plate with 8 hours fuel Tank
3) Ruichang Gold Control Box with ComAp NT MRS 16 Control Module
4) China Named Brand Lead Acid Battery, Optional Maintenance Battery
5) Optional Block Heater for Cold Area
6) Set Mounted 50 degree Copper Radiator
7) Delixi High Quality Air breaker
8) OPTIONAL Soundproof Canopy
9) Accessories: Flexible Exhausted Pipe, Industrial Silencer, Manual, Drawings
Packing: Ruichang Gold Wooden Packing
Delivery: 10 Days (Engine Stock )
10) Payment: 30%T/T and 70%L/C in Sight
11) More specificication pls contact ruichang gold international sales department
|
MODEL |
R-YM20 |
|
PRIME POWER (KVA/KW) |
20/16 |
|
STANDBY POWER(KVA/KW) |
22/18 |
|
Rated voltage(V) |
400/230 |
|
Rated speed(rpm) |
1500 |
|
Rated frequency(Hz) |
50 |
|
Power factor |
0.8 |
|
Ambient temperature |
40 degree |
|
Altitude(m) |
1000 |
|
Connection type |
3 phase 4 wires |
|
ENGINE MANUFACTURER |
JAPAN YANMAR |
|
Model |
4TNV84T-GGE |
|
Rated Power(kW) |
21.0 |
|
No. of cylinders & configuration |
In-Line 4 cylinders |
|
Method of operation |
4-stroke |
|
Speed regulation |
Electric governor |
|
Starting system |
DC 12V Electronic start |
|
Cooling method |
Closed-circuit cooling system |
|
Total displacement(L) |
1.995 |
|
Compression ratio |
18.9:1 |
|
Bore×Stroke(mm) |
84*90 |
|
100% Load fuel consumption(L/h) |
≤6 |
|
ALTERNATOR MANUFACTURER |
STAMFORD |
|
Number of Phase |
3 |
|
Connection Type |
3Phase and 4Wires |
|
Number of Bearing |
1 |
|
Power Factor |
0.8 |
|
Protection Grade |
IP23 |
|
Terminal |
12 |
|
Winding/ Pitch |
100% Copper 2/3 Pitch |
|
Cooling Fan |
Cast alloy aluminum |
|
Exciter Type |
Brushless, Self-Exciting |
|
Insulation Class, Temperature Rise |
H/H |
|
Telephone Influence Factor( TIF) |
TIF <50 / THF<2% |
|
Total Harmonic TGH/THC |
<1.5% at no load / <5% at load |
|
Voltage Regulation, Steady State |
≤±1% |
|
Sustained Short-Circuit Current |
300%(3 in):10s |
|
CONTROL SYSTEM |
UK DEEP SEA SERIES |
Ruichang Gold Generating Equipment (Wuxi) Manufacturing Co., Ltd., established in 1982, is a manufacturer of a wide variety of diesel generator sets and portable power supplies. We are able to offer high quality diesel generator sets with imported engines, trailer-mounted power stations, mobile and container power stations, and even bunker power generator sets.
Our products are suitable for such industries as defense, telecommunications, transportation and natural resources. Additionally, buildings including hospitals, banks, and offices may use our power stations as either a mobile or stationary backup power supply. We accept special orders from clients and are able to meet all kinds of special technical requirements.
As a Sino-foreign joint-venture (Ruichang Gold Co., Ltd. Hong Kong and Wuxi Ruichang Electro Equipment Plant), we aim for the highest quality standards. We are ISO9001 certified and our products are manufactured according to strict internal quality control standards.
Our company principle is "Customers and credibility first" and always provide superior services and free consultation. Whether your inquiries are regarding product selection, systems integration, generator room designs or other technical details we will be happy to assist you with your needs.
We welcome both new and existing customers to come take a look at our current lineup and hope that you will choose our brand of competitively priced quality products. Please contact us for further details and we will promptly answer any questions you may have.
