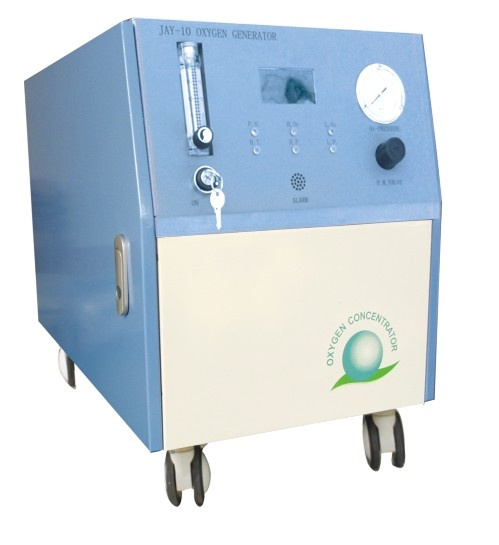

HIGH PRESSURE OXYGEN GENERATOR SERIES
1.4BAR/20PSIAND 4BAR/60PSI SERIES
FEATURES
1. PSA(Pressure Swing Adsorption) Technology
2. Adjustable flow rate from 0LPM to 20LPM
3. Low purity alarm function
4.4 bar machine available for 5-7 patient at the same time, 1.4 bar Machine applied in connecting long tube of fifty meters or supply oxygen For 1-3 person
5. Full digital control system
6. Audio and visual alarm for high&low pressure
Model JAY-10 JAY-15 JAY-20
Oxygen flow 0-10L/min 0-15L/min 0-20L/min
Air flow 10L/min 15L/min 20L/min
Air outlet pressure ≥ 1.4BAR/20PSI / 4BAR/60PSI
Oxygen Concentration 93%± 3%
Sound Level ≤ 55 dB ≤ 60 dB ≤ 60 dB
Power AC230V, 50Hz(AC220V/110V± 10, 50/60%± 1Hz are available)
Power Consumption ≤ 600W/850W ≤ 850W/1500W ≤ 850W/1800W
LCD display Switch times, Operating pressure, Present Working time,
Accumulating Time, Presetting Time from 10mins to 40hours
Alarm Power failure alarm, High&Low pressure alarm
Longfian Scitech Co., Ltd, located in Longxing Building A(413), 77 Longxing Road, 071051 Baoding China, The company has first-class professional management personnel and research&development technical team, with their own product development capabilities, mainly engaged in medical molecular sieve oxygen concentrator as well as assorting the development of electronic products, now has a variety of standard models and a variety of uses oxygen concentrator, has successfully developed JAY-1, JAY-2, JAY-3, JAY-5, JAY-6, JAY-8, JAY-10 type normal pressure medical oxygen concentrator, JAY-10-4.0, JAY-15-4.0, JAY-20-3.5 with 0.14 ~ 4KG pressure of high-pressure oxygen concentrator, industrial oxygen concentrator and ozone generator etc.; The product has got EU's CE certificate, ISO certificate and FDA certificate, and exported to the United States, France, Spain, Germany, Russia, India, Singapore, Turkey, Thailand etc. More than 60 countries and regions, enjoy a high reputation in Foreign markets
In recent years, the company has joined OEM companies and developed some related medical products for the demands of market, especially for pulse oximeter, SpO2&Blood pressure monitor, SpO2&ECG monitor, syringe pump, infusion pump, etc.
Our goal is "PROFESSIONAL IN QUALITY, FOCUS ON RESPIRATORY PRODUCTS ", to meet the demands of various specialists of medical field and continue to bring you not just the innovative equipment but also the most reliable, long-lasting & quality products.
