4kw to 18kw china factory brand 220v stream generator
1. Our china factory brand steam generator dvantages
A: Automatic water discharge;
B: Overheat securitivty device;
C: 2 heating tube. Firstly 2 heating tube work together, when the tempereture over arrice 50 temperature,
1 tube stop working. That can greatly protect the geberator damage because of high temperature)2. Quick details of steam generator
A: Fanland brand details:
Model | Output Power KW | Power supply 50/60Hz | Current(A) | Power wire(copper)
N*mm2 | Drain | Dimensions cm | Packing size cm | Gross weright kg |
FAN-30 | 3.0 | 220-240V~ | 13.6 | 3*2.5 | self | 57*23*47 | 58*24*48 | 12~16.5 |
FAN-40 | 4.0 | 220-240V~ | 18.2 | 3*2.5 |
FAN-45 | 4.5 | 220-240V~ | 20.5 | 3*2.5 |
380-415V3N~ | 6.8 | 5*1.5 |
FAN-50 | 5.0 | 220-240V~ | 22.7 | 3*2.5 |
FAN-60 | 6.0 | 220-240V~ | 27.3 | 3*4.0 |
380-415V3N~ | 9.1 | 5*1.5 |
FAN-75 | 7.5 | 220-240V~ | 34.1 | 3*6.0 |
380-415V3N~ | 11.4 | 5*2.5 |
FAN-90 | 9.0 | 220-240V~ | 40.9 | 3*10.0 |
380-415V3N~ | 13.6 | 5*2.5 |
FAN-105 | 10.5 | 380-415V3N~ | 15.9 | 5*2.5 | Auto | 57*23*47 | 58*24*48 | 17~18.5 |
FAN-120 | 12.0 | 380-415V3N~ | 18.2 | 5*2.5 |
FAN-150 | 15.0 | 380-415V3N~ | 22.7 | 5*2.5 |

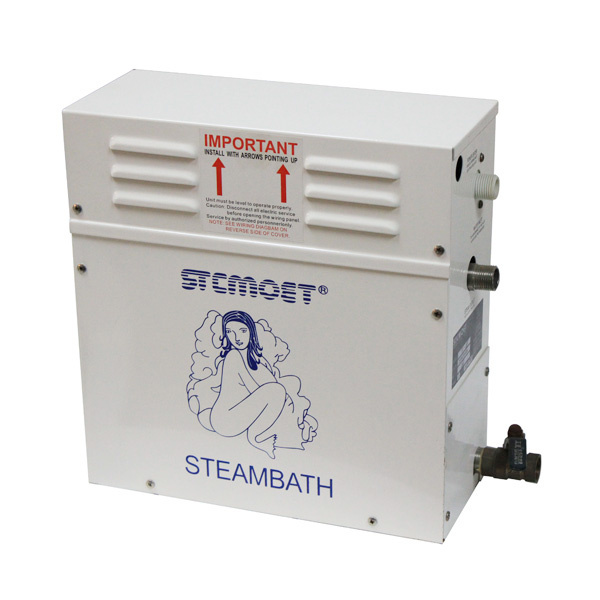

B: Stcmket steam generator details
Model | Power(kw) | Voltage | Size(mm) | Applicable space (m3 ) |
| ST-130 | 3.0 | 220 | 200*230*420 | 3 |
| ST-145 | 4.5 | 220/380 | 200*230*420 | 4.5 |
| ST-160 | 6.0/8 | 220/380 | 200*500*500 | 6-8 |
| ST-190 | 8/9 | 220/380 | 230*550*500 | 8-10 |
| ST-212 | 10.5/18 | 380 | 260*450*620 | 10-20
|

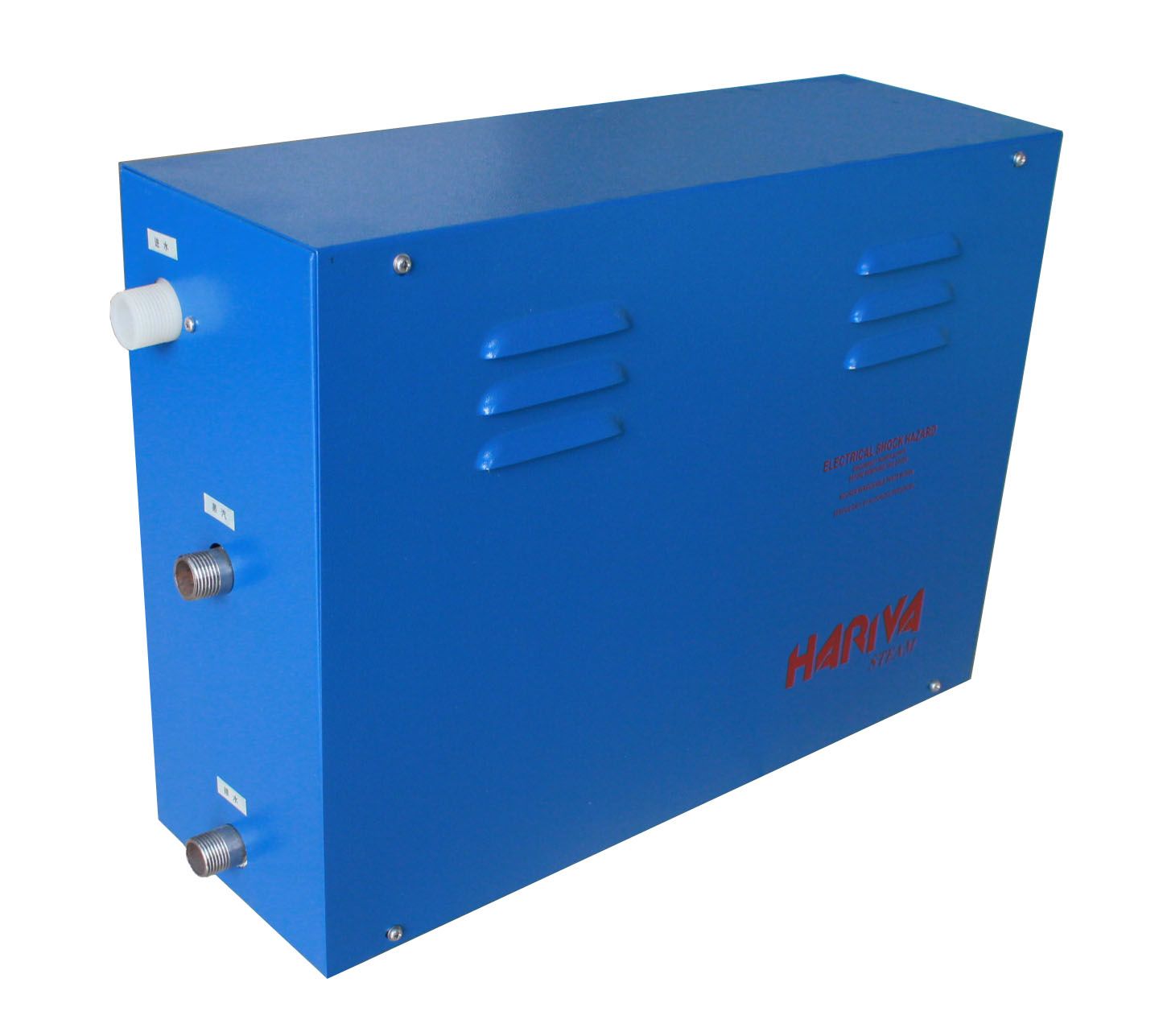

C: Hariya brand generatorParameters:Model | Power(kw) | Voltage | Size(mm) | Applicable space (m3 ) |
| HA-40 | 4.0 | 220/380 | 210*650*430 | 5 |
| HA-60 | 6.0 | 220/380 | 210*650*430 | 6 |
| HA-80 | 8.0 | 220/380 | 210*650*430 | 8 |
| HA-90 | 9.0 | 220/380 | 210*650*430 | 9 |
| HA-120 | 12 | 380 | 260*650*600 | 12 |
| HA-150 | 15 | 380 | 260*650*600 | 15 |
| HA-180 | 18 | 380 | 260*650*600 | 18
|
3. Steam generator charactors1) Functions:
The control works with the steam generator to maintain a perfect level of steam and temperature in the room, while using the least amount of energy, reaching a result of soft and comfortable environment.
2) Material: Super galum board, stailess steel tank, copper inlet and outlet, copper handle with zinc
3) 4.5 - 12kW power options, in-shower thermostatic control, stainless steel tank, long-life elements, automatic water feed, dual low-water protection, pressure release valve. Temperature control unit available.
4) Controllers:
With the same tank, elements and steam outlet as the N-series, this generator is reliable and efficient. To operate, switch on using the in-shower pneumatic button, then, when you are hot enough, simply switch it off again, after 25 minutes, a safety timer will automatically switch the generator off. Available in four power options.

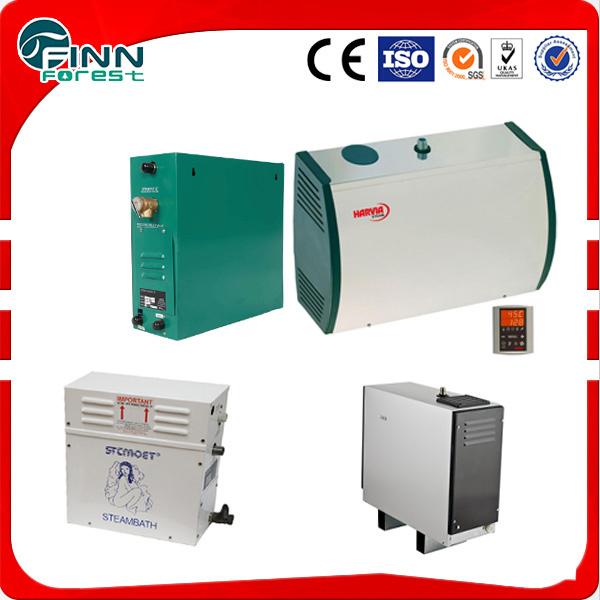

4. China factory brand steam generator effective picture show
