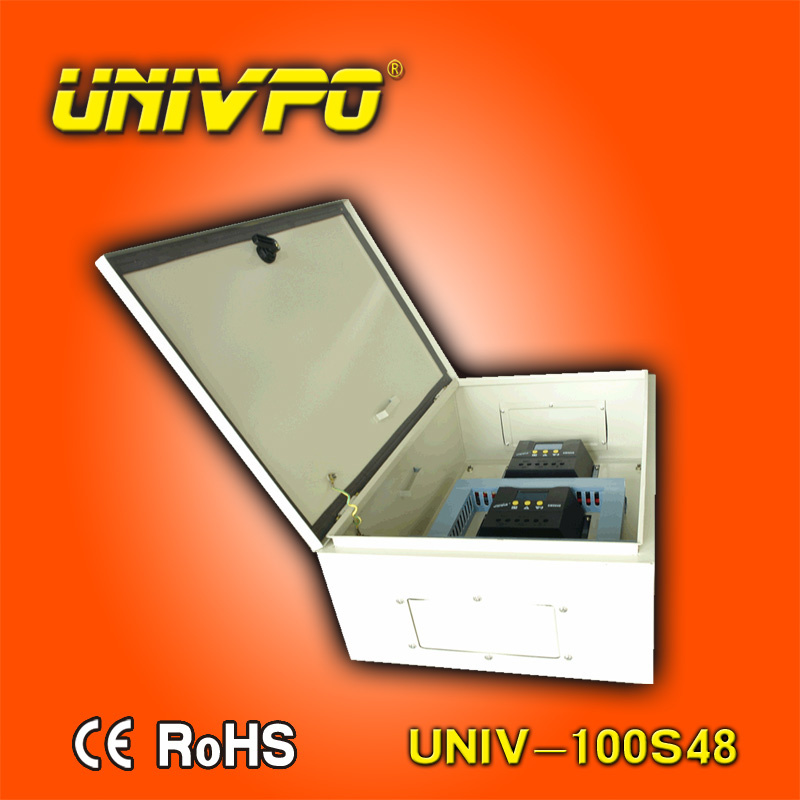

48V 100A Solar Charge Controller Inverter Price 48V (UNIV-100S48)

48V 100A Solar Charge Controller Inverter Price 48V (UNIV-100S48)
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 200/Piece
Pay Type: L/C,T/T
48V 100A Solar Charge Controller Inverter Price 48V (UNIV-100S48)

UNIV -S, solar charge controller is controlled by CPU, According to the voltage of battery; Controller will adjust the charge current and decide if to supply the loads electricity. The following is the detailed performance:
Generally keep the battery on full voltage condition.

Prevent the battery from over-charging.
Prevent the battery from over-discharging.
Prevent supplying electricity from the battery to solar panels during nights.
Reverse Polarity Protection for Battery
Reverse Polarity Protection for Solar panels
When the current of load exceeds the rated one of controller, the controller will turn into the self-protection state and is automatically locked up, the screen shows "Overload".

Short Circuit happens; The Controller will turn into the self-protection state and is locked up, the screen show "Short circuit".
Low voltage happens to battery, the controller will automatically separate loads from system. When the voltage of battery goes up, the loads will automatically restart to work.

Protection from the lightning strike
When Controller is normally working, the LCD Screen will show New Charging Current (a dash"-"before the numeral), Discharging Current and Voltage of battery every 5 seconds.
Controller is always counting Charging Current Hours and Discharging Current Hours of the Battery
When controller start up, according to the voltage level of battery, Controller will self-setup the Charging-off voltage, the Load-off voltage, the Load-on voltage. These datum is tacitly approved under the standard environment temperature 25 degree.

According to varies system temperature, the controller will automatically compensate the temperature of the charging voltage.
Users could setup the Charge-on or off voltage, the load-off voltage, the Load-on voltage, etc, according to their requirements.
To prevent battery from over discharging, Controller will automatically control the lowest Load-off voltage of the load, which is no less than 10V (as per 12V battery) or 20V (as per 24V battery). If voltage of the battery is less than 10V (or 20V), the button "-" will stop working.
To recover its defaults, please keep pressing down the button "Menu" for over 5 seconds.

Technical data
Model: UNIV-100S
Rated Voltage 48VAutomatic distinguish Voltage
Loading current Max: 100A
Full charge cut: 56V Recognize tacitly rest
Low voltage cut: 41.2V Recognize tacitly rest
Temperature compensation -3mv/cell. Degree Recognize tacitly rest
No load loss:; 60mA
Wire area: Min 107mm
Voltage drop: < 270mv
Prod Model: UNIV-100S48
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Suzhou Universal-Power is a high-tech enterprise, which was established on May 2003, a professional and vigorous new energy company focusing on inverters, solar charge controllers and solar power systems. Until now, Universal-Power has produced more than 300000 sets of inverters and our products have reached over 100 countries worldwide, famous as a world leading professional manufacturer of cost-effective inverters with high quality and efficiency.

Universal-Power offers a full line of on grid and off grid inverters. Products from Universal-Power are with completely independent intellectual property rights and inverter core technology, the products including 60 Watts to 10K Watts off grid single phase high frequency inverter; 10K Watts to 17K Watts off grid three phase high frequency inverter; 1K Watt to 5K Watts grid tie single phase solar inverter; 10K Watts to 17K Watts grid tie three phase high frequency solar inverter. At the same time, Universal-Power's solar charge controller and off grid solar PV systems are designed for Solar system, Wind power system, and all inverters are widely used for automotive equipment, outdoor working, telecom and mechanical field etc.

Universal-Power strictly carries out ISO9001 standard and audit successfully, so we got certificates issued by international authorities such as UL, ETL, CE, RoHS etc. Relying on-class products quality and improved after-sale service, our company has won the popularity of consumers. Universal-Power has a R&D team with more than 30 engineers, 40% of the staff, who has been deeply engaged in the photovoltaic industry for 10 years.

Universal-Power owns 13 the national patents; especially, the Intelligent High Frequency Three Phase Inverter and Isolated Grid tie inverters have gained certificate of Hi-Tech product. Universal-Power has been set to Engineering Research Centre of isolated grid tie inverter by the Government of Suzhou. Our R&D takes the mission to increase the inverter availability and efficiency, putting continuous innovation to make Universal-Power inverter easier for installation and operation, and more cost-effective for the greener world.

Building an elite service team is Universal-Power 's another responsibility. In Universal-Power, service is not only the basic principle, but also blends into the hearts of the staff, and reflects in the daily work of everyone.

At Universal-Power, we see the power in clean energy. Our ENERGETIC goal is to bring simple, accessible solar solutions to the marketplace, improving the efficiency and reliability of solar power systems through our innovative products. Universal-Power brings you more powerful solutions for a greener world.
