We also offer various kind of other small hydro turbine generator
Axial flow tubine generator
Francis Turbine Generator
Pelton Turbine Generator

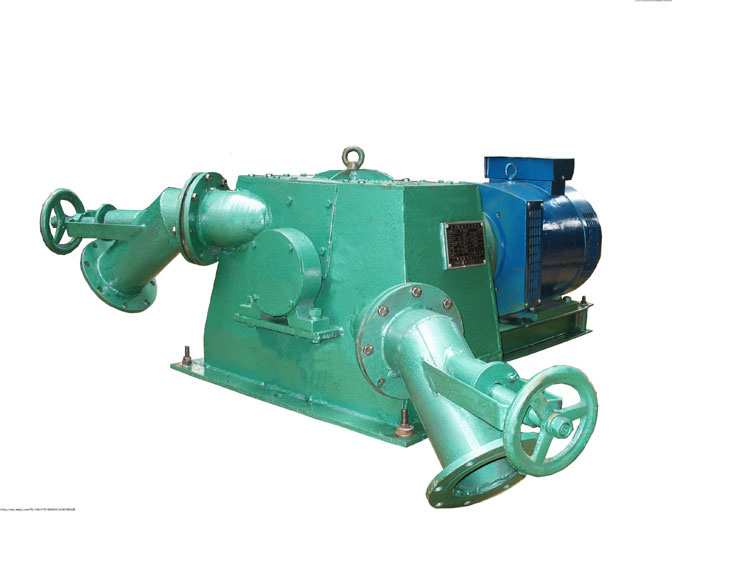

Inclined-jet hydro turbine generator
Cross flow water turbine generator
Tubular water turbine generator
Impulse type water generator
Low speed Permanent magnet generator
Power
(kW) | Water head
(m) | Flow Rate
(m 3 /s) | Speed
(r/min) | Diameter
(mm) |
| 10KW | 30-40 | 0.0482-0.05 | 1000 | 200mm |
| 15KW | 40 | 0.05 | 1000 | 200mm |
| 20KW | 40-50 | 0.089 | 1000 | 250mm |
| 30KW | 45 | 0.101 | 1000 | 250mm |
| 40KW | 55 | 0.12 | 1000 | 250-300mm |
| 50KW | 60 | 0.127 | 1000 | 300 |
Xinda Green Energy Co., Limited is specialized in handling the business of vertical and horizontal wind turbine generator, various kind of permanent magnet generator(0.05-3000kw), speed from 20rpm-20000rpm, both vertical and horizontal, small hydro turbine system(low head and higher head), wind solar hybrid system, high efficiency high seepd permanent magnet motor, street lamp and so on
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
