Solar System Optimal Working Scope:
1. Household lighting
2. TV
3. Fan
4. Radio
5. Bulb
6. Notebook computer
Solar System Not Suitable For Load:
1. Electric motor
2. Refrigerator
3. Air conditioning
4. Microwave
5. Ovens
In urgent case, our solar system mobile power station can connect with automobile battery to start automobile.

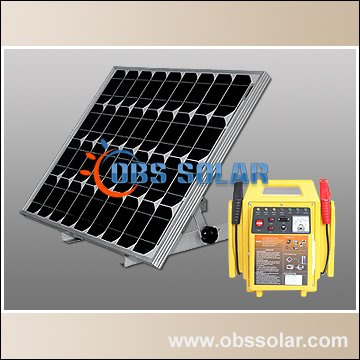

40W Solar System
Model Number OBS-SPS40W
Solar panels number For 1 panel
Solar panels power
40 Wp
Charging Adapter 12V/5A
Solar panels charge current 2.22A
Battery voltage/battery Capacity 12V/20Ah
Max. Current of charging Adapter 12V/5A
Max. Current of DC fuse 40A
Max. Current of AC fuse 250V/2A
DC fluorescent lamp ( Replaceable ) DC12V/5W
Output AC voltage/ Frequency 220V/50Hz/60Hz, or 110V/50Hz/60Hz
Voltage Meter Real-time display the output voltage
Invevter power 500W
Output AC Wave Modify sine wave
Battery voltage range 10.0 15.0 Vdc
Inverter conversion efficiency ≥ 90
Auto-protection Low/High-voltageoverload /short current protection
Ambient temperature range -20-60
Support Angle 15-45 degree
Support Material Aluminum Alloy
Support Color Natural Color
Solar panels Warranty 5 Years
Support Warranty 10 Years
Solar System Battery Charge Method:
1. Solar panels
2. AC power.
Solar System Battery Charge Notices:
1. AC adapter charge ( different type of AC charge available )
While AC power available, please charge mobile power station with AC adapter.
LNon-matching adapter is forbidden, Otherwise, the battery will be damaged.
2. Solar Panel charge
Place solar panel outdoors and remove all covering on surface of solar panels, make sure solar panels face sun in south direction to absorb sunlight fully, . Then plug the power line of the solar panels into "SOLAR CHARGE" socket.
The adopted solar panels with peak power range: 10W-80W. ( Monocrystalline or Polysilicon solar panels), and fully charge time vary with different solar panels.
3. To achieve the more working time, you can external connect with battery.
Connect red line with positive pole of battery, and back line with negative pole of battery.
Our solar system mobile power station with reasonable design of light weight, small size, high-power, current transfer ability from DC to AC in efficient way, and two method of battery-charge.
Solar System Applications:
Our Solar System mainly used as for home lighting, travel, emergency, rescue, exploration, post and office etc...
We can manufacture goods according to customers' needs.
Our solar system is very popular, and has been exported to Africa, Finland etc.
