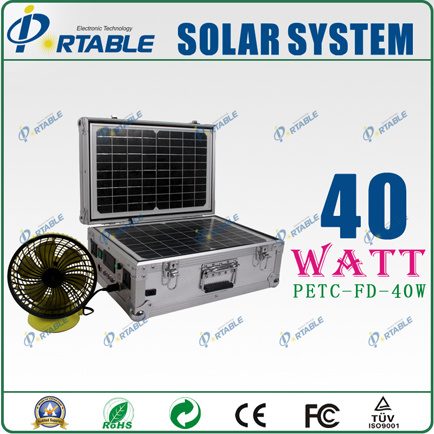

1.40W Solar Light Kit in Portable Design for Home
2.Solar inverter:150W
3.Controller:10A
4.Battery: 36AH
5.Built-in relay
Solar System 40W solar system with cheap price form china, 2013 hot porduct
Feature:
The system is a small AC Power Supply System which is designed for the farmers, herdsmen, outdoor camping, tourism etc. Easy to operate, convenient to carry. Controller, Inverter and battery are storage in control box.
When battery is full, it can support 50W fan working more than 6hours.
The system including:
main parts
specification
parameters
quantity
solar panel module
polycrystalline
20W
2pcs
battery
sealed lead-acid
12AH
3pcs
solar control system
controller
10A
1pcs
inverter
150W
1pcs
control box
1pcs
AC/DC output
The system can support:
Device
quantity
Working time
Condition
DC12V/9 Energy saving lamp
2PCS
About 13.5 hours
Battery is in full condition
30W printer
1PCS
About 10 hours
35W fan
1PCS
About 9 hours
65W TV
1PCS
About 5 hours
100W refrigerator
1PCS
About 3 hours
Speecification:
1) Solar Panel:2*20W,working voltage:18V
2) Battery:12V/36Ah
3) Inverter: input DC12V;output 220V/150W
5) Controller:10A
DC: Output will stop when the voltage of battery is less than10.5V(Red indicator light turn on). When it reaches 12.6V, it works again (red indicator light turn off)
AC: Output will stop when the voltage of inverter and battery is less than10.5V(Switch indicator light turn off). When it reaches 12.6V, it works again (Switch indicator turn on)
6) Working time: (DC)support 2*9W/12V lamps to work 13.5 hours
(AC) support 10W-100W appliance to work about 31-3hours
The above information is only for reference. Our R&D team can design the system according to the local natural resources and customers specific requirements.
Portable 40W solar system:
|
main parts |
specification |
parameters |
quantity |
|
solar panel |
mono/polycrystalline |
20W |
2pcs |
|
solar battery |
Sealed lead-acid |
12AH |
3pcs |
|
solar control system |
Controller |
10A |
1pc |
|
inverter |
150W |
1pc |
|
control box |
|
1pc |
|
output |
AC 220V |
|
1pc |
|
DC 12V |
|
2pc |
|
This system can support: |
|
Design load appliances |
Model |
Load Power |
Quantity |
Working Hours/Day |
Power Consumption/Day |
Continued Working Days |
|
Lighitng |
Fluorescent lamp |
40W |
2 |
2 |
160WH |
2Days |
|
Color TV |
21 Inch |
60W |
1 |
2 |
120WH |
2.6Days |
|
Laptop |
SAMSUNG R528 |
60W |
1 |
2 |
120WH |
2.6Days |
|
Printer |
Inkjet |
30W |
1 |
0.5 |
15WH |
20.8Days |
|
Fax |
Inkjet |
150W |
1 |
0.5 |
75WH |
4Days |
|
Satellite TV Receiver |
|
25W |
1 |
2 |
50WH |
6Days |
|
Fan |
Haier |
50W |
1 |
2 |
100WH |
3Days |
|
Radio |
SONY ICF-B100 |
3W |
1 |
6 |
18WH |
17Days |
|
Mobilephone |
iPhone 3GS |
2.5W |
2 |
8 |
40WH |
7.8Days |
|
Intercom |
MOTO |
7.5W |
1 |
6 |
45WH |
7Days |
|
Stallite Phone |
MOTO |
12W |
1 |
2 |
24WH |
13Days |
|
GPS |
|
4W |
1 |
4 |
16WH |
19Days |
