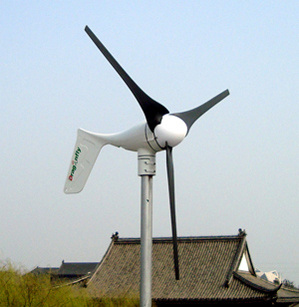

400W wind turbine
CE approved.
Built-in controller
12/24V
Model Dragonfly400
Rotor Diameter 46.1 in (1.17 m)
Weight 12.5lb (5.65 kg)
Shipping Dimensions 23.8 x 15.7 x 7.5 in (604x 400 x 190 mm)
Mount 1.5 in schedule 40 pipe 1.9 in (48.26 mm) OD
Start-Up Wind Speed 8.5 mph (3.8 m/s)
Voltage 12/ 24VDC
Rated Power 400 watts at 29 mph (13 m/s)
Turbine Controller Microprocessor with peak power tracking
Body Cast aluminum
Blades 3-Carbon fiber composite
Overspeed Protection Electronic torque control
Grid Feeding Utility Interactive 120/240 VAC 50-60 Hz
Kilowatt Hours per
Month
40 kWh/mo at 12 mph (5.5 m/s)
Survival Wind Speed 112 mph (50 m/s)
Warranty 1 year limited warranty
Packing: Carton
Gross weight per set: 10.0 kg
Packing size: 604× 400× 190
400 W wind turbine packing list
No. Product Description Qty.
1 Nacelle ass'y(controler integrated) 1
2 blade 3
3 nose cone 1
4 hub 1
5 kit (includes fasteners ) 1 set
Our main products include wind turbine, wind solar hybird controller, inverter, Solar panel, Solar wind hybird system and other related products.
We sincerely invite you to consider us in your future purchase from China. We are confident that we will be a reliable and valuable partner.
