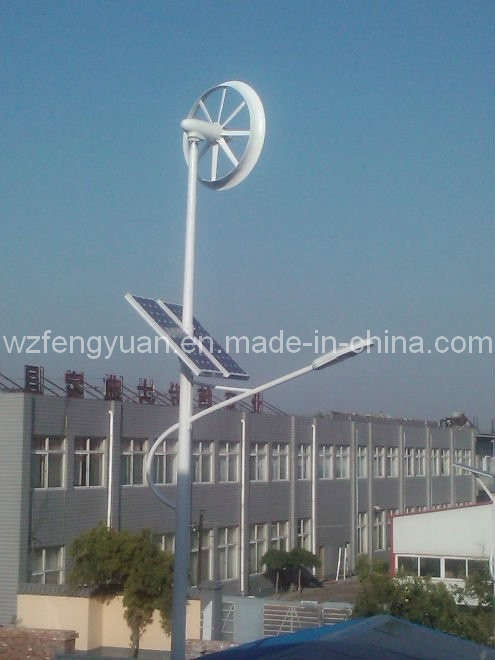

400W Wind and Solar Hybrid Streetlamp
1. Wind and solar power supply
2. Higher security and reliability
3. Free maintenance
400W Wind and Solar Hybrid StreetlampWind and solar hybrid power generation system characteristic
1. System can gain stable power supply by use of wind and solar hybrid system, higher security and reliability.
2. Reduce the battery capacity in the condition of power supply.
3. Through suitable design and match, this wind and solar hybrid system can supply power independently.
System Configuration Analysis
Main configuration of the system: 1 piece of 70W/24V LED lamp, 1 set of 400W/24V wind turbine, 2 sets of 60W/12V solar panels, 2 pieces of 12V/150AH batteries, 10 meter lamp tower and so on.
The electricity can satisfy 70W LED lamp 12 hours' illumination electricity demand in a day with the natural conditions of annual average wind speed at 4.0 m/s and annual average sunshine time in 2700 hours.
As long as the natural condition of the installation location is the same with the above mentioned or better than that, the wind and solar hybrid system can generate enough electricity for daily demand of the street lamp. 2 pieces of 12V/150AH batteries can satisfy electricity demand of the street lamp in three days at the condition of no wind and no sunshine(circuit and battery conversion efficiency has already been considered).
|
TY-400W Wind turbine technical parameter |
|
TY-400w Technical Parameter |
|
Rotor diameter (m) |
1.15 |
|
Blade material and quantity |
Reinforced fibber glass*8 |
|
Rated power / Max power (W) |
400w/800w |
|
Rated wind speed (m/s) |
12 |
|
Rated rotating speed (rpm) |
800 |
|
Working speed (m/s) |
3-25 |
|
Start-up wind speed (m/s) |
2 |
|
Survived wind speed (m/s) |
50 |
|
Working voltage (V) |
24V |
|
Speed regulation method |
Stall, electromagnetic damping |
|
Generator style |
Permanent magnet, three phase, AC |
|
Wind turbine main body weight (kg) |
30 |
|
tower height (m) |
8~10 |
|
Suitable temperature |
-30~+50° C |
|
Environment humidity |
90% |
|
Noise level (decibel)dB |
< 60 |
|
Wind and solar hybrid controller technical parameter |
|
Rated Battery Voltage |
24V |
|
Rated Wind Turbine Maximum Power |
600W |
|
Rated Wind Turbine Maximum Input Current |
40A |
|
Wind Turbine Maximum Input Power |
1000W |
|
Unload Voltage(factory default) |
28V |
|
Unload Current(factory default) |
25A |
|
PV Maximum Charge Current |
10A |
|
Unload Mode |
PWM |
|
Display |
LCD |
|
Display Parameters |
Battery Voltage, Wind Turbine Voltage, PV Voltage, Wind Turbine Current, PV Current, Wind Turbine Power, PV Power, Under-voltage, short-circuit, Night. Etc |
|
Range of working temperature & Humidity |
-20~+55° C/35~85%RH(Without Condensation) |
|
Protection Mode |
Solar cells reverse charging, Solar cells anti-reverse, battery over charge, battery over-discharge, battery anti-reverse, over load, load short-circuit, lighting, wind turbine current limitting, wind turbine automatic brake and manual brake. |
|
Battery technical parameter |
|
Model |
6-CNF-150 |
|
Rated voltage |
12V |
|
Rated capacity |
150AH |
|
Packaging dimension(mm) |
482× 170× 240 |
|
Weight (kG) |
48 |
Zhejiang Fengyuan Energy Technology Group Co., Ltd. is the professional manufacturer of small wind turbine generators which is a branch of Zhejiang Fengyuan Group Co., Ltd, The company has an established product range, and undertakes active investment in the development and promotion of both proven and innovative renewable energy technologies. Specializes in research, development, manufacturing, service as one large-scale and all-around "nomarchy high technology corporation. We have solar PV, scale-middle wind turbines, LED lighting and have got CE, ISO 9001, TUV and other product certificate, we have Zhejiang Wenzhou, Jiaxing Haining and Shangdong Linshu three manufacturer sites, after these three manufacturer sites finished building the annual value of production can reach to 50 hundred million RMB.
After 10 years development the products of wind turbine generator range from 400W, 1KW, 2KW, 3KW, 5KW, 10KW to 50KW with CE certificates honored. Thanks to the wide sorts and good quality, the products have already taken up the majority of domestic market and have been exported to more than 40 countries, say, Britain, France, the United States, Canada, New Zealand, Argentina, India etc, received high affection and reputation from the users.
Zhejiang Fengyuan Group Headquarters in Jiaxing Haining, for our Group have nearly a subsidiary of 18 to Join, have a branch like Zhejiang Fengyuan Energy Technology Co., Ltd, Shandong Tuoyuan Energy Technology Co., Ltd and so on, with a total registered capital of up to 500 million RMB. For our Shandong Tuoyuan Energy Industrial Park have finished, which is a subsidiary of Zhejiang Fengyuan Energy Technology.
Zhejiang Fengyuan Energy Technology will devote to the continuous development of green power resources and build the wonderful green world, and will try it's best supply excellent service!
