Main info
Item No: PWT400/11-H
Rotating Shaft: Horizontal
Blade no: 3 blades
Warranty: 3 years
Long life time: Up to 15 years.
Yawing Type: Mechanical yawing
Protection: Electromagnetic Brake
Export Markets: Global
Another Info.
Packing: Foam And Carton
Origin: Guangzhou, China
Production Capaity: 1000 PCS Per Month
Product Description:
Guangzhou Poem of Light Energy Technology Co., Ltd is specialized in R&D and manufacturing wind turbines, solar home systems, wind-solar hybrid street lights as well as a wind/solar energy solution provider in Guangzhou.
Wind turbines features:
High Efficiency, High reliability
Start Up in Gentle Breeze
Maintenance- free
Light Weight, Easy to Install
Heavy Wind Resistance, Low Noise
Anti-Rust, Anti-Corrosion
Damp-Proof, Water-Proof, Sand-Proof
Use Magnetic circuit which is made by permanent magnet, high-quality tombarthite with optimal design lead to high electricity transform efficiently

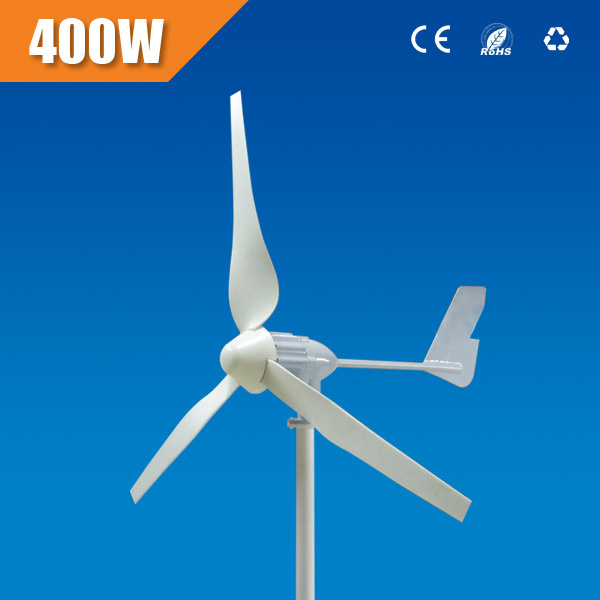

The PWT400/11-H wind turbine uses natural wind energy to drive rotor and generator for generating electric, and then stores it in the battery by controller. The battery will discharge electric energy to lighting or other DC appliances when they are using. It's also can convert to AC 220V/50Hz (or 110V/60Hz) by inverter for AC appliances.
Application:
POL series wind generator is a new type of green energy specially applies for roadway illumination\park landscape illumination\home appliances, as well as some places lack of electricity or no electricity, such as rural area\mountain area\pastoral area\border post\weather station\radar station\ relay station and outdoor exploration, the small and medium power generation is an ideal investment and lifetime benefit device.
Pictures of reference:
Wind turbine Workshop:
Certificate:
|
Technical Parameters |
|
Rated Power |
400W |
|
Start-up wind speed |
2.5m/s |
|
Cut-in wind speed |
3m/s |
|
Rated wind speed |
11m/s |
|
Survival wind speed |
50m/s |
|
Rated DC output |
12V/24V |
|
Low Noise |
LAeq 35dB@5m/s@5m behind rotor |
|
Over speed protection |
Electromagnetic braking by adaptive controller |
|
Height of pole |
6m-10m |
|
Working Temp. range ° C |
from -40° C to 60° C . special low temp. blade is very suitable for low temp areas . the blades is tested on the low temp during long years ,they are still working. On High temp areas (like middle east ). they have been running for many years. |
|
Generator Type |
Brushless 3-phase PMA with high performance Neodymium Magnets |
Appearance |
|
Color |
Gray white/ white |
|
Diameter of rotor |
1.5m |
|
Blade material |
FRP (Fiber Reinforced Plastic ) |
|
Gross weight |
19kg |
|
Packing dimension |
1138*496*255mm |
GUANGZHOU POEM OF LIGHT ENERGY TECHNOLOGY Co., Ltd(POL) is a high-tech company specilized in R&D, production and sales of wind turbines, solar home systems and this kind of new energy products. POL pools a group of advanced technical personnel in the field of new energy generation. Among them are 5 overseas returnee doctors and masters with many years working experience in this field abroad.
POL has independent R&D centre, regarding independent innovation as lifeline of the enterprise. The company has built the new energy generation solution technical plarform with filtering by high-lights, generation by dim-lights and breeze, energy management and intelligent control as core technology with several technology advanced in the world and proceded in China.
On the basis of the independent R&D, the company promote international co-operation positively; And trace and synchronize international technology development in new energy field through the co-operation to make sure that the company's strategic development direction is right.
The main products of POL include high-efficient Wind turbine, new energy street lamps, home power system and other application products. With our advanced technology platform, POL can provide a lot of new energy power generation solutions for our custommers.
