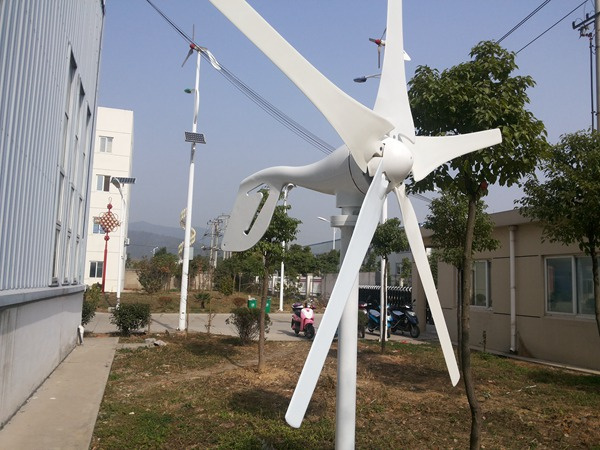

400W Wind Energy Generator (Wind Energy Turbine 100W-20KW)

400W Wind Energy Generator (Wind Energy Turbine 100W-20KW)
Price: US $ 1/Piece
Trade Terms: FOB,CIF,DDP
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union
We can supply horizontal axis wind turbine from 100W~20KW. The main feature is as following:

Features

Rated voltage 12V\24v

Design-optimization in our own wind-tunnel

Permanent magnet-generator

Very good start-up performance due to low cogging torque at 2,2m/s wind speed

External hybrid controller for wind- and solar-energy with multi-function display
and integrated electronic/manual stop switch

Universal application for low, middle and high wind

Hand laminated, UV-resistant carbon blades, successfully tested according to DIN EN 61400-2 at hurricane speed 122km / h (5480 rpm, with almost Speed of  sound at the blade tips).

Our blades are handmade incorporating high tensile carbon fibre mats. This is a more labour
 intensive process resulting in an optimized blade profile at the lowest weight, which combines
 a very quiet operation, blade longetivity and an exceptional safety record.


Aerodynamic design from aircraft-engeneering

Low noise

Durable and low maintenance by external controller and high-quality components

Well used in

Housing, office, farm and factory

Telecommunications Station

TV Transfer Station

Monitoring Station (military, hydrology, observatory)

Wind solar hybrid street light system

ModelWKH-400
Rated Power400W
Max Power500W
Start-up Wind Speed2m/s
Rated Wind Speed12m/s
Survival Wind Speed45m/s
Output VoltageDC12/24V
Working Wind Speed2-25m/s
Rotor Diameter1.3m
Material of BladesCarbon fiber composite
Quantity of Blades3/5pcs
Generator typeAC, 3 phases
Controller Braking System3-Phase short circuit by NFB brake
Range of Working Temperature-40ºC-60ºC

Prod Model: WKH-400
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: Wkh-400
Number Of Blade: Multiple-Blade
Rotating Shaft: Horizontal
Stress Way Of Blade: Resistance
Certification: CE&RoHS
Hefei Wind Wing Energy Technology Co., Ltd. is the earliest one of the R & D wind energy generation equipment in China. Our company develops under the support of Chinese Wind Power Association, depends on Chinese Academy of Sciences Institute of Automation the long-term technical guidance and the close cooperation. We take the "the national initiative energy crisis subject" as our development goal. Now we have a strong R&D group, and researched and developed a profession leading WIND AND SOLAR SUPPLEMENT new energy generating system.

People are paying attention to our products, for the features: Green energy, environmental protection, regenerative and natural energy, etc. Our systems have widely applied in so many fields: City view, communication station, military army, science & education, weather department, fishing vessel, irrigation, oil well, seawater desalination, open country inspection, and so on.

As the first domestic enterprise developing the WIND AND SOLAR SUPPLEMENT new energy, we have passed ISO9001: 2000 quality and management system certification and EU CE certification. Our WIND AND SOLAR SUPPLEMENT new energy range systems are faithful and popular in the domestic and foreign clients, becoming the profession leading enterprise.

We always persist in the enterprise culture of "being a creditable person, live a worth while life", we insist on providing vast customers with the first-class goods, the top-notch technology heart and soul. We heartedly wish to intensively co-operate with old and new customers for greeting together with the challenge WIND AND SOLAR SUPPLEMENT new energy spring arrival!
