Vertical axis wind turbine
Lowest cut-in wind speed
1 m/s for power production
No noise, no vibrations
(sound level< 25 dB at 7 m/s from 10 m distance)
Adaptable for hybrid solutions
with solar and other sources of energy
Permanent power supply
from wind/solar and continuous battery charging
Technically advanced Maglev generator
No mechanical friction
Best price-performance ratio All weather resistant
(rain, ice, heat, salt, sand)
Independent of wind direction
Suitable for roof fixation
Maintenance-free
Safety for people and nature
Specifications
1. High efficiency, security, stablity
2. Low weight, low start-up wind speed.
3. Long service life
Vertical wind turbine generator(VAWTs)are a type of wind turbine where the main rotor shaft is set vertically and the main components are located at the base of the turbine. VAWTs offer a number of advantages over traditional horizontal-axis wind turbines (HAWTs). They can be packed closer together in wind farms, allowing more in a given space. They are smaller, but rather due to the slowing effect on the air that HAWTs have, forcing designers to separate them by ten times their width.
Characteristic:
1. Utilize a new aerofoil vertical axis wind wheel and magnetic suspention structure
2. The start-up wind speed is very low
3. The wind energy coefficient is very high
4. The anti-wind capability is high
5. The weight of generator is very light
6. Operation is stable
7. Have no noise
8. With careful anti-corrosion treatment and good sealing
9. Maintenace free
10. Long service life
Useage
· Household, Garden, farm eolic vertical wind turbine generator, Off grid and on grid power system
· Telecom sites.
· Rural electrification programs. Island, sentry, island, sight lighting
· Make wind -solar hybrid power system
Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed
4. Solved the problem with you during using our products

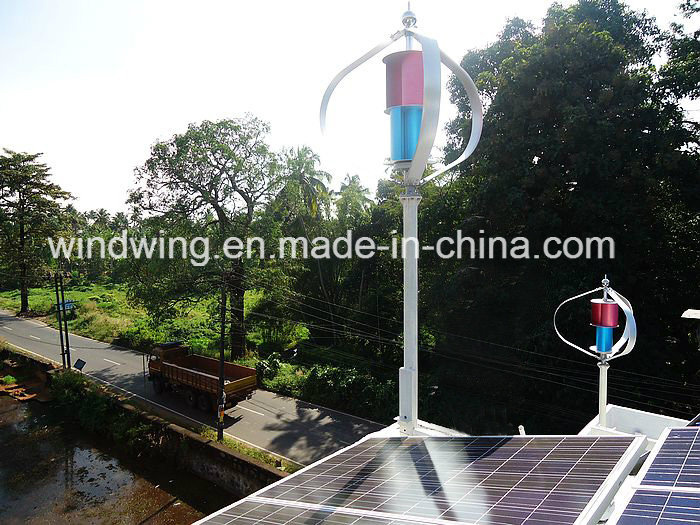

400W HOME USE PROJECT INTRODUCTION:
400w24v vertical iwnd turbine 2 unit
100w solar panel 4 pieces
400w24v wind-solar controller with LCD display 2 unit
1000w pure sine wave inverter 1 unit
12v150Ah battery 4 pieces
400W VERTICAL WIND TURBINE PARAMETER
| PARAMETER | VERTICAL WIND TURBINE MODEL NUMBER |
| | WKV-400 |
| Rated Power | 400w |
| Size(Height / Diameter) | 1.2/1.06(M) |
| Blades Material | aluminum alloy |
| Start-up Wind Speed | 1m/s |
| Minimum Power Generation Wind Speed | 2m/s |
| Cut-in wind speed | 2.5m/s |
| Rated Wind Speed | 12m/s |
| Cut out Wind Speed | 15m/s |
| Survival Wind Speed | 65m/s |
| Generator Type | AC, 3 phases |
| Controller Output Voltage | 12\24V |
| Controller Braking System | 3-Phase short circuit by NFB brake |
| Ambient Temperature | . -30~50 °C |

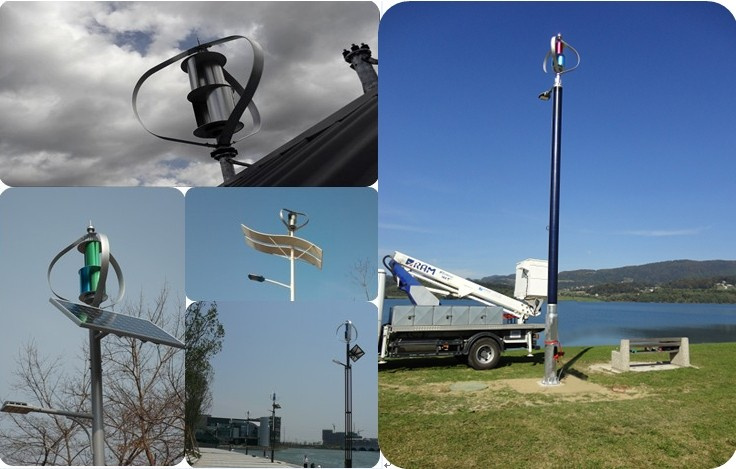

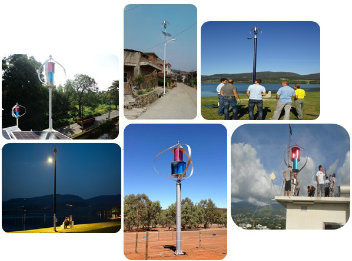

More Project Picture
More Model
| Model No. | Output Power(W) |
| WKV-200 | 200W |
| WKV-300 | 300W |
| WKV-400 | 400W |
| WKV-600 | 600W |
| WKV-1000 | 1KW |
| WKV-2000 | 2KW |
| WKV-3000 | 3KW |
| WKV-5000 | 5KW |
Hefei Wind Wing Energy Technology Co., Ltd. is the earliest one of the R & D wind energy generation equipment in China. Our company develops under the support of Chinese Wind Power Association, depends on Chinese Academy of Sciences Institute of Automation the long-term technical guidance and the close cooperation. We take the "the national initiative energy crisis subject" as our development goal. Now we have a strong R&D group, and researched and developed a profession leading WIND AND SOLAR SUPPLEMENT new energy generating system.
People are paying attention to our products, for the features: Green energy, environmental protection, regenerative and natural energy, etc. Our systems have widely applied in so many fields: City view, communication station, military army, science & education, weather department, fishing vessel, irrigation, oil well, seawater desalination, open country inspection, and so on.
As the first domestic enterprise developing the WIND AND SOLAR SUPPLEMENT new energy, we have passed ISO9001: 2000 quality and management system certification and EU CE certification. Our WIND AND SOLAR SUPPLEMENT new energy range systems are faithful and popular in the domestic and foreign clients, becoming the profession leading enterprise.
We always persist in the enterprise culture of "being a creditable person, live a worth while life", we insist on providing vast customers with the first-class goods, the top-notch technology heart and soul. We heartedly wish to intensively co-operate with old and new customers for greeting together with the challenge WIND AND SOLAR SUPPLEMENT new energy spring arrival!
