Home Generator Products 400W/ 80W/ 24V Wind Solar LED Street Light

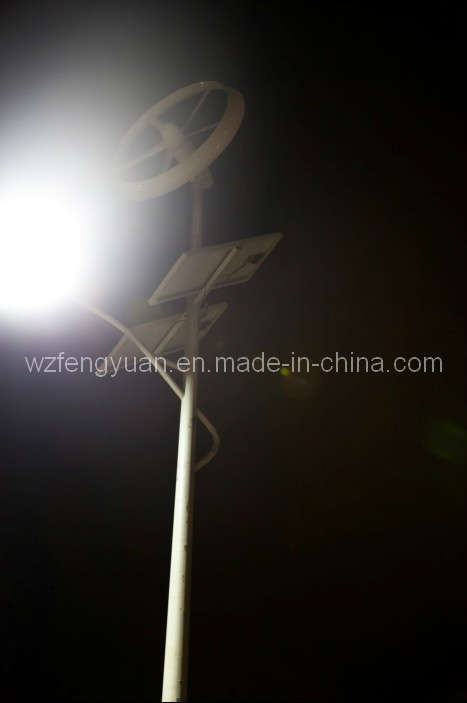

400W/ 80W/ 24V Wind Solar LED Street Light

400W/ 80W/ 24V Wind Solar LED Street Light
Price: Negotiable
Trade Terms: FOB
Min Order: 5/Set
Pay Type: L/C,T/T
New TY-400W wind Turbine:
1. Specification of the wind turbine:
Safe running wind rotor; High efficiency; High-strength magnets and protection mechanism; Nice appearance; Stable output power

(1)All-weather power generation: The wind power and solar power are complementary. The whole system can not be affected by the climate and weather season and will produce the continuous electricity the whole year, thus satisfying the demand of the street lamp.
(2)Start in breeze: Wind rotor was designed with 8 pieces of blade, thus increasing started torque of the wind turbine, at the same time, started wind speed of the wind turbine reduced.

(3)High power output: Wind rotor was also designed with diffuse type, thus increasing the wind speed which goes through the wind rotor by 1.1 to 1.2 times, enhancing the power of the generator by 1.4~1.7 times. In a word, The generating efficiency and annual energy output was increased.
(4)High security and high stability: The wind turbine adopts high-strength magnets and protection mechanism such as not fricative and speed limiting damper. Thus enhancing the security and the stability of the wind turbine.
(5)Long life span: The wind turbine adopts no cover design, thus getting less material consumption, light wight, good heat dissipation, strong overload capacity and long life span.

(6)We adopt rotatory and accelerated damping mechanism in order to make the wind turbine against the wind neatly and avoiding frequent trembling.
(7)Easy installation: The slip ring adopts special wire brushes, it is flexible rotation with small volume, light wight and easy installation.
(8)Environmental Protection and Energy Conservation
TY-400w Technical Parameter
Rotor diameter (m) 1.15
Blade material and quantity Reinforced fibber glass*5
Rated power / Max power (W) 400w/800w
Rated wind speed (m/s) 12
Rated rotating speed (rpm) 800
Working speed (m/s) 3-25
Start-up wind speed (m/s) 2
Survived wind speed (m/s) 50
Working voltage (V) 24V
Speed regulation method Stall, electromagnetic damping
Generator style Permanent magnet, three phase, AC
Wind turbine main body weight (kg) 30
  tower height  (m) 8~10
Suitable temperature -30~+50° C
Environment humidity 90%
Noise level (decibel)dB < 60
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Stress Way Of Blade: Lift Force
Rotating Shaft: Horizontal
Number Of Blade: 5
Zhejiang Fengyuan Energy Technology Group Co., Ltd. is the professional manufacturer of small wind turbine generators which is a branch of Zhejiang Fengyuan Group Co., Ltd, The company has an established product range, and undertakes active investment in the development and promotion of both proven and innovative renewable energy technologies. Specializes in research, development, manufacturing, service as one large-scale and all-around "nomarchy high technology corporation. We have solar PV, scale-middle wind turbines, LED lighting and have got CE, ISO 9001, TUV and other product certificate, we have Zhejiang Wenzhou, Jiaxing Haining and Shangdong Linshu three manufacturer sites, after these three manufacturer sites finished building the annual value of production can reach to 50 hundred million RMB.

After 10 years development the products of wind turbine generator range from 400W, 1KW, 2KW, 3KW, 5KW, 10KW to 50KW with CE certificates honored. Thanks to the wide sorts and good quality, the products have already taken up the majority of domestic market and have been exported to more than 40 countries, say, Britain, France, the United States, Canada, New Zealand, Argentina, India etc, received high affection and reputation from the users.

Zhejiang Fengyuan Group Headquarters in Jiaxing Haining, for our Group have nearly a subsidiary of 18 to Join, have a branch like Zhejiang Fengyuan Energy Technology Co., Ltd, Shandong Tuoyuan Energy Technology Co., Ltd and so on, with a total registered capital of up to 500 million RMB. For our Shandong Tuoyuan Energy Industrial Park have finished, which is a subsidiary of Zhejiang Fengyuan Energy Technology.

Zhejiang Fengyuan Energy Technology will devote to the continuous development of green power resources and build the wonderful green world, and will try it's best supply excellent service!
