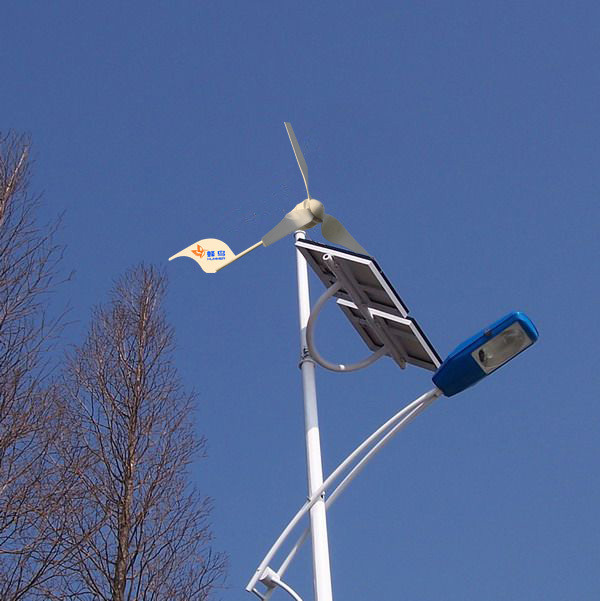

1)System Description
The solar panels receive solar energy and wind turbines receive wind energy, and they charge batteries in the meantime. Electricity converted by wind energy and solar energy is stored in batteries. The controller switches on automatically and supplies the electricity stored in batteries to LED lamp. Switching on and off LED lamp are also controlled automatically.
2) Component parts:
HUMMER patented technology wind generator, solar panel, LED lamp, pole, wind-solar hybrid controller, energy-storing battery and water-proof battery box.
3) Features:
1. Energy saving and emission reduction: Not to consume the conventional energy, not to release carbon dioxide, and not to pollute the environment.
2. Economizing and environmental protection: Clean-energy, no pollution, and no radiation.
3. Stable system: Working independently, not affected by massive blackout.
4. Quite adaptability: Free from seasons and weather, powering continuously at all seasons.
5. Long service life: The whole generator can be used more than 15 years.
4) Application:
Suburban roads, Factory, Landscape lighting, Park, Living area, Parking lot, Plaza, Tourist area, Remote area and highway, etc.
5) LED lamp features:
Higher efficient and lower power consumption: LED lamp's efficiency is the highest, the power consumption is only 20% to 30% compared with traditional lamp.
Longer lifespan: The lifespan of LED is more than 50000 hours and can continue working for 12 years if every day working time is 11 to 12 hours.
|
Rated power (W) |
600 |
|
Maximum output power (W) |
800 |
|
Battery bank voltage (Vdc) |
24 |
|
System output voltage (Vdc) |
24 |
|
Start-up wind speed (m/s) |
2.5 |
|
Rated wind speed (m/s) |
11 |
|
Working wind speed (m/s) |
3-25 |
|
Survival wind speed (m/s) |
50 |
|
Generator efficiency |
> 0.8 |
|
Wind energy utilizing ratio (Cp) |
0.4 |
|
Generator type |
Permanent Magnet Alternator |
|
Generator weight (kg) |
7 |
|
Blade material/quantity |
GRP/3 |
|
Blade diameter (m) |
1.25 |
|
Speed regulation method |
Yawing + Electromagnetism braking |
|
Shutting down method |
Manual + Automatic |
Anhui Hummer Dynamo Co., Ltd. is a professional wind generators manufacturer with high-tech in the field of wind energy.
We specialize in researching, developing, producing and promoting of small-sized wind generator system, and also provide solutions for setting up small-scaled wind farm. After nearly 30 years efforts, our company has developed independent intellectual property rights of "Hummer" wind generator and control system.
There are more than 200 employees in the company including 40 R&D staff. And the factory covers over 30, 000 square meters with the workshop more than 7.5 Acres. There are more than 100 sets of large machines for processing, cutting and spray-painting equipments, and also many testing and examining systems. The monthly output is 3, 000 sets.
All Hummer small-sized wind generators including wind generator from 400W to 200KW, which have acquired CE certificate. Meanwhile, Hummer' S wind generator with good reputation can be found in more than 91 countries and regions, such as EU, North America, Oceania, Africa and Asia.
Hummer' S wind generators have the features of "Super Light, Small, Swift and High efficiency" when comparing with traditional' S. We have a powerful R&D team (consisting of experts enjoying government allowance), providing a reliable strength for product upgrade& technical support. The management team has abundant experiences in production, marketing, service and consultation. Until now our company has formed a comprehensive management system of research, study, development and service.
Hummer aims to be a worldwide influential enterprise as well as the best domestic manufacturer and service provider.
