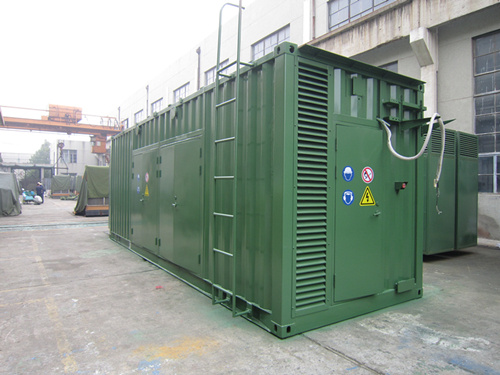

400KW biogas generator set with CHP system
General introduction
The project proposes to use 1 unit of automated mute containerized biogas generator sets with the model of 400GJZ1-PwZ-ESM1, ancillary cooling system, electrical system, biogas transmission and pretreatment system and other ancillary production system manufactured by AVESPEED Group to construct a biogas power plant with a total installed capacity of 400kW. The 400V, 50 Hz alternate current generated by generator sets shall be of low-voltage and grid-connected running.
The Reasons For Choosing AVESPEED Gensets:
1. Flexible installation capacity
Customers can install appropriate number of units of generators according to specific load requirement. The unit capacity of AVESPEED generator ranges from 30kw to 600kw. The capacity of the engine can be increased easily to meet the requirement of increasing load thereby reducing shortage of power supply or avoiding excessive installation capacity.
2. Flexible system operation
With the features of quick starting, synchronization and quick on-load, when power supply is needed, customer can start generator according to specific load. No matter how long the generator operates per year, AVESPEED generator will provide power supply with consistent efficiency.
3. Flexible installation site
The installation of generator could be centralized or in distribution. If the location of the system load is frequently changed, containerized generator is an option.
4. Flexible fuel quality
AVESPEED has a generator for each of the different types/quality of gas, such as piped natural gas, associated gas, coal-bed methane and biogas. Briefly, gas with calorific value above 3.5 MJ can be used.
5. Flexible maintenance plan
Flexible maintenance plan can be made for generator in parallel operation. The customer can opt to maintain the generator by rotation, so the power supply of the system will not be interrupted during maintenance. Maintenance of one generator will not affect the normal power supply of other generators.
Payment term and delivery terms:
Delivery Time: 20 working days
Period of Validity: In 30days
Packing: Foam plate packaging/ wooden case packing
Terms of Payment: 30% of the total amount prepaid as front money after the contract, 70% of the total amount paid before delivery.
Delivery term: FOB Shanghai
Warranty: 12 months or 1000 running hours since discharge of the goods at buyer's place.
|
Biogas Generator Set |
Generator Set |
Type |
400GJZ1-PwZ-ESM1 |
|
Rated Power(kW) |
400 |
|
Rated current(A) |
722 |
|
Rated voltage(V) |
400 |
|
Rated power factor(COSΦ) |
0.8 (lagging) |
|
Frequency(Hz) |
50 |
|
Lube oil consumption (g/kWh) |
≤0.9 |
|
Switch on method |
24VDC |
|
Starting Mode |
Automatic |
|
Voltage control method |
Automatic |
|
Speed regulation method |
Electronic governor |
|
Excitation way |
Brushless |
|
Wiring method |
Three-phase, four-wire system or Three-phase, three-wire system |
|
Cooling method |
Closed type |
|
Connection type |
Flexible coupling connection |
|
Dimension, L×W×H(mm) |
5440×2000×2845 |
|
Weight(kg) |
10750 |
Engine |
Model of engine |
12V190 |
|
Configuration and type |
four stork, direct injection fuel system |
|
Cylinder arrangement |
V type 60°included angle |
|
No.of cylinder |
12 |
|
Total displacement, (L) |
71.45 |
|
Rated speed(r/min) |
1000 |
|
Idle speed(r/min) |
600 |
|
Rated power(kW) |
450 |
|
Lube oil consumption(g/kWh) |
≤0.9 |
|
Lube oil pressure in oil main line(kPa) |
400~800 |
|
Lube oil pressure in turbocharger (kPa) |
200~400 |
|
Stable speed drop (%) |
0~5 adjustable |
|
Lubricating system |
Pressure and splash lubrication |
|
Ignition method |
Spark plug ignition |
|
Starting method |
24VDC motor |
|
Direction of rotation |
Clock-Wise (viewed from the front) |
|
Speed Regulation |
Electronic Governor |
|
Cooling system |
Forced circulation water cooling |
|
Output way |
flywheel output |
Alternator |
Alternator model |
1FC6 408-6LA42 |
|
Output power(kVA) |
500 |
|
Rated speed(r/min) |
1000 |
|
Rated voltage (V) |
400 |
|
Rated current (A) |
722 |
|
Frequency(Hz) |
50 |
|
Power factor(lag) |
0.8 |
|
Insulation Clause |
F |
|
Altitude |
≤1000m |
|
Direction of rotation |
Clock-Wise (Facing flywheel) |
|
Protection Clause |
IP23 |
|
Cooling method |
air cooling |
Beijing Avespeed Commercial & Trading Co., Limited is the leading manufacturer and supplier of diesel engines for marine propulsion, marine Gen-sets, stationery Gen-sets and power plant applications in China. AVESPEED manufactures diesel engines with unit output from 150KW to 4500KW, which can be used as propulsion of merchant vessels and special vessels from 1000 to 30000 tons DWT. AVESPEED manufactures marine auxiliary diesel generators with unit output from 150KW to 4500KW and stationery HFO generators with unit output from 500KW to 8000KW.
AVESPEED designs and builds turn-key power plant with an output up to 100MW as base load power plant, peaking power plant or industrial self-captive power plant in cement, textile, mining or oil and gas industries etc. The power fuel can be diesel oil, bio-diesel, heavy fuel oil (HFO) or bi-fuel. AVESPEED has been set up more than 200 heavy fuel oil (HFO) power plant projects in the world in recent years, especially in Nigeria, we have set up more than 60 HFO power plant projects there.
All of our marine diesel engines have achieved type approvals and work test approvals of, CCS, China Ships Inspection Bureau, and China Fishing Ships Inspection Bureau. Many products are rated as "National Grade New Products" and "Industry Brand Products" and awarded with "National Prize for Progress in Science and Technology", Now AVESPEED diesel engines are widely used for deep sea fishery, inshore fishing ships, ocean shipping, inland water navigation, passenger cargo ship transport, harbor tug, engineering ships, enforcement ships, naval auxiliaries etc.
New energy products developed in recent years including natural gas generator sets, biomass generator sets, tyre oil/vegetable generator sets and dual-fuel generator sets with unit output from 50KW to 1000KW.
AVESPEED also involves in the development and manufacture of the crystal silicon (mono and poly) solar panel/module, photovoltaic system, and other photovoltaic products. We supply solar panels ranging from 45W to 290W. AVESPEED's on-grid and off-grid inverters are the sole in China certified by TUV. The PV inverters range from 1KW to 1000KW.
Our products and manufacturing processes fully comply with product safety requirements, including TUV/IEC61215 & 61730, CSA/UL1703, MCS, CE and UKAS. Additionally, we have implemented best practices to protect the environment and conserve energy.
So far, our customers spread dozens of countries and regions in Europe, Middle East, Africa, South America, Southeast Asia and West Asia. AVESPEED is willing to cooperate with relevant famous enterprises and far-sighted, strong-willed and talented people at home and abroad by supplying our high-quality products and excellent service.
